Instructions for use

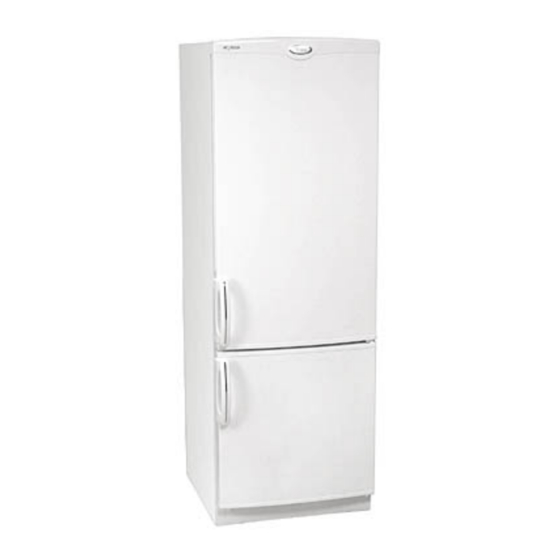

ARC 5200
Whirlpool Switzerland, www.whirlpool.ch
Bauknecht AG, Industriestrasse 36, 5600 Lenzburg, www.bauknecht.ch
Verkauf
Telefon 0848 801 002
Kundendienst
Telefon 0848 801 001
Ersatzteile
Telefon 0848 801 005
Fax 0848 801 017
Fax 0848 801 003
Fax 0848 801 004
verkauf@bauknecht.ch
service@bauknecht.ch
ersatzteilverkauf@bauknecht.ch

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARC 5200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whirlpool ARC 5200

Summary of Contents for Whirlpool ARC 5200

  • Page 1: Instructions For Use

    Instructions for use ARC 5200 Whirlpool Switzerland, www.whirlpool.ch Bauknecht AG, Industriestrasse 36, 5600 Lenzburg, www.bauknecht.ch Verkauf Telefon 0848 801 002 Fax 0848 801 017 verkauf@bauknecht.ch Kundendienst Telefon 0848 801 001 Fax 0848 801 003 service@bauknecht.ch Ersatzteile Telefon 0848 801 005 Fax 0848 801 004 ersatzteilverkauf@bauknecht.ch...

  • Page 2: Refrigerator Compartment

    CB 1C PRODUCT DESCRIPTION SHEET Refrigerator compartment Freezer compartment 1. Rack with adjustable height Rack (if supplied) for ice cube trays or ice packs (depending on model) (according to model) Freezing section • rack inclination is adjustable • one of the racks has a hinged section Ice cube tray that can be flipped up to 10.

  • Page 3: Control Panel

    CB 1C CB 1C CONTROL PANEL Controls may be located internally or externally, depending on the model. For all models, temperature is adjusted by an interior knob. Version with external controls 1. Main ON/OFF button 2. Power ON green indicator LED 3.
  • Page 6 Your new appliance is a combined fridge-freezer exclusively for domestic use. After unpacking the appliance, make sure that can be used the doors shut properly. Any damage must be for freezing fresh and cooked food, making ice reported to your dealer within 24 hours after delivery of the appliance.
  • Page 7 Use the only for storing fresh food and beverages and use the only for storing frozen food, freezing fresh food and making ice cubes. The power cable may only be replaced by an Do not cover or obstruct the air vents of the authorised person.
  • Page 8 Turn the thermostat control knob to the for the internal temperatures; to the for the internal temperatures. Press the appliance “ON” button again (if provided; if not, unplug the appliance from the mains) Position the food as shown in the figure. A Cooked food B .ish, meat C .ruit and vegetables...
  • Page 9 You can use the freezer compartment to freeze food. The amount of fresh food that can be frozen in 24 hours, at an ambient temperature of +25°C, is indicated on the data plate. Turn the thermostat to position 2-3. If the appliance is provided with a freeze button , press it (yellow LED lights up).
  • Page 10 .ill the ice cube tray 3/4 with water and place it at the bottom of the freezer compartment. To speed up the ice making process, place the tray on the bottom of the first drawer (as shown in the figure) and not on the ice pack rack (if provided).
  • Page 11 Clean the inside of the freezer compartment when defrosting. Periodically clean the inside of the refrigerator compartment with a sponge dampened in warm water and/or neutral detergent. Rinse the interior and dry with a soft cloth. Clean the outside with a damp cloth. Do not use abrasive products, scourers, stain-removers (e.g.
  • Page 12 Is there a power failure? Is the appliance in contact with other furniture Is the plug properly inserted in the socket? or objects? Is the double-pole switch on? Are the pipes at the back touching or Has the fuse blown? vibrating? Is the power cord in perfect condition? Has the compressor locking pin been...
  • Page 13 Install the appliance away from heat sources. Install the appliance in a dry, well-ventilated place. Ensure that the appliance is level. Adjust the front feet if necessary. Leave at least 5 cm clearance above the appliance. The sides of some models are extended at the rear so the appliance can be placed directly against the rear wall.
  • Page 14 2-pin, side earth type. If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.
