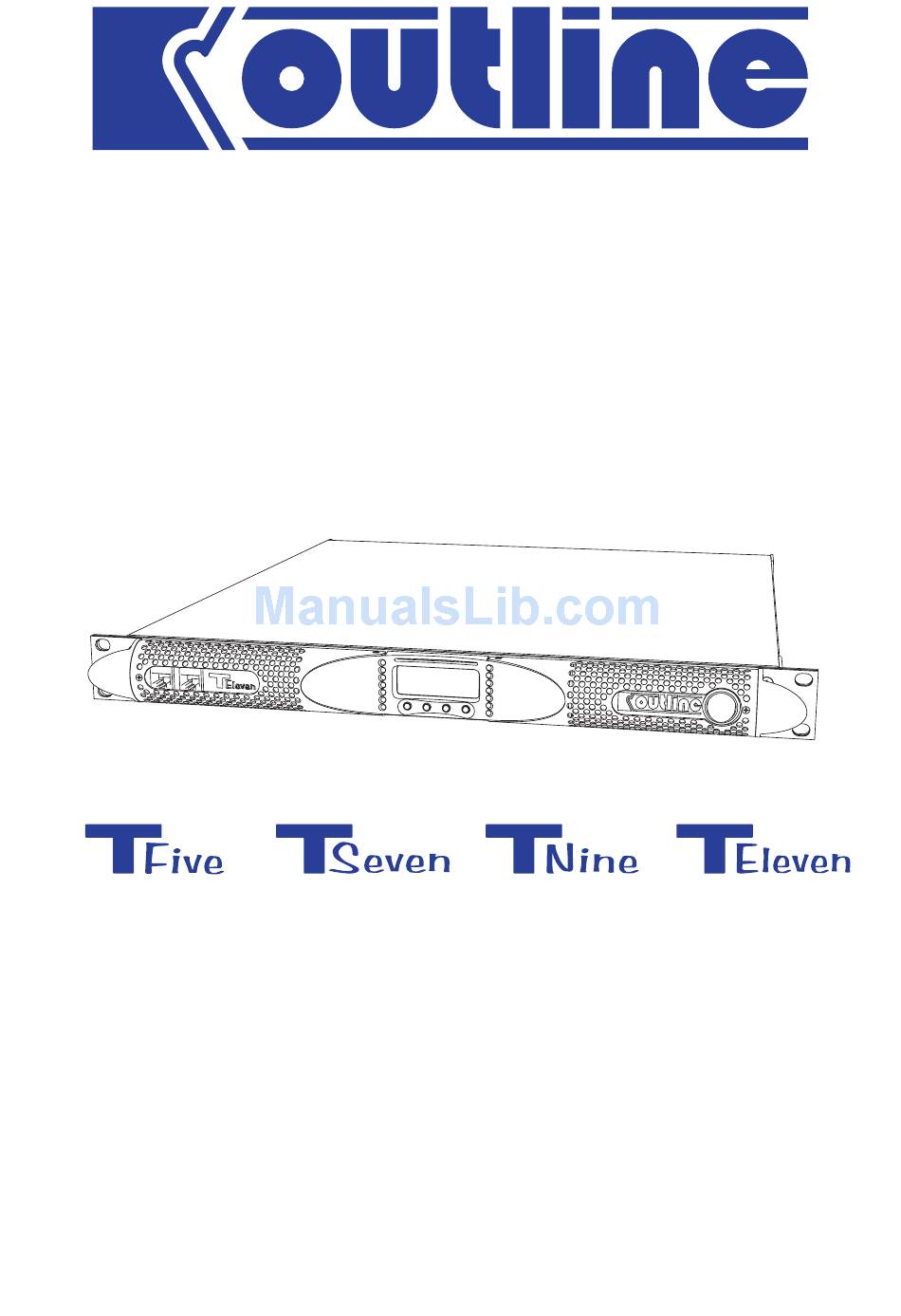

- Page 1 2 CHANNEL POWER AMPLIFIER The Sound of Big Ideas...
- Page 2 The Sound of Big Ideas This page left intentionally blank Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it...
-
Page 3: Table Of Contents
Chapter 6: Assistance ....................................22 Chapter 7: Technical notes ..................................22 7.1 General Dimension....................................22 7.2 Block diagram................................23 7.3 Technical specifications................................24 Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 4: Important Safety Instructions
Approvals The Outline T Series is installed according to the Canadian Electrical Code or National Electrical Code, as applicable. T Eleven - T Nine - T Seven This equipment has been tested and found to compliant by Competent Body (Directive 89/336/EEC-EMC) pursuant to the product family standard for audio professional use: EN 55103-1 and EN 55103-2 standard );... -
Page 5: Safety Rules
It is the user's responsibility to use suitable speakers with the amplifier and to use them in a sensible way that will not cause damage. Outline will not be responsible for damaged speakers. -
Page 6: Introduction
The Sound of Big Ideas Introduction Outline is a leading company in the field of high efficiency audio power management. The totally new DIGAM (DIGital AMplifier) technology has changed the way the world looks at professional audio amplification. No other amplifiers come close for applications demanding high power and long term reliability. -
Page 7: Chapter 1: Installation And Operation
Every Outline amplifier is completely tested and inspected before leaving the factory and should arrive in perfect condition. If you find any damage, notify the shipping company immediately. Be sure to save the carton and all packing materials for the carrier's inspection. -
Page 8: Mounting
MAINS GROUND other T models MAINS Vac GND figure 1.4.1 Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 9: Connecting Inputs
XLR female connector XLR male signal source output pin1 - GND XLR male connector pin 3 - IN(-) Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 10: Stereo Mode
(also oscilloscope probes) in you are bench testing. OUT2 OUT1 LINK ON OFF stereo mode bridge mode figure 1.6.1 Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 11: Connecting Remote Control
8 pin modular Pin Layout plug ID selection example ID = 28 Vext 485+ 485- figure 1.7.1 Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 12: Aux Input Ch1/Ch2
Relays output 24V outputs to command external equipment; alarm relays output normally closed, open for reporting amplifier faults 1.10 AES/EBU Input On DSP equipped amplifiers CH2 is the AES/EBU input. Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 13: Chapter 2: Setup And Settings
2.1 Introduction The figure below shows the front panel of Outline T Series. The front panel controls, in conjuction with the graphic LCD display above the buttons, give to the user the total control and detailed information about the status of the amplifier. -
Page 14: The Main Menu
* Available only with optional DSP board ** Available only with optional Ethernet board figure 2.3.2 Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 15: Output Attenuation
2,75 3,16 15,6 1,88 1,81 1,96 2,23 values of maximum balanced input values of sensitivity (Vrms) Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 16: Input Select
Clip Limiters unless their function is taken over by external devices, such as digital system controllers. In such cases it is mandatory, to properly adjust parameters in the external device Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 17: Gate Ch1-Ch2
C1+2 Zload=8.0 figure 2.3.9 In "C1+2" mode the screen shows the output values in bridge connection. Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 18: Temperature
The Recall local preset command loads and applies one of the stored presets, choosen through an identical dialog. Please note that all the current amplifier settings are overwritten! Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 19: Hardware Info
"OK" written is displayed, the frequency system clock is right · Power Supply primary KBUS (Vboost) · Clock frequency Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 20: Lcd Contrast
* Available only with optional DSP board 2.3.23 Service The key to activate this function is factory reserved. Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 21: The Smartcard Function
You can select the desired option by pushing up or down button and "ok" to activate it. The option "Recall local preset” does not appear if the smartcard is blank. Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 22: Chapter 3: Protection
An ultrasonic network decouples RF from the outputs and keeps the amplifier stable with reactive loads. Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 23: Chapter 4: User Maintenance
There are no user-serviceable parts in your amplifier. Refer servicing to qualified technical personnel. In addition to having an in-house service department, Outline supports a network of authorized service centers. If your amplifier needs repair, contact your Outline dealer or distributor, or contact the Outline Technical Service department, to obtain the location of the nearest authorized service center. -
Page 24: Chapter 5: Warranty
Outline premises. -
Page 25: Block Diagram
OVERCURRENT PANEL CONTROL CONTROL MAINS AUXILIARY SWITCH CURRENT SUPPLY SHUT MONITOR DOWN Vaux OK figure 7.1.2 Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... -
Page 26: Technical Specifications
User selectable maximum output power User selectable maximum mains current draw Remote control - diagnostic Option DSP/Ethernet Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it... - Page 27 Professional amplifiers T Series This page left intentionally blank Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy Tel. +39-30-3581341 Fax +39-30-3580431 — Web Site: www.outline.it E-Mail: info@outline.it...
- Page 28 For this reason, any current Outline product may differ is some aspect from its description, but will always equal or exceed the original design specifications unless otherwise stated.
