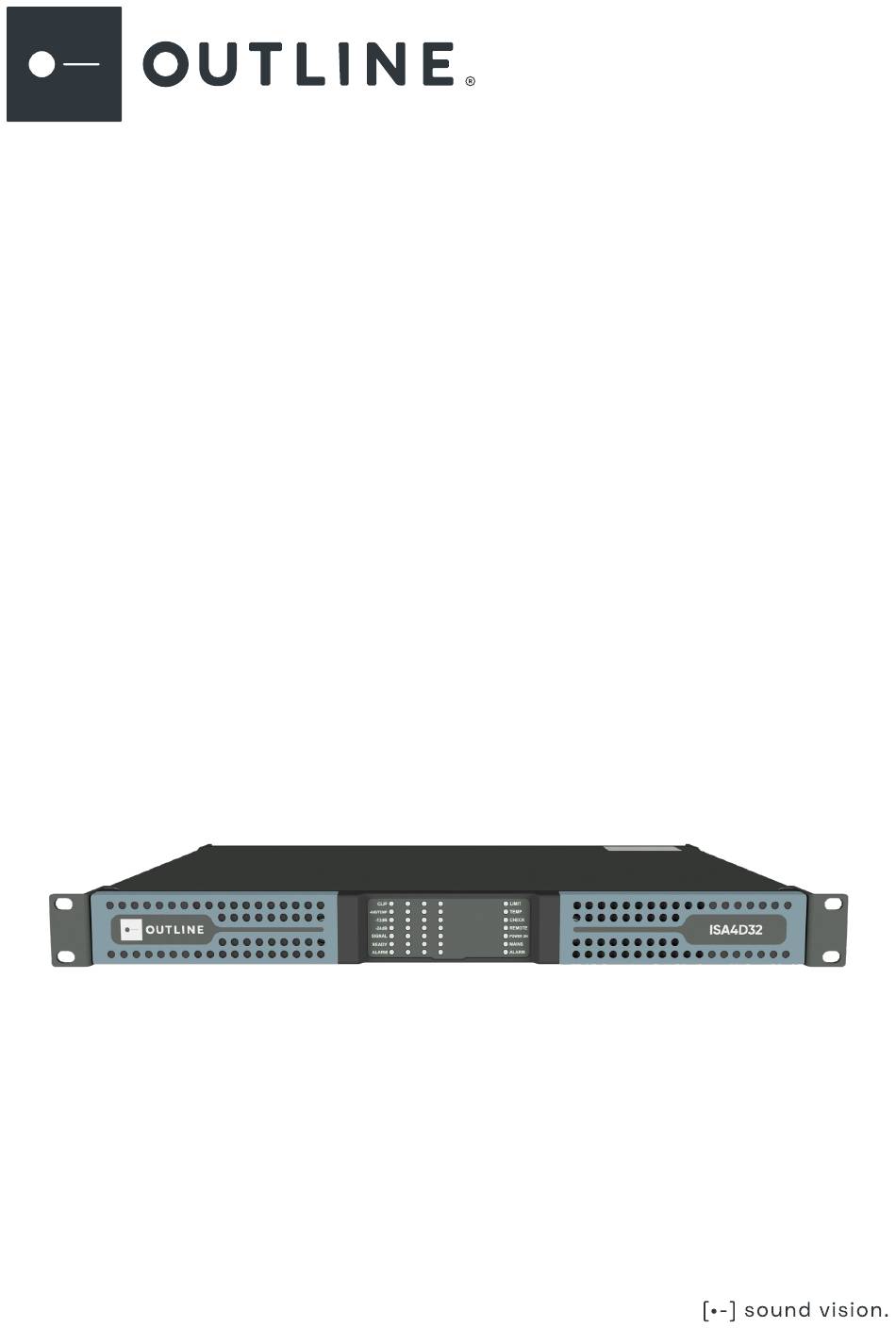

- Page 1 Operating Manual ISA 4D32 Integrated System Amplifier DO000315.00...
- Page 2 ISA 4D32 Operating Manual Version: 0202 Release date: 2024/09/09 © Outline 2024. All rights reserved. Refer all servicing to qualified personnel, through your Outline dealer.
-
Page 3: Safety Warnings
Important Safety Instrunctions. Safety Warnings. Common symbols and meanings THE TRIANGLE WITH THE LIGHTNING BOLT IS USED TO ALERT THE USER TO THE RISK OF ELECTRIC SHOCK. CLASS3 WIRING THE TRIANGLE WITH THE EXCLAMATION POINT IS USED TO ALERT THE USER TO IMPORTANT OPERATING OR MAINTENANCE INSTRUCTIONS. - Page 4 DISCONNECT THE AC MAINS SOURCE BEFORE ATTEMPTING TO CLEAN ANY PART OF THE CLASS3 AMPLIFIER WIRING OUTLINE SUGGESTS TO PLUG THE ISA4D32 TO A 16 A RATING, C OR D CURVE, 10 kA SECTIONING CLASS3 BREAKER. WIRING OUTPUT TERMINALS ARE HAZARDOUS: WIRING...
- Page 5 The wide blade or the third prong are provided for your safety. If the provided plug Warranty and Technical Service This product is covered by a limited warranty. This Outline product contains no user-serviceable parts. All warranty repairs must be carried by a CLASS3 certified technician.
- Page 6 Economic Development Canada’s licence-exempt and electronic equipment by handing it over to an RSS(s). approved reprocessor, or by returning it to Outline for Operation is subject to the following two conditions: reprocessing. For more information about where you 1)This device may not cause interference.
- Page 7 EC Declaration Of Conformity We declare that under our sole responsibility the products: Model Name: ISA4D32 Intended use: Professional Audio Amplifier Are in conformity with the provisions of the following EC Directives, including all amendments, and with national legislation implementing these directives: 2014/35/EU Low Voltage Directive 2014/30/EU...
-
Page 8: Preliminary Operations
Preliminary Operations. Package list. • After unpacking the unit, check very carefully for any 1x Phoenix MC 1,5/4-ST-3,81 - 1803594 plug • damage. If any damage is found, please notify your 2x Phoenix MC 1,5/12-ST-3,81 - 1803675 plug • dealer. 1x Phoenix PC 5/8-STF1-7,62 - 177891 plug •... -
Page 9: Ac Mains Supply
Cleaning. Exposing the Control Panel Use a dry cloth for cleaning the chassis and the front panel. Air filter cleaning should be scheduled in accordance with the dust levels in the amplifier’s operating environment. In order to clean the vent filters remove the front cover by firmly gripping the outermost silver panels and pull them outwards. -
Page 10: Remote On/Off
Remote On/Off. Remote ON/OFF is available through the dedicated exceeding 28 V may damage the input circuitry. terminals on the rear panel. The couple of terminals act depending on the actual Both terminals respond to the differential voltage state of the amplifier, in accordance with the following between the contacts: a voltage difference in the table. -
Page 11: Signal Grounding
Controller is a software application that Ethernet connection. The port labelled Ethernet is designed to remotely Outline recommend the use of Ethernet Cat5 straight control the amplifier via an Ethernet connection through through–patch–cables with pin/pair assignments TIA/ a personal computer and ArmoníaPlus software. - Page 12 Outline recommends to use the built-in HPF (High Pass are available 35 Hz and 70 Hz. Filter) when the amplifier is set to drive a distributed Lo-Z 2 Ω...
- Page 13 Networking. ISA4D32 amplifiers support star network topology via the Ethernet port and Dante /AES67 dedicated AoIP port. IP addressing. Factory default network settings are DHCP/AutoIP. network address (of the type 169.254.x.y – 172.31.*.* In order for the amplifier to self-configure when for the secondary network if present –...
- Page 14 ArmoníaPlus. ArmoníaPlus is the default configuring interface Download ArmoníaPlus for free from the dedicated that allows system setting and customization of the website: https://www.powersoft.com/en/software/ ISA4D32 amplifiers. armoniaplus/ Armonía can be installed on a PC running Windows (XP SP3 and higher). Input selection and backup policy.
-
Page 15: Front Panel
Front panel. Control Panel Operating Mode LEDs (ON/STANDBY) Power pushbutton Armonia Callback pushbutton Soft Reset pushbutton Hard Reset pushbutton Self Check pushbutton CH1, CH2, CH3, CH4 attenuators LED Panel Channel Status LED meters System Status LEDs Serial Port Reserved for service operations... -
Page 16: Rear Panel
Rear panel. AC Mains Connector ground IEC C19 mains Output section Output connector Output configuration Dip Switches Single Ended (Flipped view) Low-Z High-Z 100 V 70 V HPF @ HPF @ 35 Hz 70 Hz Ch 4 • Ch 3 Ch 2 •... - Page 17 Input Ch 1 Ch 2 Ch 3 Ch 4 Remote Level Input section Ch 1 Remote Level connector (Or Master) Ch 2 Line Input connector Ch 3 Ch 4 Remote On/Off Remote On/Off - Configuration Dip Switches Remote On/Off connector (Phoenix MC1,5/4-ST-3,81 1803594) System Configuration Dip Switches Input Gain Selection...
- Page 18 Network Connector RJ45 pinout 1 2 3 4 5 6 7 8 Color code (TIA/EIA-568-B) Ethernet and Dante ports ORANGE / WHITE Ethernet port (RJ45) ORANGE Dante port (RJ45) GREEN / WHITE BLUE BLUE / WHITE GREEN BROWN / WHITE BROWN...
- Page 19 LED charts. LED bar, system status. LED bars, signal metering. Color Name Warning Color Sig. Warning Metering Lighting Description Lighting Description ORANGE User Limiter - ORANGE Limit Flashing Breaker Save Enabled YELLOW -6 dB Solid ON Thermal warning Solid ON Breaker Save Thermal protection engaged...
-
Page 20: Control Panel
Control panel. The push-buttons are disabled when connected to Label Type Action Description Armonía. Power Pushbutton press 3 seconds Toggle system ready/standby mode * Keep pressed both the SOFT RESET button and the Call Pushbutton press Highlight the HARD RESET button for at least 3 seconds to completely amplifier in reset the amplifier to its factory default configuration (this the Armonia... -
Page 21: Overall Dimensions
Overall dimensions. Dimensions 442 mm 19.0 in... - Page 22 ISA4D32 Technical specifications. PERFORMANCE Number of channels Single channel mode: 800 W @ 2 Ω, 600 W @ 4 Ω, 600 W @ 8 Ω Output power (per channel) Bridge mode: 1600 W @ 4 Ω, 1200 W @ 8 Ω Max output voltage 100 V peak Max output current...
- Page 23 SHIPPING DETAILS Shipping dimensions (H x W x D) 11 x 570 x 550 mm – 3/8″ x 22 1/2’’ x 21 5/8’’ Shipping weight 9 kg – 19.8 lb Order code O1ISA4D32 Taric number (HS code) 8518.50.00...
- Page 24 OUTLINE S.R.L. Via Leonardo Da Vinci, 56 - 25020 Flero (Bs) - Italy tel. +39 030 35 81 341 - www.outline.it - info@outline.it VAT IT02902720982...
