2.3 Remote control (Use option)

Connecting the remote keypad to the inverter unit with a dedicated interconnect cable
and a connector (optional) makes it possible to operate the inverter from a distant
point up to 10m from it.
● Never connect the unit to any inverter other than a VF-AS1/PS1/MB1
series inverter or any communication device. Do not use any cable other
Prohibited than an optional interconnect cable designed specifically for the unit.
If the correct cable was not used, this might cause the unit to break down
and result in an electric shook or fire.

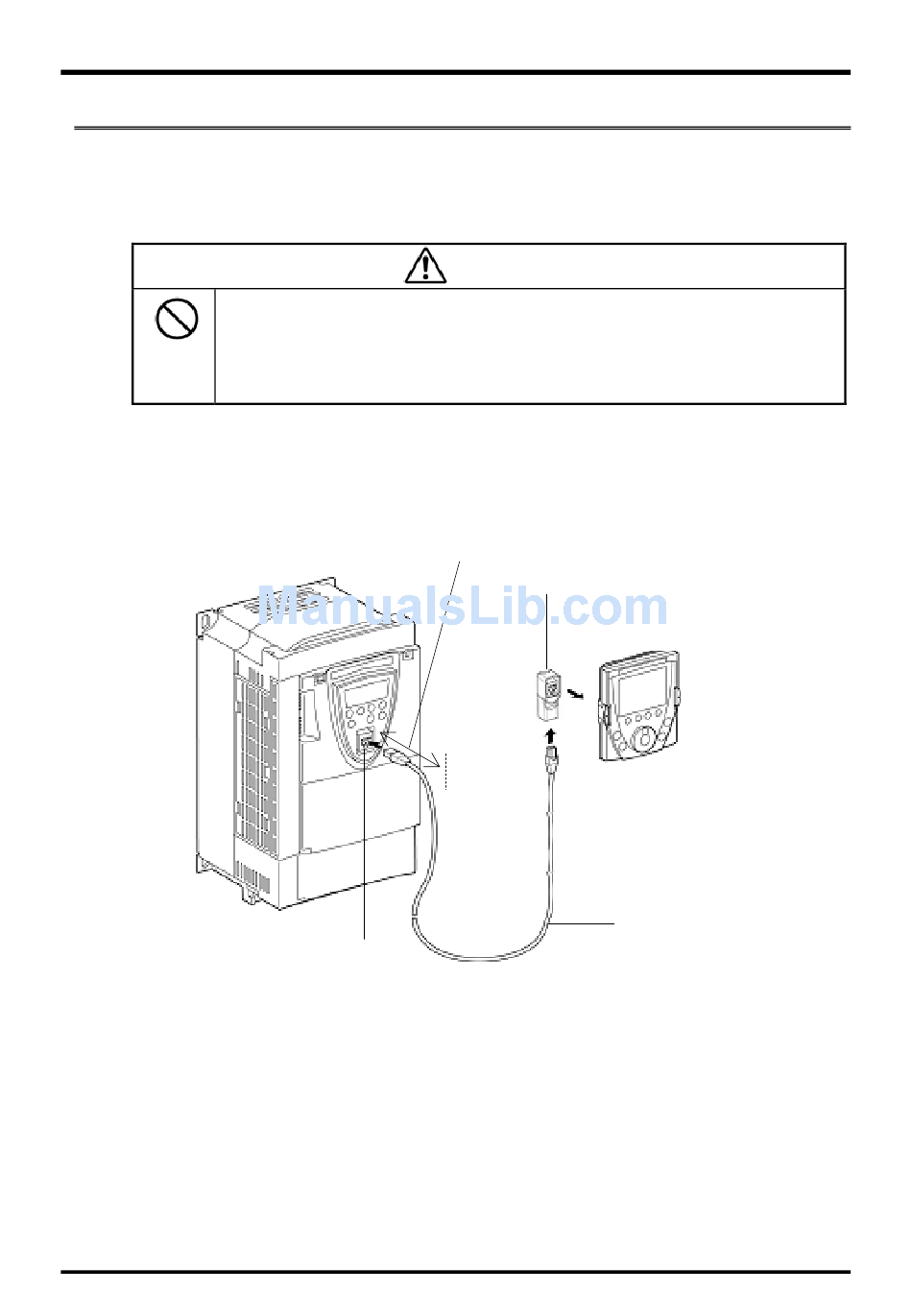

Turn off the inverter, as shown in the figure below.
*Below is installation drawing for VF-AS1/PS1
<Inverter unit>
*Leave a space of 60mm or more
for the interconnect cable.
Serial RS485
connector
2. Installing the LCD remote keypad
Warning
Connector (optional)
<Remote keypad>
*The pin configuration of the dedicated interconnect
cable is different from that of any other commercially
available cable.
Therefore, be sure to use the dedicated interconnect
cable.
2-3
Dedicated interconnect
cable (optional) *
