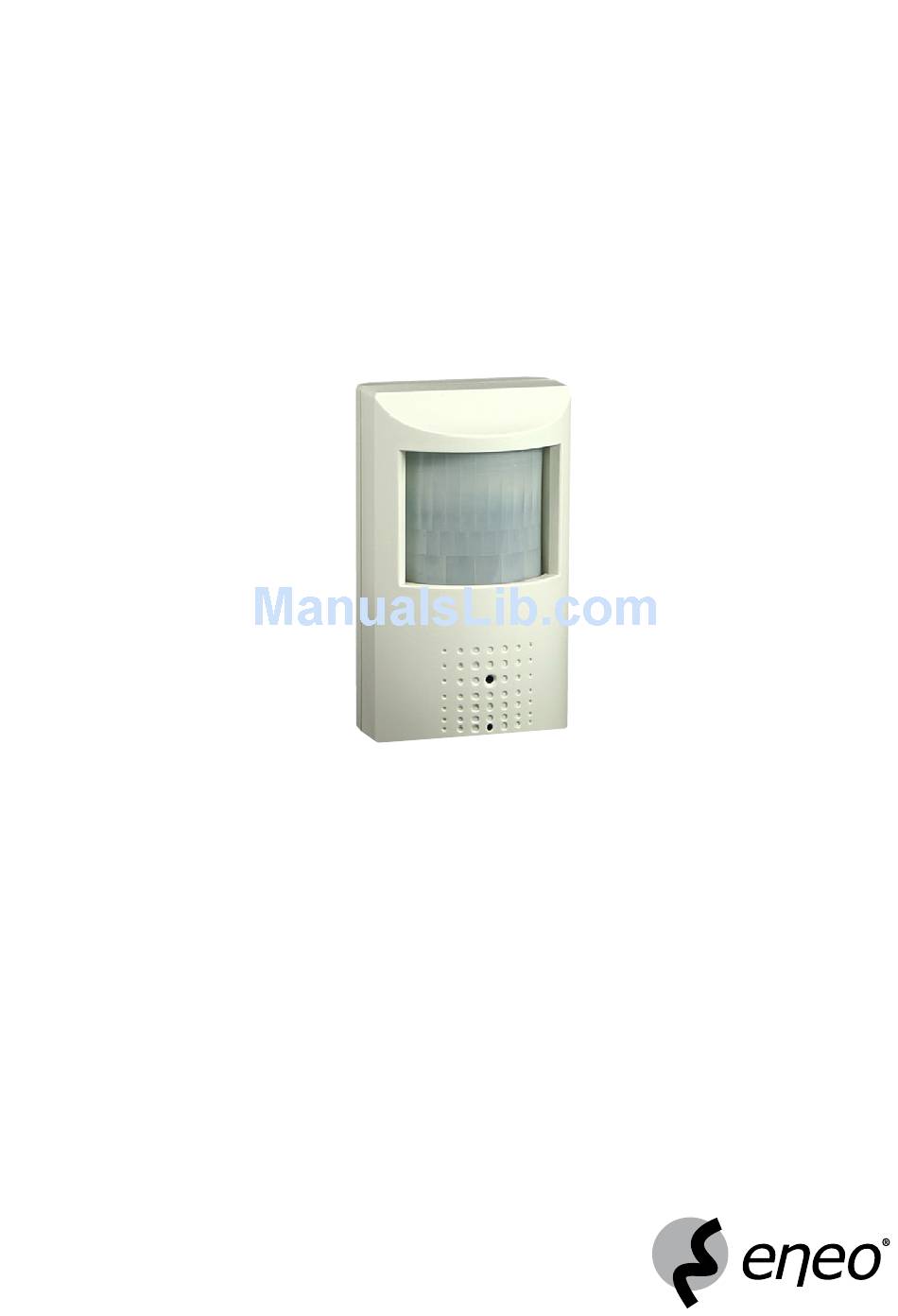

- Page 1 Instruction Manual Hidden CCD Camera VK-1321/PIR (B&W), VKC-1338/PIR (Colour)
-
Page 2: Table Of Contents
Contents Safety Instructions ..................3 Description ....................4 Installation ..................... 5 Wiring Instructions ..................6 PIR Detector Board Installation and Descriptions ..........7 Specifications ....................0 Dimensional Drawings ................. ... -
Page 3: Safety Instructions
1. Safety Instructions • R ead these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • P rotect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. • N ever operate the camera outside of the specifications as this may prevent the camera functioning. • D o not operate the cameras beyond their specified temperature, humidity or po- wer ratings. Operate the camera only at a temperature range of -0°C to +50°C and at a humidity of max. 90%. • T o disconnect the power cord of the unit, pull it out by the plug. Never pull the cord itself. • P ay attention when laying the connection cable and observe that the cable is not subject to heavy loads, kinks, or damage and no moisture can get in. • T he warranty becomes void if repairs are undertaken by unauthorized persons. Do not open the camera housing. -
Page 4: Description
2. Description This B/W (Colour) HIDDEN CCD Camera uses high sensitive /3” interline transfer CCD Image Sensor (CCD = Charge Coupled Device), and all state circuitry which provides extremely long life and high reliability. This Camera offers excellent image quality with low lag and high burn resistance, and is not subject to distortions from magnetic fields. Highly resistance to shock and vibration, and easy to install this Camera is a very good choice for your B/W (Colour) CCTV system. • For Wall Mount • Resolution of 600 Horizontal Lines (VK-1321/PIR, # 91989) Resolution of 470 Horizontal Lines (VKC-1338/PIR, # 91991) • Built-in Pinhole Lens F.0/3.7mm • Electronic Shutter Control (ESC) (VK-1321/PIR, # 91989) Automatic Shutter Control (AES) (VKC-1338/PIR, # 91991) • Automatic Gain Control (AGC) • Automatic White Balance (AWB) (VKC-1338/PIR, # 91991) • Internal Synchronization • PIR Sensor Function • Supply Voltage: VDC • Easy installation... -
Page 5: Installation
3. Installation . Secure the bracket to the wall with screws (included). . Attach the Camera Case to the bracket. -
Page 6: Wiring Instructions
3. Adjust the vertical and horizontal angles by loosening screws (A&B) and by turning the bracket vertically and horizontally. 4. Wiring Instructions . Connect the coaxial cable between the camera and the monitor using a 75ohms coaxial cable. . Insert the AC plug into the AC power socket and the DC plug to the DC Jack. Monitor to 4VDC Note: AC Adapter Sold separately (see Accessories) -
Page 7: Pir Detector Board Installation And Descriptions
5. PIR Detector Board Installation and Descriptions Output Terminals Sensitivity Adjustment Time Adjustment Light Control Pulse Count Recording Control LED Selector Options Description . LED Selector A. T op + Center w/black cap: Upon walk-testing: Light blinking (disadvantages: Easy to identify as a security system.) B. C enter + Low w/black cap: No light blinking (3 pins: Top, Center, Bottom) while detecting. (advantages: less obvious) . Sensitivity Adjustment A. T o raise sensitivity: Turn clockwise to detect longer distance and wider pattern. High B. T o lower sensitivity: Turn counter clockwise „VR”... - Page 8 Options Description 4. A larm control, Light A. T op + Center w/black cap: Operate with „VR” control or Recording to adjust time. (To set the relay output of the control (N.O or N.C) Light control or Recording control, the time is selected by individual preference or application. B. C enter + Bottom w/black jumper: Relay output ( 3 pins: Top, Center, can be set for Security control panel for only Bottom) seconds. Note: N.C./N.O. relay output current: 1A 125VAC, 2A 30VDC. 5. Pulse Control A S et to „ONCE” for instant reaction when PIR detects someone: and either the „alarm or Once or twice Security control panel” or „Recording control”...
- Page 9 00° Top view Side view feet feet • Wide angle lens up to 00°, coverage areas to 30x30 feet • Provide 64 beams in 3 layers...
-
Page 10: Specifications
6. Specifications Type VK-1321/PIR VK-1338/PIR Art, No. 91989 91991 System Black/white Colour Video standard CCIR Sensor size /3” Imager CCD, Sony Super HAD Interline Transfer Synchronization Internal Signal-to-noise ratio 4dB Gamma correction 0.45 Horizontal resolution 600 TVL 470 TVL Sensitivity 0.3Lux at F.; .0Lux at F. (Videor (at 50% video signal) 0.65Lux at F.0... - Page 11 Illumination Serial interfaces External connections Video (BNC), VDC (DC plug) Mounting Wall mount (bracket included) Protection rating IP0 Supply voltage VDC, (+/-0%) Power consumption .44W .5W Temperature range (operation) -0° ~ +50°C Housing material Plastic Housing Indoor Integrated wall mount Hidden cable management Sunshield Window heater Clear Shield Colour (housing) Light grey Dimensions See drawing...
-
Page 12: Dimensional Drawings
7. Dimensional Drawings Dimensions: mm eneo is a registered trademark of Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße · 633 Rödermark/Germany Technical changes reserved Tel. +49 (0) 6074 / -0 · Fax +49 (0) 6074 / -00 www.videor.com © Copyright by Videor E. Hartig GmbH 0/00...
