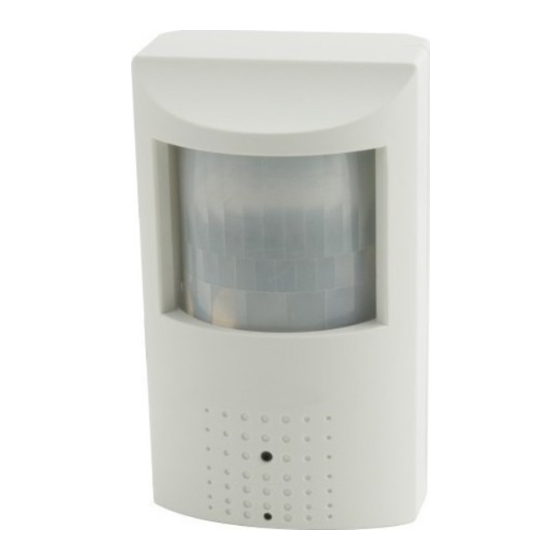

- Page 1 Instruction Manual Hidden CCD Camera VK-1321/PIR (B&W), VKC-1338/PIR (Colour)
-
Page 2: Table Of Contents
Contents Safety Instructions ..................2 Description ....................3 Installation ..................... 4 Wiring Instructions ..................5 PIR Detector Board Installation and Descriptions ..........6 Specifications ....................9 Dimensional Drawings ................. 11 1. Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. -
Page 3: Description
• Pictures including bright spotlights will cause perhaps vertical lines (smear) or soft edges (blooming) on the monitor display. This happens most probably in automatic shutter mode (AES). This is not a defect but an effect caused by the CCD sensor. •... -
Page 4: Installation
3. Installation 1. Secure the bracket to the wall with screws (included). 2. Attach the Camera Case to the bracket. -
Page 5: Wiring Instructions
3. Adjust the vertical and horizontal angles by loosening screws (A&B) and by turning the bracket vertically and horizontally. 4. Wiring Instructions 1. Connect the coaxial cable between the camera and the monitor using a 75ohms coaxial cable. 2. Insert the AC plug into the AC power socket and the DC plug to the DC Jack. Monitor to 24VDC Note: AC Adapter Sold separately (see Accessories) -
Page 6: Pir Detector Board Installation And Descriptions
5. PIR Detector Board Installation and Descriptions Output Terminals N.C. N.O. PULSE Pulse Count LED Selector Light Control Recording Control Time Adjustment Sensitivity Adjustment Options Description 1. LED Selector A. Top + Center w/black cap: Upon walk-testing: Light blinking (disadvantages: Easy to identify as a security system.) B. - Page 7 Options Description 4. Alarm control, Light A. Top + Center w/black cap: Operate with „VR2” control or Recording to adjust time. (To set the relay output of the control (N.O or N.C) Light control or Recording control, the time is selected by individual preference or application.
- Page 8 100° Top view Side view feet feet • Wide angle lens up to 100°, coverage areas to 30x30 feet • Provide 64 beans in 3 layers...
-
Page 9: Specifications
6. Specifications Model VK-1321/PIR VKC-1338/PIR EDP No. 91989 91991 Automatic white balance Supplied (AWB) Imager 1/3“ Sony Super HAD Interline Transfer CCD Picture elements Approx. 440,000 (H) 752 x (V) 582 System CCIR CCIR/PAL Synchronization Internal Sensitivity 0.65Lux at F2.0 / 5.6Lux at F2.0 /... - Page 10 Model VK-1321/PIR VKC-1338/PIR EDP No. 91989 91991 Special features PIR sensor function. NO/NC relay contact output (125VAC/1A, 30VDC/2A resisitive), adjustable switching duration: 2 ~ 40sec. sensor field angles: 100° horizontal / 45° vertical, detection range: up to 10m Accessories EDP No.
-
Page 11: Dimensional Drawings
7. Dimensional Drawings Dimensions: mm eneo ® is a registered trademark of Videor Technical E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR TECHNICAL E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark/Germany Technical changes reserved Tel. +49 (0) 60 74 / 888-0 · Fax +49 (0) 60 74 / 888-100 www.videortechnical.com...
