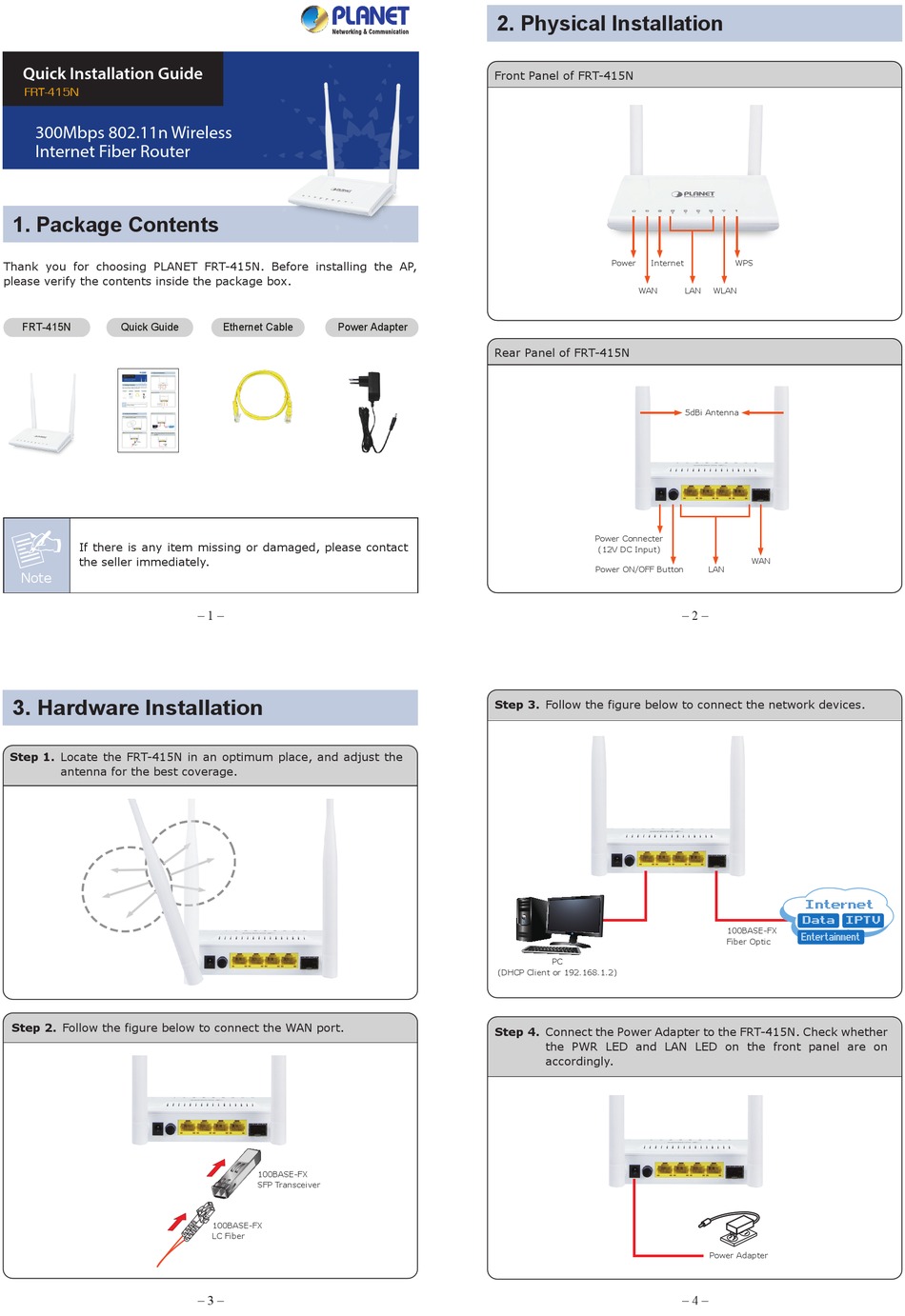

Quick Installation Guide
FRT-415N
300Mbps 802.11n Wireless
Internet Fiber Router
1. Package Contents
Thank you for choosing PLANET FRT-415N. Before installing the AP,
please verify the contents inside the package box.
FRT-415N
Quick Guide
If there is any item missing or damaged, please contact
the seller immediately.
Note
3. Hardware Installation
Step 1. Locate the FRT-415N in an optimum place, and adjust the
antenna for the best coverage.
Step 2. Follow the figure below to connect the WAN port.
Ethernet Cable
Power Adapter
– 1 –
100BASE-FX
SFP Transceiver
100BASE-FX
LC Fiber
– 3 –
2. Physical Installation
Front Panel of FRT-415N
Power
Internet
WAN
Rear Panel of FRT-415N
Power Connecter
(12V DC Input)
Power ON/OFF Button
Step 3. Follow the figure below to connect the network devices.
PC
(DHCP Client or 192.168.1.2)
Step 4. Connect the Power Adapter to the FRT-415N. Check whether
the PWR LED and LAN LED on the front panel are on
accordingly.
WPS
LAN
WLAN
5dBi Antenna
WAN
LAN
– 2 –
Internet
Data IPTV
100BASE-FX
Entertainment
Fiber Optic
Power Adapter
– 4 –
