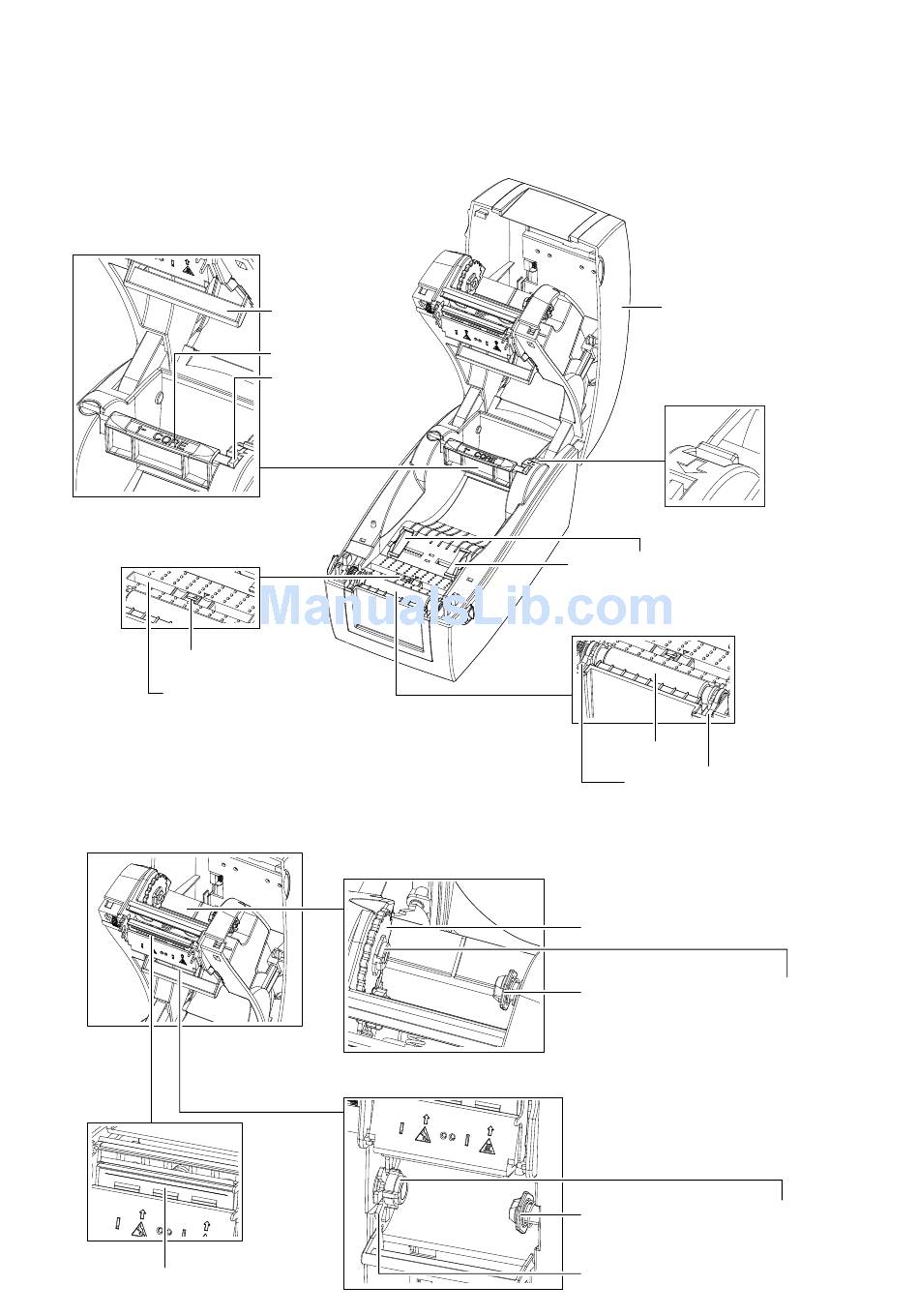

The Internal View Of Printer
LABEL SUPPLY MODULE
LABEL SENSOR MODULE
LABEL SENSOR
GUIDE TRACK
The Printing Mechanism
PRINT HEAD
PAPER PRESS BAR
LABEL SUPPLY HUB
RELEASE CATCH
Release catch for opening
the label supply hub
RIBBON REWIND MECHANISM
RIBBON SUPPLY MECHANISM
LABEL GUIDES
PLATEN MODULE
RIBBON REWIND WHEEL
HOLDER OF RIBBON REWIND CORE
HOLDER OF RIBBON SUPPLY CORE
RIBBON SUPPLY WHEEL
4
TOP COVER
RELEASE CATCH
Release catch for closing
the printer cover
PLATEN
PLATEN LOCKERS
