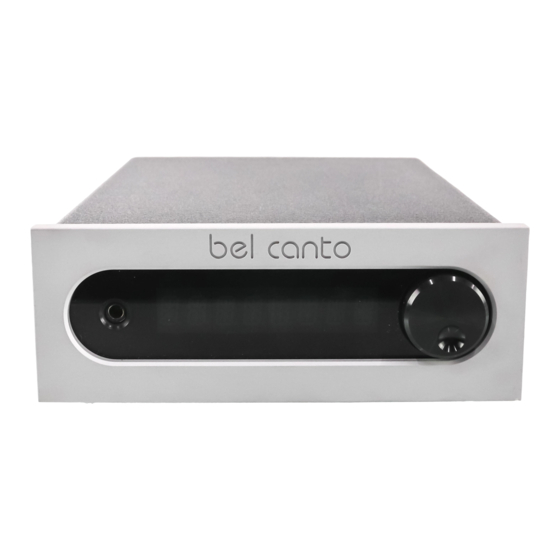

Summary of Contents for Bel Canto e.One series C7R
- Page 2 Bel Canto Design Limited. Bel Canto Design Limited assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Trademarks used in this publication: Bel Canto and the Bel Canto logo are registered trademarks of Bel Canto Design Limited.
- Page 3 Explanation of symbols used in this manual or on the TO COMPLETELY DISCONNECT THIS APPARATUS rear/underside of the apparatus: FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. The Lightning Flash with arrowhead symbol within an equilateral triangle is intended to THE MAINS PLUG OF THE POWER SUPPLY CORD alert the user to the presence of uninsulated SHALL REMAIN READILY ACCESSIBLE.
- Page 4 Always ensure the fuse cover is fitted. If the fuse cover is This appliance is fitted with a non-rewireable 10 amp missing do not use the plug. Contact your Bel Canto mains plug. The plug contains a 10 amp fuse. If the fuse retailer to obtain a replacement fuse cover.
- Page 5 Bel Canto products are automatically covered by a 90 day factory warranty that covers all internal parts and labor. Register online (http://www.belcantodesign.com/Belcanto_Warranty.html) within 30 days of purchase from an authorized dealer to automatically extend your warranty for 2 years starting from the date of purchase. If you do not have web access, please contact your dealer for assistance.
- Page 6 The C7 delivers 120 watts into 4 ohm loads per channel or 60W @ 8 ohms per channel. All Bel Canto e.One amplifiers are gain matched for easy mixing in system building, multi-channel and vertical bi-amplification applications.
- Page 7 Front Panel Control Knob: Input Selection Mode: The control knob is a continuously rotating control Pressing the control knob in briefly will toggle into with a push-switch function. Always push the button the input selection mode. The selected input will be with your finger in the direct center of the knob.
- Page 8 Make your selection by VOL+: Increases the volume setting. This will Punch pressing the ENTER key. Through to any Bel Canto unit in Variable Output mode. The display will show the volume level while changing. VOL-: Decreases the volume setting. This will Punch Through to any Bel Canto unit in Variable Output mode.
- Page 9 Mute: Soft Mute is indicated by the word SOFT overwritten on the volume level display. Hard mute over- writes the level display with MUTE. The Mute function will Punch Through to any Bel Canto unit set in Variable Output mode. Number Buttons: Use for direct input selection.
- Page 10 To enter Tuner Mode, either press ‘Tuner’ on the remote 3. RSSI: Received Signal Strength Indicator, on a scale of or press and hold the control knob button in for 2 -3 1-100, over 40 is necessary for a good stereo signal. Less seconds.
- Page 11 C7 as an audio converter Fuse Drawer with 5 amp/250V slow blow 5mm x • enumerated as Bel Canto USB 2496 when using 20mm fuse. Windows 98 or later and any version of Macintosh OSX. IEC power cord jack: Connect the supplied or a •...
- Page 12 Volume Control Punch Through The Volume Up, Down and Mute functions on the remote control will affect any Bel Canto unit in Variable Output mode regardless of whether PRE, DAC, CD or TUNER is selected. It is recommended that only the device with volume control closest to the power amps be in Variable Output mode.
- Page 13 Power Output 1% THD: 120W @ 4 ohms, 60W @ 8 ohms per channel Minimum Load: 3 ohms per channel Peak Output Current: 30 amperes Frequency Response: +/-3 dB 1.5Hz-90kHz, 4 ohm load THD+N: 0.003% 1W, 1kHz, 4 ohms IMD (CCIF): 0.0003%, 1W, 14:15kHz, 4 ohms Output noise: <50uVRMS A-weighted 10Hz-20kHz...
- Page 14 EN 55013:2001 + A1:2003 + A2:2006 EN 55020:2007 EN 61000-3-2:2006 EN 61000-3-3:1995 + A1:2001 + A2:2005 EN 60065:2002/A12:2011 Manufacturer: Bel Canto Design, Ltd. 221 1 Street North Minneapolis, MN 55401 USA The equipment identified here conforms to the Directive(s) and Standard(s) specified above.
- Page 15 version 2.0...
