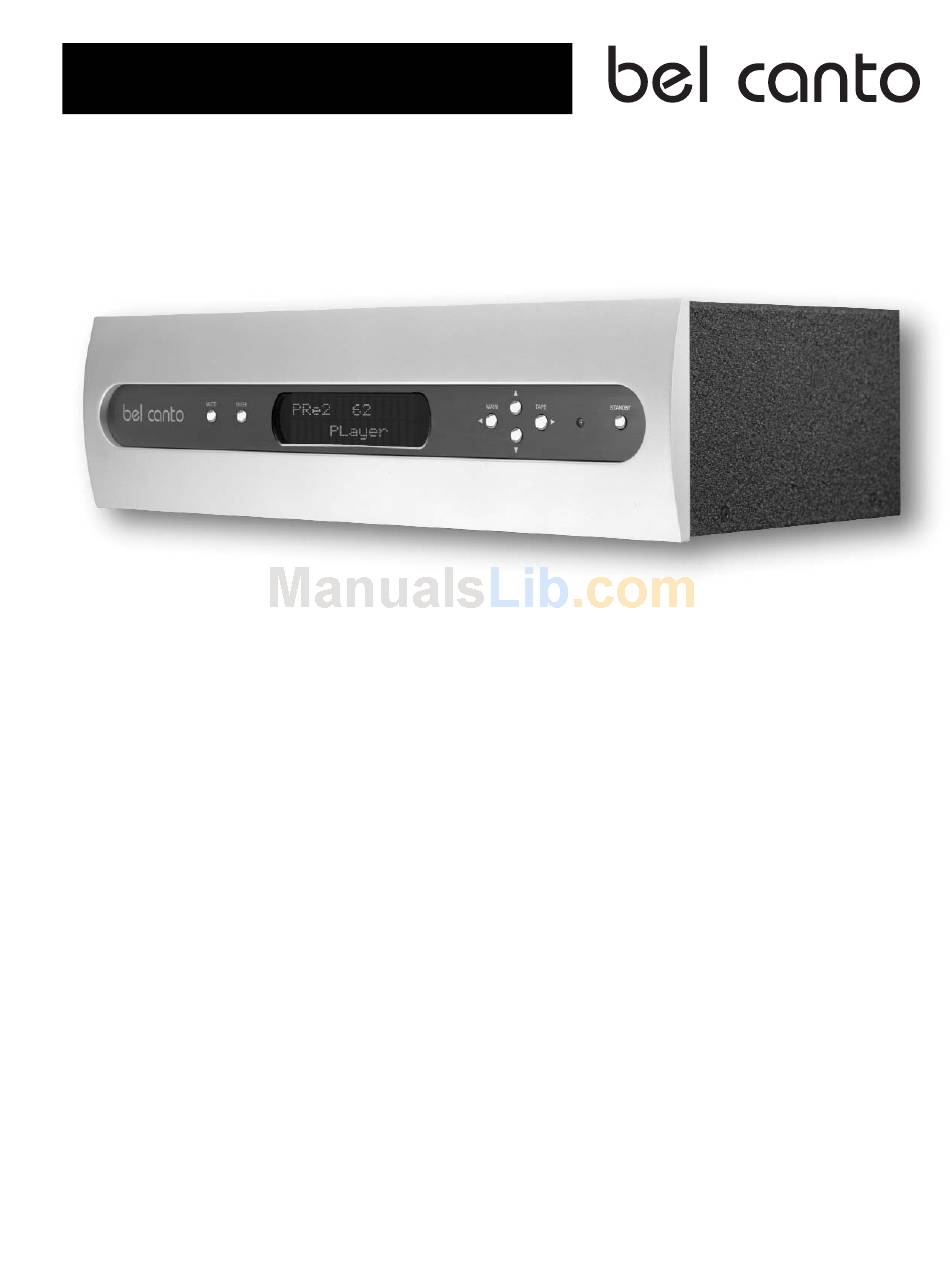

- Page 1 User's Guide PRe2 ™ PRe2P ™ Two Channel Analog Pre-Amplifier Bel Canto Design, LTD. 212 Third Avenue North Minneapolis, MN 55401 Phone: (612) 317.4550 Fax: (612) 359.9358 www.belcantodesign.com Info@belcantodesign.com ©2002-2004 Bel Canto Design, LTD...
-
Page 2: Table Of Contents
Thank you for purchasing the Bel Canto Design PRe2. Your PRe2 is designed to maintain very high value, setting the benchmark for design, quality and sonic performance while maintaining our heritage of musicality and realism. PRe2 & PRe2P Unpacking ........... . 3 Power Connection . -
Page 3: Unpacking
Warning Do not connect power to this preamplifier yet! © 2002-2004 bel canto design, Ltd. IMPORTANT: Save all packing materials as the packing is spe- cially designed to protect the unit during transportation or shipping. If the packag-... -
Page 4: Placement And Initial Setup
• Independent digital and analog trans- © 2002-2004 bel canto design, Ltd. Single Ended RCA and Balanced XLR connectors are available. XLR jacks allow balanced hookup using the stan-... -
Page 5: Conditioning
INPUT SELECTION PRESS 7 TIMES TO ACCESS SETUP MENUS TOGGLES THROUGH TAPE OUTPUT SELECTION © 2002-2004 bel canto design, Ltd. Conditioning Decreases the output level. Balance Left: (available from the remote only) Shifts balance left in 0.5dB steps. It is also used to scroll left in the setup menu. - Page 6 PRESS ENTER AND HOLD TO ACCESS SETUP MENU* SOFT AND FULL MUTE FUNCTIONS *ALSO USED FOR NAVIGATING THE SETUP MENU © 2002-2004 bel canto design, Ltd. MAIN: Cycles through the main inputs. It is also used to scroll to the left in the setup menu.
- Page 7 It is also used to scroll to the right in the setup menu. PRe2 Back Panel PRe2P Back Panel © 2002-2004 bel canto design, Ltd. STANDBY: When in STANDBY mode the red LED is engaged, the display is off and the out- puts are muted.
-
Page 8: Setup And Options
CD. Press Enter to exit this menu mode. 3) The third menu level is used to set the Initial Volume level. © 2002-2004 bel canto design, Ltd. Press ENTER and use the UP/DOWN keys to set the default level when coming out of STANDBY. - Page 9 2) Resistive Input loading. This may be adjusted by pressing ENTER and scroll- © 2002-2004 bel canto design, Ltd. This is used to Restore the Factory Default menu settings. Use the UP/DOWN keys to toggle to YES or NO.
-
Page 10: Specifications
Power Requirements • 110-120 VAC 50-60 Hz or 220-240 VAC 50-60 Hz Dimensions • 17.5” W x 14.5” D x 4.5” H (445 mm x 368 mm x 114 mm) Weight: 24lbs. (13 kg) © 2002-2004 bel canto design, Ltd. page 10 PRe2/P User’s Guide rev072004... - Page 11 © 2002-2004 bel canto design, Ltd. page 11 PRe2/P User’s Guide rev072004...
- Page 12 Bel Canto Design, LTD. 212 Third Avenue North Minneapolis, MN 55401 Phone: (612) 317.4550 Fax: (612) 359.9358 www.belcantodesign.com Info@belcantodesign.com ©2002-2004 Bel Canto Design, LTD PRe2™ is a trademark of Bel Canto Design, LTD...
