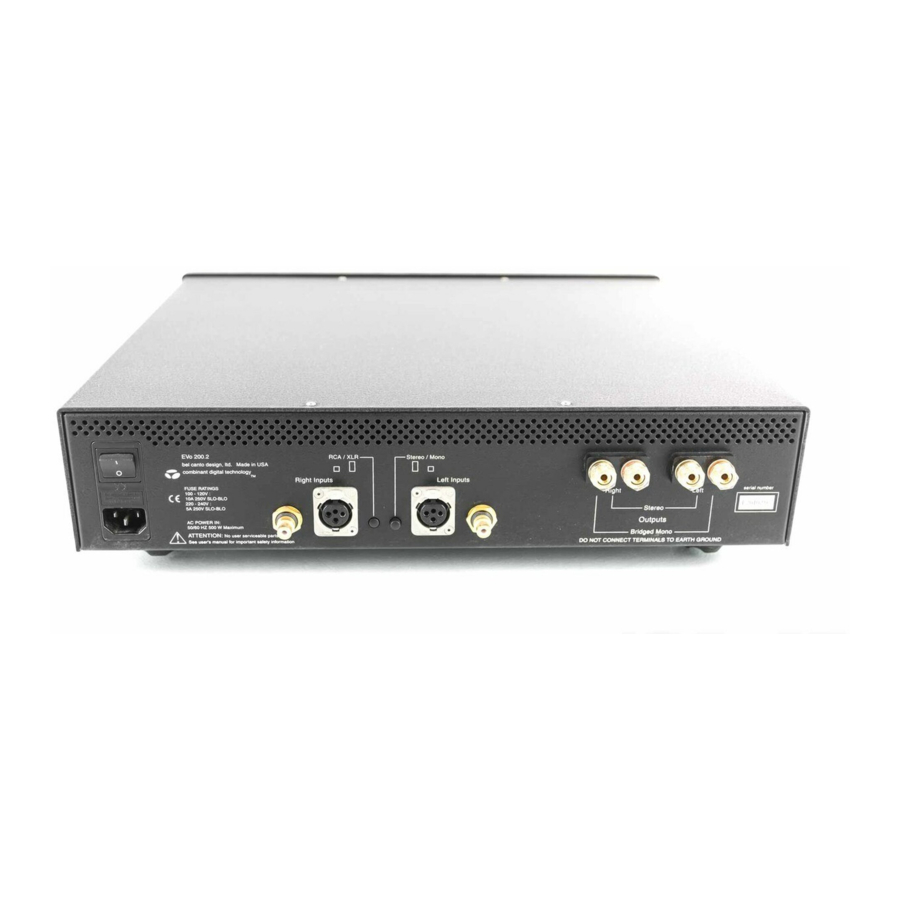

- Page 1 BelCantoDesign eVo200.2 Digital Power Processor Audio Power Amplifier User's Guide and Operating Information Bel Canto Design • 212 Third Avenue North–Suite 345 • Minneapolis, MN 55401 Info@BelCantoDesign.com Phone: (612) 317.4550 • Fax: (612) 359.9358 • Email: © May, 2001...
-
Page 2: Table Of Contents
The eVo200.2 is a dual configuration, stereo/mono power audio amplifier using a unique Bel Canto Design, eVo Digital Power Processor circuit architecture. Contents Bel Canto Design Statement Design Features Unpacking Initial Setup Amplifier Placement &Specifications Warranty eVo200.2 Owner's Manual... - Page 3 These components share the inherent musical qualities of the reference amplifier, while achieving a new level of value and performance using the latest analog and digital technologies. The eVo200.2 is the first digital amplifier in this new line and represents a significant advancement in home entertainment technology.
-
Page 4: Design Features
• Protection circuitry outside signal path The eVo Digital Output Stage and Digital Power Processor The Bel Canto Design eVo digital output stage is of unique simplicity. The output uses 2 N channel MOSFET switches which are switched between the power supply rails. These... -
Page 5: Unpacking
Before powering this amplifier it is necessary to read and follow proper setup and use procedures. Do not open up your eVo200.2 (do not remove the chassis cover). There are no user serviceable parts inside. Any tampering of internal parts will immediately void your warranty. -
Page 6: Initial Setup
The eVo200.2 has been designed to remain powered up at all times. The blue front panel LED is on when the eVo200.2 is in normal operating mode. When the amplifier shuts down in protection mode a small red LED lights next to the blue LED. -
Page 7: Specifications
Amplifier Placement eVo200.2 Placement Within Your System The most typical arrangement places the eVo200.2 on the lower shelf of a rack or shelf unit; some users prefer to have the eVo200.2 on its own stand. Whichever method is preferred, it is... -
Page 8: Warranty
This information will be filed with your amplifier’s build documents and will not be used for any other purposes. This information will not be sold or released outside Bel Canto Design. Your comments and suggestions help us continue to improve upon our products and services.
