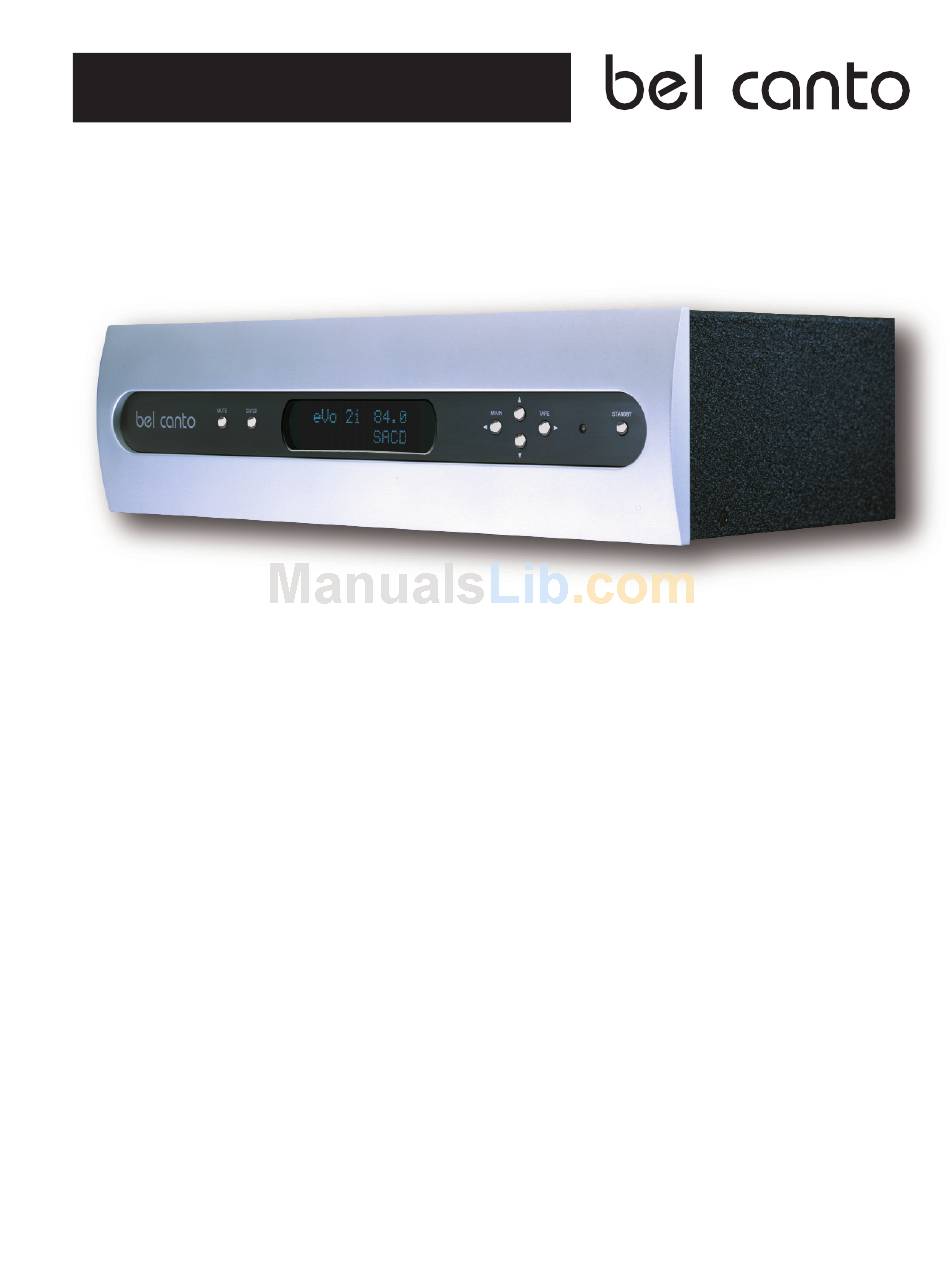

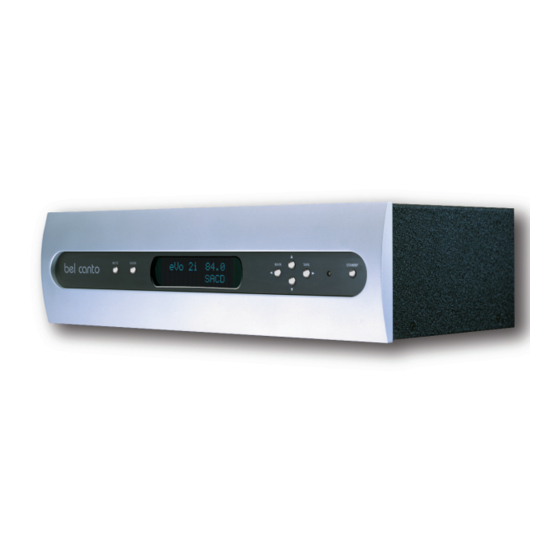

  • Page 1 User's Guide eVo2i ™ Two Channel Integrated Audio Amplifier Bel Canto Design, LTD. 212 Third Avenue North Minneapolis, MN 55401 Phone: (612) 317.4550 Fax: (612) 359.9358 www.belcantodesign.com Info@belcantodesign.com ©2002-2004 Bel Canto Design, LTD...
  • Page 2: Table Of Contents

    Thank you for purchasing the Bel Canto Design eVo2i. Your eVo2i is designed to main- tain very high value, setting the benchmark for design, quality and sonic performance while maintaining our heritage of musicality and realism. Two-Channel Integrated Audio Amplifier Unpacking .
  • Page 3: Unpacking

    Warning Do not connect power to this preamplifier yet! © 2002-2004 bel canto design, Ltd. Unpacking unit during transportation or shipping. If the packaging becomes lost or dam- aged, please contact your dealer, dis- tributor or Bel Canto before attempting to transport your unit.
  • Page 4: Placement And Initial Setup

    • High efficiency Digital Power Processing eVo power amplifier. © 2002-2004 bel canto design, Ltd. Single Ended RCA and Balanced XLR connectors are available. XLR jacks allow balanced hookup using the stan- dard pin configuration:...
  • Page 5: Conditioning

    Decreases the output level. INPUT SELECTION PRESS 7 TIMES TO ACCESS SETUP MENUS SELECTS TAPE INPUT © 2002-2004 bel canto design, Ltd. Conditioning Balance Left: (available from the remote only) Shifts balance left in 0.5dB steps. It is also used to scroll left in the setup menu.
  • Page 6 PRESS ENTER AND HOLD TO ACCESS SETUP MENU* SOFT AND FULL MUTE FUNCTIONS © 2002-2004 bel canto design, Ltd. MAIN: Cycles through the main inputs. It is also used to scroll to the left in the setup menu.
  • Page 7 Tape loop function: Tape In selected routes the Tape In jacks to the main out- puts. The main input 1-4 selected with © 2002-2004 bel canto design, Ltd. STANDBY: When in STANDBY mode the red LED is engaged, the display is off and the out- puts are muted.
  • Page 8: Loudspeaker Connection

    8 characters that can be used for naming the input. Scroll the indi- © 2002-2004 bel canto design, Ltd. would result in one of the red (positive) out- puts being connected to ground and cause the amplifier to go into protection mode and shut itself off.
  • Page 9 Saving the settings will insure that your changes are active even if power is removed from the eVo2i. © 2002-2004 bel canto design, Ltd. Press ENTER to save your configuration and exit this menu mode. C) ERASE CONFIG ? Menu This is used to Restore the Factory Default menu settings.
  • Page 10: Specifications

    Power Requirements • 100-120 VAC 50-60 Hz or 220-240 VAC 50-60 Hz Dimensions • 17.5" W x 14.5" D x 4.5" H (445 mm x 368 mm x 114 mm) Weight • 37 lbs. (13 kg) © 2002-2004 bel canto design, Ltd. page 10 eVo2i User’s Guide rev081104...
