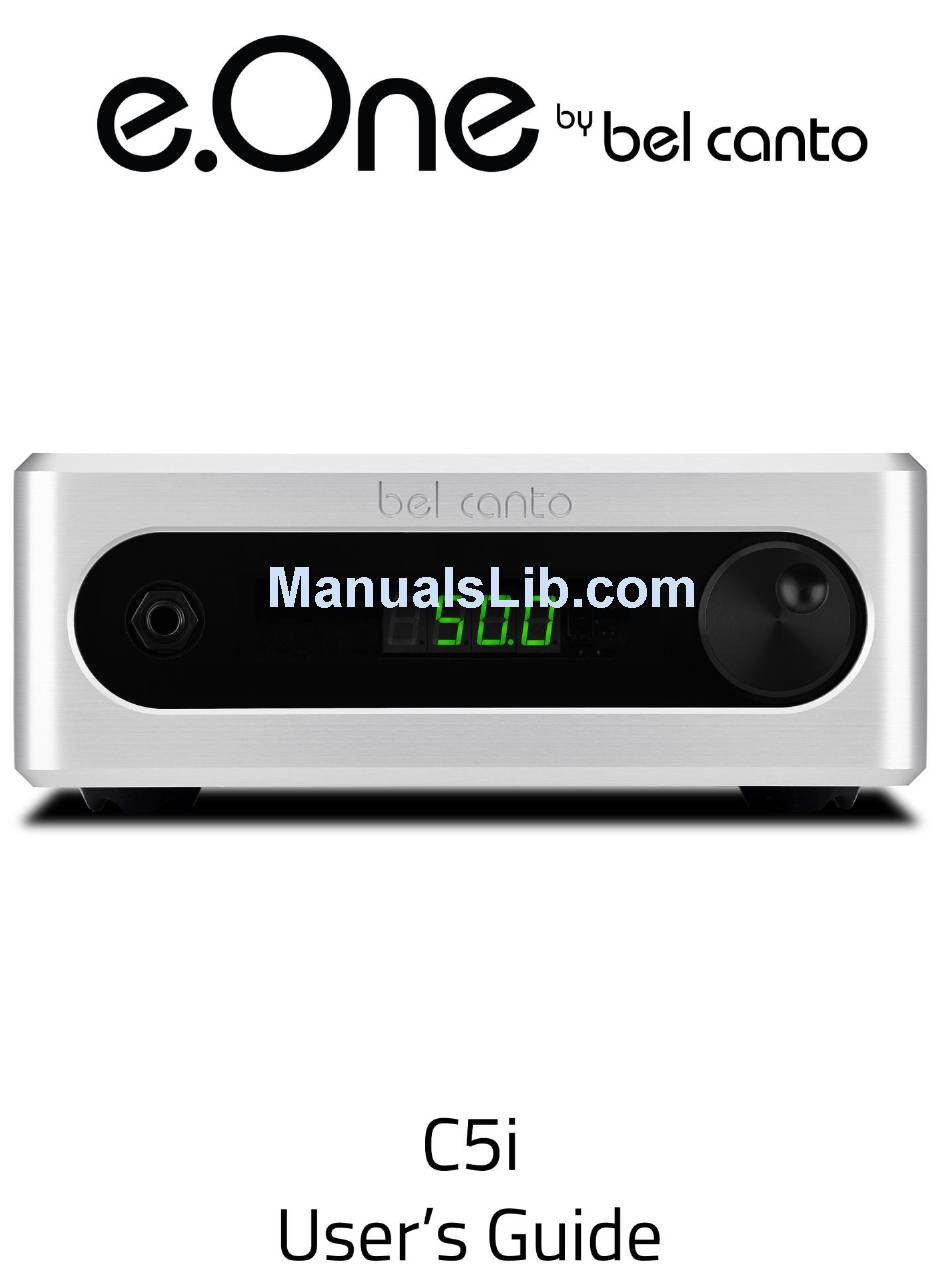

Bel Canto e.One C5i User Manual

Bel Canto e.One C5i User Manual

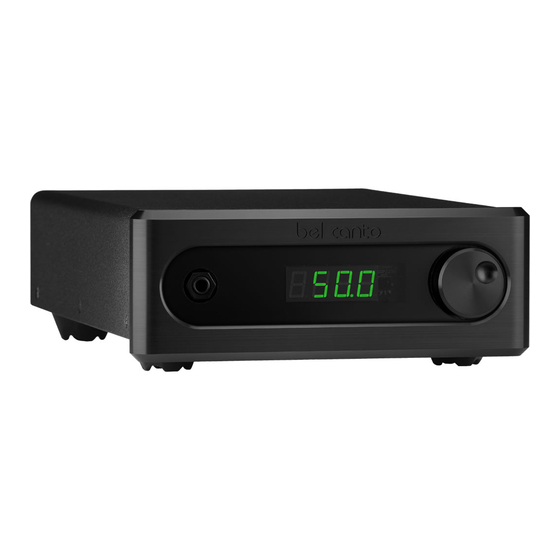

Integrated amplifier/ audio dac
Hide thumbs Also See for e.One C5i:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the e.One C5i and is the answer not in the manual?

Questions and answers

Summary of Contents for Bel Canto e.One C5i

  • Page 2: Remote Control

    Bel Canto Design Limited. Bel Canto Design Limited assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Trademarks used in this publication: Bel Canto and the Bel Canto logo are registered trademarks of Bel Canto Design Limited.
  • Page 3 Explanation of symbols used in this manual or on the TO COMPLETELY DISCONNECT THIS APPARATUS rear/underside of the apparatus: FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. The Lightning Flash with arrowhead symbol within an equilateral triangle is intended to THE MAINS PLUG OF THE POWER SUPPLY CORD alert the user to the presence of uninsulated SHALL REMAIN READILY ACCESSIBLE.
  • Page 4 Always ensure the fuse cover is fitted. If the fuse cover is This appliance is fitted with a non-rewireable 10 amp missing do not use the plug. Contact your Bel Canto mains plug. The plug contains a 10 amp fuse. If the fuse retailer to obtain a replacement fuse cover.
  • Page 5 5 business days you will receive an email that officially validates your warranty. Your information will be used for internal use only and will not be sold or released outside Bel Canto. Your comments and suggestions are appreciated and help us continually improve our products and services.
  • Page 6 24/96 data rate. The system will switch is in the 1 position automatically recognize the C5i as an audio converter enumerated as Bel Canto USB  2496 when using Windows 98 or later and Fuse Drawer with 5 amp/250V slow blow any version of Macintosh OSX.
  • Page 7 Upon Power Up: Front Panel Digital Lock Indicator: When switched on, the C5i will display its software When no digital input signal is present on a selected revision. The SP1 input will be selected and Soft input, the first decimal point on the display will blink Mute will be active.
  • Page 8 The Mute function will punch through to any Bel Canto unit set in Variable Output mode. VOL+: Increases the volume setting. This will punch through to any Bel Canto unit in Variable Output mode. The display will show the volume level while changing.
  • Page 9 Volume Control Punch Through The Volume Up, Down and Mute functions on the remote control will affect any Bel Canto unit in Variable Output mode regardless of whether PRE, DAC, CD or TUNER is selected. It is recommended that only the device with volume control closest to the power amps be in Variable Output mode.
  • Page 10 Power Output 1% THD: 120W @ 4 ohms, 60W @ 8 ohms per channel Minimum Load: 3 ohms per channel Peak Output Current: 30 amperes Frequency Response: +/-3 dB 1.5Hz-90kHz, 4 ohm load THD+N: 0.003% 1W, 1kHz, 4 ohms IMD (CCIF): 0.0003%, 1W, 14:15kHz, 4 ohms Output noise: <50uVRMS A-weighted 10Hz-20kHz...
  • Page 11 EN 55013:2001 + A1:2003 + A2:2006 EN 55020:2007 EN 61000-3-2:2006 EN 61000-3-3:1995 + A1:2001 + A2:2005 EN 60065:2002/A12:2011 Manufacturer: Bel Canto Design, Ltd. 221 1 Street North Minneapolis, MN 55401 USA The equipment identified here conforms to the Directive(s) and Standard(s) specified above.
  • Page 12 5.0...
