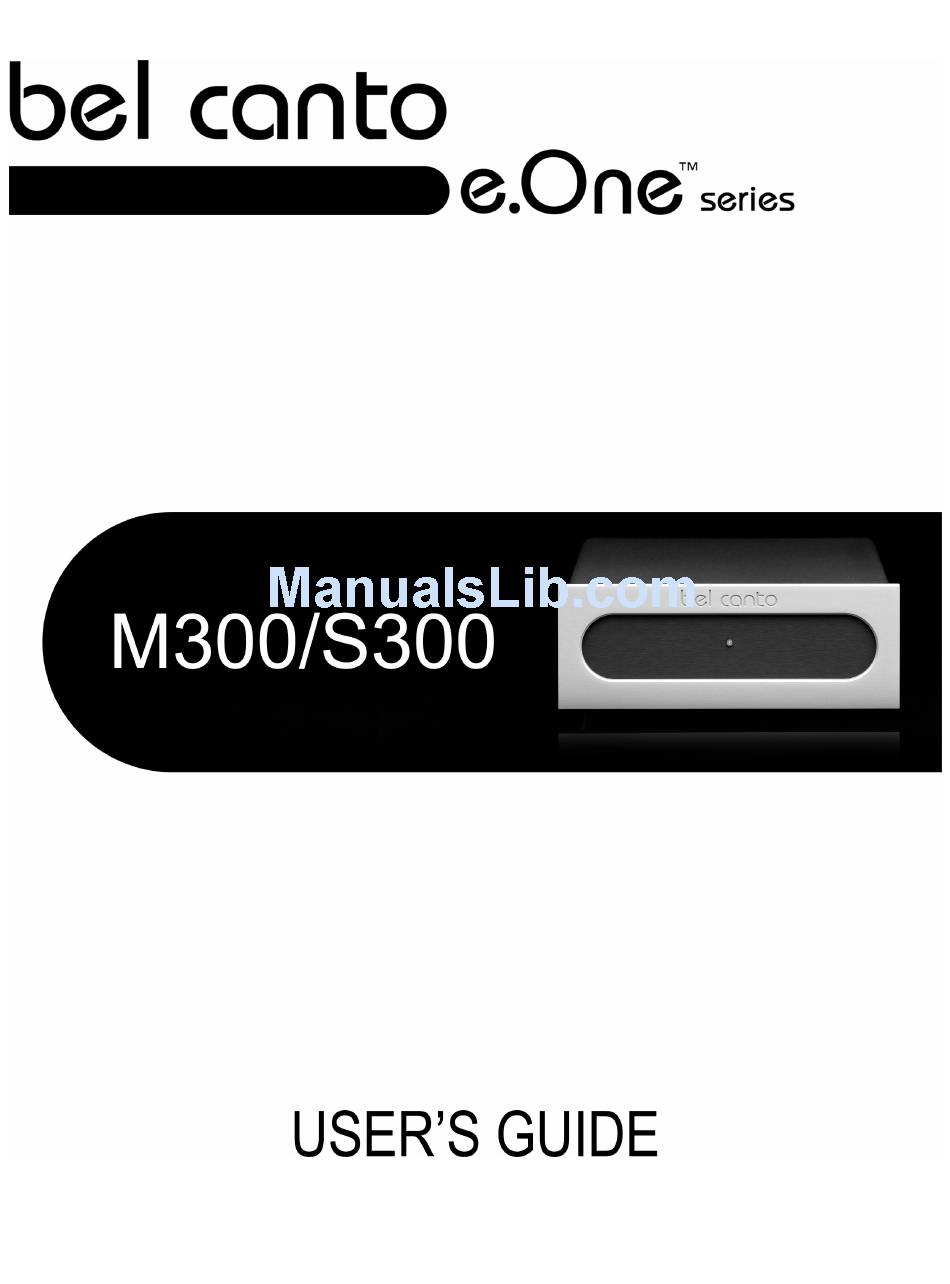

Summary of Contents for Bel Canto M300
- Page 2 Trademarks used in this publication: Bel Canto and the Bel Canto logo are registered trademarks of Bel Canto Design Limited. M300 and S300 are trademarks of Bel Canto Design Limited. Bel Canto Design Limited disclaims any proprietary interest in trademarks and trade names other than its own.
- Page 3 Explanation of symbols used in this manual or on the CAUTION rear/underside of the apparatus: • To reduce the risks of electric shock, do not remove the cover. • No user serviceable parts inside. This symbol is intended to alert the user to •...
- Page 4 Fit a new 10 amp BS1362 approved fuse into the carrier GROUNDED. and push the carrier back into the plug. Bel Canto Design Ltd. declare that this product is in conformance The conformity of the designated product with the provisions of with the Low Voltage Directive 73/23/EEC and Electromagnetic...
- Page 5 Bel Canto before attempting to transport your unit. This product, like any electrical component, can be The power supply on the M300/S300 is preset for dangerous and cause injury unless correct handling the proper power voltage. The power cable should procedures are observed and used.
- Page 6 The e.One M300 and S300 are mono and dual-mono audio power amplifiers that deliver up to 150 watts into 8 ohm loads and 300 watts into 4 ohm loads. Each amplifier contains its own dedicated regulated power supply for all amplifier stages, including the output section.
- Page 7 Never Connect Either the Positive or Negative Speaker Output to Any Ground Contact! Connecting any Speaker Output on the M300/S300 to Ground will cause the amplifier to go into protection and could damage the amplifier and void the warranty. Power Switch: Power is on when the switch is Do not connect both XLR and RCA cables to •...
- Page 8 • ground from the M300/S300 as this may lead to dangerous operation and void the warranty. The small blue LED lamp indicates that power is connected to the M300/S300 and that the power switch is in • the ON position. If the amplifier detects a fault or short circuit in the output connections, it will go into a protection mode and stop playing.
- Page 9 M300 Power Amplifier Specifications Maximum Power Output: 300W 4 ohms, 150W 8 ohms Minimum Load: 4 ohms Frequency Response: +/- 0.05 dB 20Hz-20KHz, all loads THD+N: 0.01% 1W, 1KHz, 4 ohms IMD (CCIF): 0.002%, 1W, 14:15KHz, 4 ohms Output noise:...
