Summary of Contents for Siqura CD820F1

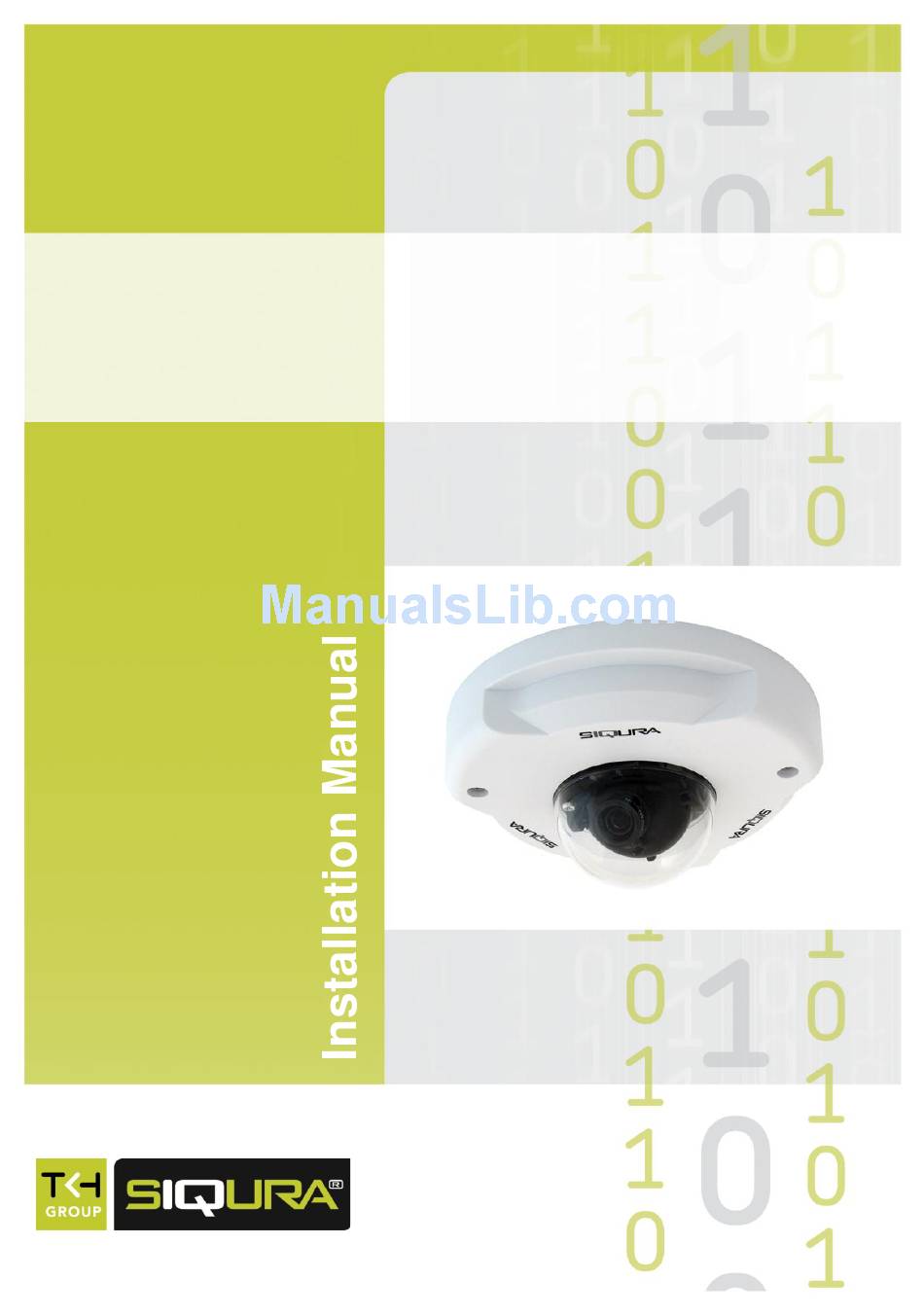

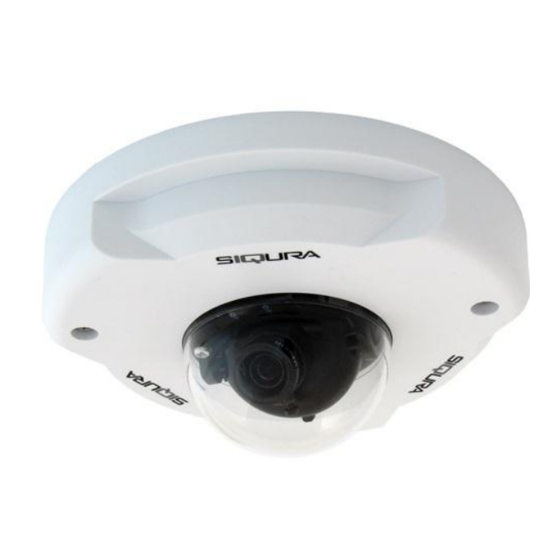

- Page 1 CD820 Series Compact Network Fixed-Dome Camera...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
Contents INTRODUCTION ............................5 SAFETY INFORMATION ..........................7 ..............................7 AUTIONS ............................. 8 EGULATIONS PRODUCT DESCRIPTION ........................... 9 ........................... 9 RODUCT VERVIEW ..........................10 ACKAGE ONTENTS CABLE DEFINITION AND REQUIREMENTS ....................11 ........................... 11 AMERA VERVIEW .......................... 12 NTERFACE EQUIREMENTS .......................... -
Page 5: Introduction
Video compression methods Specifications The information given in this manual was current when published. Siqura reserves the right to revise and improve its products. All specifications are subject to change without notice. Important information Before proceeding, please read and observe all instructions and warnings in this manual. Retain this manual with the original bill of sale for future reference and, if necessary, warranty service. -
Page 6: Typographical Conventions
CD820 Series Typographical conventions Before you start using this guide, it is important to understand the typographical conventions used in the documentation. The following kinds of formatting in the text identify special information. Formatting convention Type of Information Numbered list Step-by-step procedures. -
Page 7: Safety Information
Safety Information This chapter provides cautions on what to do and what not to do when working with or handling your CD820 unit. It also offers information on product compliance with environmental regulations and explains how to dispose of the product at the end of its service life. In This Chapter Cautions ................ -
Page 8: Regulations
CD820 Series Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions. This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC. -
Page 9: Product Description
1/2.7” progressive scan CMOS imager Dual-stream H.264 and MJPEG video ONVIF-compliant Audio - mic input 4mm fixed lens (CD820F1), 2.8 mm fixed lens (CD820F2) Compact surface mount design Ruggedised construction 802.3af Power-over-Ethernet/12 VDC ... -
Page 10: Package Contents
CD820 Series Package Contents Before proceeding, please verify that the box contains the items listed here. If any item is missing or has defects, do not install or operate the product. Contact your supplier for assistance. CD820 package contents CD820 camera Plastic anchors (x3) Self-tapping screws (x3) Rubber washer (×1, casing) -
Page 11: Cable Definition And Requirements
Cable Definition and Requirements Read the instructions provided in this chapter thoroughly before installing the CD820 camera. In This Chapter Camera Overview .............. 11 Interface Requirements ............12 System Compatibility............12 Power over Ethernet Cable Connection ......... 12 Camera Overview Under the CD820 camera's outer cover, installers can physically adjust the angle and lens settings as well as access the reset button. -
Page 12: Interface Requirements
Viewer ActiveX control plug-in for Microsoft IE System Compatibility To ensure system compatibility, download the latest firmware at http://www.siqura.com/. Power over Ethernet Cable Connection The CD820 uses Power over Ethernet (PoE), which requires that IEEE 802.3af Power Sourcing Equipment (PSE) is available on the network. The use of Cat 5 Ethernet cable is recommended for network connection. -
Page 13: Ethernet Cable Connection
Cable Definition and Requirements 4.4.2 Ethernet cable connection To connect the CD820's Ethernet cable. Unpack the CD820 compact fixed-dome IP camera. Use the security TORX tool to remove the housing cover. Removing the housing cover After connecting the Ethernet cable, replace the dome cover. Run the Ethernet cable through the Waterproof RJ-45 Screw-On Plug. -
Page 15: Installation
Installation The CD820 can be installed directly on a wall or ceiling, provided the surface has sufficient strength to support the camera. In This Chapter Dimensions ............... 15 Hard-Surface Installation ............ 16 Connecting Audio to the CD820 ........... 17 Dimensions The CD820 dimensions are provided in millimeters in the figures below. -
Page 16: Hard-Surface Installation
CD820 Series Hard-Surface Installation To install the CD820 on a wall or hard ceiling Unpack the CD820 compact fixed-dome IP camera. Use the security TORX tool to remove the housing cover. Removing the housing cover Insert the rubber washers in both sides of the holes on the bottom plate of the camera. Rubber washer position Mark the position of the two screw holes. -
Page 17: Connecting Audio To The Cd820
Installation Connecting Audio to the CD820 Users can connect an external microphone to the CD820 through a waterproof M8 connector. The CD820 offers Simplex listen-only audio. This allows audio to be received, so one site can listen to the other site. M8 audio connector pin assignments ... -
Page 19: Appendix: Technical Specifications
720p + D1/CIF@30fps Video compression H.264 Main Profile/MJPEG Minimum illumination 0.1 lux color Signal-to-noise ratio >40 dB Lens 4 mm (CD820F1) / 2.8 mm (CD820F2) fixed focal Shutter speed 1~1/10000 s Lens type Fixed iris IMAGE CONTROL Brightness Manual Exposure... - Page 20 CD820 Series Item Siqura CD820 Storage Micro secure digital (SD) card, 32GB NETWORK Interface 10/100 Ethernet (RJ-45) Protocol TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, NTP, PPPoE, UPnP, and IGMP Internet browser Internet Explorer 6.0 or higher User levels...
