Siqura FD2x Series User Manual

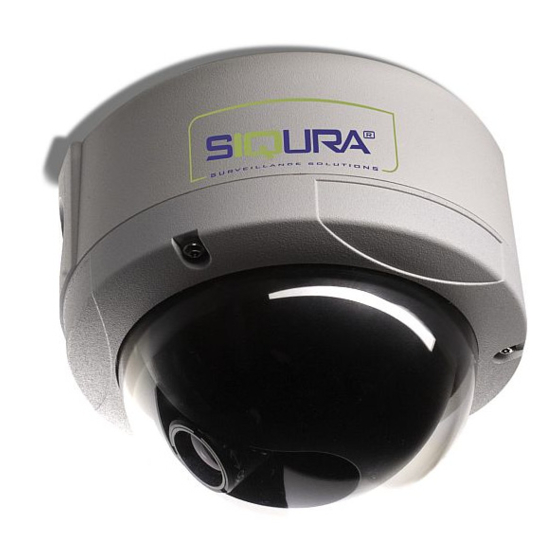

1.3 megapixel vandal proof ip fixed dome camera

Hide thumbs

Table Of Contents

Quick Links

User

Manual

Siqura FD2x Series

1.3 Megapixel Vandal Proof IP Fixed Dome Camera

Table of Contents

Need help?

Do you have a question about the FD2x Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Siqura FD2x Series

Page 1 User Manual Siqura FD2x Series 1.3 Megapixel Vandal Proof IP Fixed Dome Camera...
Page 3: Table Of Contents
Contents CONTENTS PREFACE ......................1 1.1....................2 HANGE CAUTIONS.......................3 OVERVIEW ......................5 3.1......................5 EATURES IP CAMERA CONFIGURATION AND OPERATION .............7 4.1. IP C ..................7 CCESSING THE AMERA 4.1.1. Device Search software setup ..............7 4.1.2. Changing the IP camera's Network property ..........9 4.2.
Page 4 Contents VIDEO AND AUDIO STREAMING................ 35 6.1..............35 IDEO ESOLUTION AND OTATE 6.1.1. Video resolution ..................36 6.1.2. Video rotate type .................. 36 6.2..................37 IDEO OMPRESSION 6.3................... 39 IDEO TREAM ROTOCOL 6.4................... 40 IDEO RAME 6.5.
Page 5: Preface
All specifications are subject to change without notice. Notice To work with a Siqura FD2x Series camera, an installer or technician must have a basic knowledge of CCTV systems and their components, electrical wiring, and low-voltage electrical connections, and have read this manual completely...
Page 6: Change Log
Preface Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 7: Cautions
Cautions CAUTIONS Only qualified service personnel or system installers should install and connect this product. Handle the camera carefully. Do not abuse the camera. Avoid striking, shaking, etc. as the camera can be damaged by improper handing or storage. Do not disassemble the camera. To prevent electric shock, do not remove screws or covers.
Page 9: Overview
Overview OVERVIEW The Siqura FD2x Series Cameras feature a 1.3 Megapixel progressive scan image sensor that delivers unparalleled image quality. Utilising this progressive scan sensor, it produces images of rapid moving objects with minimum motion blurring. Dual streaming enables users to view both MJPEG images and MPEG-4 video to achieve superior image quality and conserve bandwidth.
Page 11: Ip Camera Configuration And Operation
, found in DeviceSearch.exe the supplied CD's DeviceSearch folder. This application will detect and list all the Siqura FD2x cameras found in the network. The Device Search application is also available on the Software Downloads page of www.optelecom-nkf.com.
Page 12 IP Camera Configuration and Operation If a security alert window displays, as shown in figure 4.2, click to continue. Unblock Figure 4.2 Device search security alert Click again. Device Search The IP Camera's default IP address (not shown in figure 4.3) is in the 10.x.x.x series.
Page 13: Changing The Ip Camera's Network Property
IP Camera Configuration and Operation Right click a found device and select to access the camera directly via the web Browse browser, as shown in figure 4.4. Figure 4.4 Browse found devices The user is prompted for username and password. The default login and password for the administrator are Admin / 1234.
Page 14 IP Camera Configuration and Operation To change the IP Camera's network property In the device list, select the IP Camera you would like to change. Right-click the selected item and choose as shown in figure 4.5. Network Setup Meanwhile, record the IP Camera's MAC address for future identification. Figure 4.5 Changing network properties In the Network Setup page, select , and click...
Page 15: Browser-Based Viewing
4.7, click Install Figure 4.7 Siqura Viewer installation security warning When prompted by the Siqura Viewer installation wizard to install, click Next When installation is complete, click Finish The Siqura home page will display as shown in figure 4.8.
Page 16 IP Camera Configuration and Operation At the bottom of the main page, users can adjust video display size (x1, x1/2 and full screen), select the video format (MPEG-4 and MJPEG), talk to a remote site (described in section 5.2 User Management) and save snapshots (only supported at MJPEG over RTSP as described in section 5.9 Image Capture).
Page 17: System Settings
System Settings SYSTEM SETTINGS Figure 5.1 shows all categories under the System tab. Each category in the left column is explained in the following sections. Figure 5.1 System settings please note The System configuration page is only accessible by an Administrator.
Page 18: System Time Settings
System Settings 5.1. System Time Settings To view the options discussed in this section, click the first category, in the left Date & Time column as shown in figure 5.2. Figure 5.2 System settings 5.1.1. Sync with computer time If selected, the displayed date and time will be synchronized with those of the user's PC. 5.1.2.
Page 19: User Management
System Settings 5.2. User Management To add and delete users and to configure user permissions, click in the left User management hand column. This screen is shown in figure 5.3. Figure 5.3 User management settings 5.2.1. Root password please note The root username is and the default password is Admin...
Page 20: Add User
User names and passwords are limited to 16 characters in length. This camera supports a maximum of twenty user accounts. 5.2.3. User permissions The Siqura FD2x series of cameras supports four permissions that control access to the corresponding web page sections: Home, System, Streaming, and Camera.
Page 21: Manage Users
System Settings 5.2.4. Manage users To delete a user In the left-hand menu, click as shown in figure 5.3. User management From the list labelled , select the name of the user you wish to delete. Existing User Click to remove the user. Delete The application takes about 20 seconds to delete a user.
Page 22: Network
System Settings To view user permissions In the left-hand menu, click , as shown in figure 5.3. User management Click the button. View privacy A pop-up window displays a list of users and their permissions as shown in figure 5.5. Figure 5.5 User permissions The four numbers after the user name denote the four privileges: Home, System, Streaming and Camera.
Page 23: Acquire Ip Address Automatically (Dhcp)
System Settings Click in the left column, and the page will display as shown in figure 5.6. Network Figure 5.6 Network Settings 5.3.1. Acquire IP address automatically (DHCP) By default, the fixed dome camera uses a fixed IP address, but the administrator can configure the camera to use DHCP to acquire its IP address.
Page 24: Use A Fixed Ip Address
System Settings 5.3.2. Use a fixed IP address To configure the camera with a static IP address In the left-hand menu, select as shown in figure 5.6. Network Select Use fixed IP address In the text box labelled , type the camera's IP address. IP address Enter the , and...
Page 25: Ddns
System Settings HTTP port This can be any port other than the default port . If the port is changed, the user must be notified the change for the connections to be successful. For example, if the Administrator changes the HTTP port of an IP dome camera with an IP address of 192.168.0.100 from 80 to 8080, the user must type in the address instead of http://192.168.0.100:8080...
Page 26: Mail
System Settings To use DDNS Enable DHCP as described in section 5.3.1, and select Acquire IP address automatically In the left-hand menu, select as shown in figure 5.8. DDNS Check the box labelled Enable DDNS Select the DDNS provider from the list labelled Provider. Type the registered domain name in the Host name field.
Page 27: Ftp
System Settings The camera supports up to two SMTP configurations. Each configuration includes the following settings: • SMTP Server • Account Name • Password • E-mail Address For SMTP server details, contact your network service provider. 5.6. The Administrator can configure the camera to send alarm messages to a specific File Transfer Protocol (FTP) site when an alarm is triggered.
Page 28: Alarm Configuration
System Settings To configure FTP settings In the left-hand menu, select as shown in figure 5.10. Enter the FTP details, which include server server port user name password , in the appropriate fields. remote folder Press when finished. Save For FTP server details, contact your network service provider. 5.7.
Page 29: Motion Detection
System Settings To configure alarms In the left-hand menu, select as shown in figure 5.11. Alarm configuration Under Alarm Switch, select to enable or disable the alarm function. Under Alarm Type, select the alarm type, , corresponding to Normal close Normal open the alarm application.
Page 30: Image Capture
System Settings To enable Motion Detection From the left-hand menu, select as shown in figure 5.12. Motion detection Under , select the button labelled Active Motion Detection The default setting is Configure the following parameters/levels of Motion Detection: Sampling pixel interval [1-100]: Default value: 10 •...
Page 31: Iris Adjustment
System Settings To specify a storage location for snapshots From the left-hand menu, select as shown in figure 5.13. Image Capture In the box labelled All images stored at, type the directory where you want to store captured snapshots, and click .
Page 32: View Log File
System Settings 5.11. View Log File The log file provides useful information about configuration and connections after system launch. Figure 5.15 Log file To view the system log In the left-hand menu, click as shown in figure 5.15. • View log file The system log displays.
Page 33: View System Parameters
System Settings 5.12. View System Parameters The FD2x camera's parameters are stored in its configuration file. To view all of the system's parameters Click in the left-hand menu. • View parameters The parameters display in the browser as shown in figure 5.16. Figure 5.16 System parameters...
Page 34: Factory Default
System Settings 5.13. Factory Default The Factory default page, shown in figure 5.17, enables the administrator to return the camera's settings to those present when shipped from the factory. Figure 5.17 Factory defaults To restore the camera's default settings Click the button •...
Page 35: Software Version
System Settings 5.14. Software Version To display the camera's software and firmware versions In the left-hand menu, select • Software version The camera's software and firmware versions are displayed as shown in figure 5.18. Figure 5.18 Software version...
Page 36: Software Upgrade
System Settings 5.15. Software Upgrade Software upgrade can be carried out in the Software Upgrade page, as shown in figure 5.19. Figure 5.19 Software upgrade please note Make sure the upgrade software file is available before initiating a software upgrade. To upgrade your camera's software In the left-hand menu, select Software upgrade...
Page 37 System Settings Click Software uploading will begin. Figure 5.20 Software upgrade please note Do not change the upgrade file name, or the system will fail to find the file. When notified that the file has uploaded successfully, click OK to continue.
Page 38 System Settings From the list labelled , select the appropriate file Select binary file you want to upgrade as shown in figure 5.21. Figure 5.21 Select file to upgrade Click Upgrade The system will check whether the upgrade file exists or not. After the upgrade process is finished, the viewer will return to the Home page, and operation can continue.
Page 39: Video And Audio Streaming
Video and Audio Streaming VIDEO AND AUDIO STREAMING To view the FD2x series camera's configurable video and audio items, press the Streaming at the top of the page. The items display in the left-hand column. In this section, the administrator can configure specific video resolution, video compression mode, video protocol, and audio transmission mode.
Page 40: Video Resolution
MJPEG 640x480 (15fps) + MPEG-4 VGA (15 fps) Click to confirm the setting. Save 6.1.2. Video rotate type Users can change video display type if necessary. Rotate types for the Siqura FD2x cameras include , illustrated in this section. Normal Flip...
Page 41: Video Compression
Video and Audio Streaming To select a video rotation type From the left-hand menu, select Video Format Choose one of the following video rotation types: • Normal video No rotation applied • Flip video Rotates the image vertically • Mirror video Rotates the image horizontally •...
Page 42 Video and Audio Streaming To change the MJPEG compression setting From the Main menu, select and from the left-hand menu, select Streaming Video Compression Choose one of the following compression settings: • high compression, low bit rate, low quality • middle compression, default •...
Page 43: Video Stream Protocol
Video and Audio Streaming 6.3. Video Stream Protocol On the Video Stream Protocol page, shown in figure 6.4, users can select a protocol for streaming media over the network: (Real Time Streaming Protocol, using UDP transport) • RTSP (Hypertext Transfer Protocol, using TCP transport), •...
Page 44: Video Frame Skip
Video and Audio Streaming Click Save please note MPEG-4 video can only be transmitted via RTSP, while MJPEG can be transmitted via RTSP or HTTP. When experiencing video streaming problem with the IP dome camera, select the option MJPEG over HTTP, for internet use.
Page 45: Audio Mode And Bit Rate Settings
Video and Audio Streaming To enable MPEG-4 frame skip From the Main menu, select and from the left-hand menu, select Streaming Video Frame Skip In the section labelled MPEG-4 Frame Skip, select one of the following options: • No skipping, default •...
Page 46 Video and Audio Streaming To configure audio settings From the Main menu, select and from the left-hand menu, select Streaming Audio From the section labelled Transmission Mode, select one of the following: • Full-duplex - local and remote sites can communicate with each other simultaneously, i.e.
Page 47: Camera Settings
Camera Settings CAMERA SETTINGS Figure 7.1 shows the camera configuration page. To access this page, select from the Camera main menu. Details of each parameter setting are described in the following sections. Figure 7.1 Camera settings 7.1. Exposure The exposure is the amount of light received by the image sensor and is determined by the width of lens diaphragm opening (iris adjustment), the amount of exposure by the sensor (shutter speed) and other exposure parameters.
Page 48: White Balance
Camera Settings Each exposure mode is specified as follows: Full Auto Mode In this mode, the camera's Shutter Speed, IRIS and AGC (Auto Gain Control) control circuits work together automatically to provide consistent video output. Auto Flickerless (50Hz)/(60Hz) Mode Television scanning (PAL & NTSC) and power supply systems (AC 50 & 60 Hz) are not the same in different countries and regions.
Page 49: Backlight Setting
Camera Settings Auto Mode In this mode, white balance works within its color temperature range and calculates the best-fit white balance. Indoor/outdoor Mode Select for indoor or outdoor mode. Manual Mode In this mode, users can change the White Balance of an object manually. Lower numbers correspond to the blue (cooler hues) temperature ranges while the higher numbers correspond to the red (warmer hues) temperature ranges.
Page 50: Contrast Setting
Camera Settings 7.6. Contrast Setting Contrast is the difference in brightness between the light and dark areas of an image. To change the image's contrast Select a higher value for greater contrast (and a lighter image) and a lower number for less contrast (and a darker Figure 7.7 Contrast image).
Page 51: Appendix A: Technical Specification
Technical Specification APPENDIX A: TECHNICAL SPECIFICATION Item FD20 FD22 FD24 FD24WDR Camera Image Sensor 1/3" CCD 1/3.8" CMOS 1/3" CCD Picture Elements 1280(H) x 960 (V) Resolution VGA, QVGA, CIF, 4xVGA (1.3Mpix), QVGA, CIF, QCIF QCIF Minimum Illumination 0.2 lux @ F1.2 0.6 lux @ F1.2 0.2 lux @ F1.2 Shutter Speed...
Page 52 Technical Specification Item FD20 FD22 FD24 FD24WDR User Accounts Mechanical Power 3 Pins Terminal Block Pitch: 3.5mm Ethernet 180D RJ-45 with LED Connectors Audio 5 pins terminal block, Pitch 2.54mm Alarm 4 pins terminal block, Pitch 2.54mm LED Indicator Power, Link, TX General Operating Temperature -40°F ~ 122°F (-40°C ~ 50°C)
