- Page 1 OWNER’S MANUAL >> BINARY™ HD MATRIX SWITCHER B-100-HDMATRIX-4X4 / B-100-HDMATRIX-8X8...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus in or near rain or moisture. 1. Read and keep these instructions for future reference. 2. Do not use this apparatus near water. 3.
-
Page 3: Table Of Contents
1 OVERVIEW ......................4 1.1 Features............................4 1.2 PACKAGE CONTENTS ........................4 2 FRONT AND REAR PANEL ................... 5 2.1 Front Panel B-100-HDMatrix-4x4 ...................5 2.2 Front Panel B-100-HDMatrix-8x8 ...................5 2.3 Rear Panel B-100-HDMATRIX-4x4 ..................6 2.4 Rear Panel B-100-HDMATRIX-8x8 ..................6 3 INSTALLATION ..................... 7 3.1 Installation Considerations ......................7... -
Page 4: Overview
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 1. OVERVIEW Welcome to Binary™ - This product is engineered to provide years of exceptional reliability. Binary™ is one of the most highly regarded brands available today and stands committed to providing customers with the highest degree of quality and service in the industry. -
Page 5: Front And Rear Panel

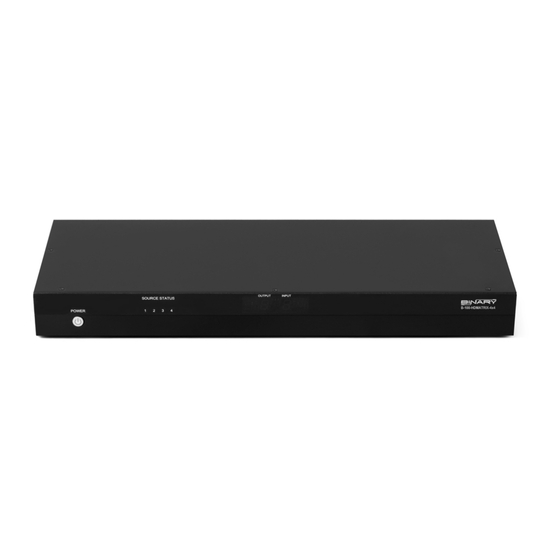

B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 2. FRONT AND REAR PANEL 2.1 Front Panel B-100-HDMatrix-4x4 1. Power: Power ON/OFF switch 2. Source Status (LED on = Source is ON and sending a signal) 3. Output: Displays the last selected Output 4. -
Page 6: Rear Panel B-100-Hdmatrix-4X4
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 2.3 Rear Panel B-100-HDMATRIX-4X4 1. +5V DC interlocked power jack 2. RS-232 control port (DB9) 3. HDMI Inputs 1 through 4 4. HDMI Outputs 1 through 4 5. External IR Receiver (3.5mm Stereo) 2.4 Rear Panel B-100-HDMATRIX-8x8... -
Page 7: Installation
3. INSTALLATION 3.1 Installation Considerations Binary HDMatrix switchers are designed with unsurpassed technology to provide superior performance. However, where you install the switcher can have a large effect on the performance that you receive, and the life of the unit. Here are some guidelines to follow when installing a B-100- HDMatrix Switcher. -
Page 8: Connections
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 3.2 CONNECTIONS 3.2.1 Basic Connections IR Receiver Cable/Sat Blu-ray/DVD Game HD DVR Player Console HDMI Extender HDMI Extender Transmi er Receiver Home Automa on HDTV HDTV HDTV HD Projector Examples HDMI Sources Video Displays Control Devices •... -
Page 9: Control Ports
IR Signal (Tip) 3.3.2.2 Custom Cable Construction To IR Control System/ To B-100-HDMATRIX Connecting Block (Tip) IR Signal (Tip) GND (Ring) GND (Sleeve) 12V DC (Sleeve) 12V DC (Sleeve) GND (Ring) IR Signal (Tip) IR Signal (Tip) pg.9 © 2011 Binary... -
Page 10: Rs-232 Db9 Serial Connection
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 3.3.3 RS-232 DB9 Serial Connection The Binary™ HDMatrix receives control data on pin 2 (Rxd - Data Receive) and transmits control data on pin 3 (TxD - Data Transmit). The connection cable between the HD MATRIX... -
Page 11: Edid Configuration
• As a first step to configuration following up with advanced methods for particular displays and dedicated sources. For advanced EDID configuration when using legacy display and/or dedicated sources, use embedded EDIDs or learning as described in the following sections: pg.11 © 2011 Binary... -
Page 12: Advanced Edid Configuration
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 Setting Auto EDID via IR Remote Sets EDID Based on All Connected Displays Display Readout (Example) 1. Press DEFAULT 2. Press Number Key 9 4. Press ENTER 4.2 Advanced EDID Configuration 4.2.1 Embedded EDIDs Defaults The B-100-HDMATRIX switchers contain 8 representative ‘embedded’... -
Page 13: Setting Edid For Single Input
4.2.1.2 Setting EDID for All Inputs Example: Input=All Embedded EDID=4 Display Readout (Example) 1. Press DEFAULT 2. Press ALL to select all Inputs 3. Press Number Key (1-8) to select Embedded EDID 4. Press ENTER (success) (fail) pg.13 © 2011 Binary... -
Page 14: Learning Edid
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 4.2.2 Learning EDID For more advanced EDID configuration, learning can be used to assign EDIDs. When used ,the EDID from a particular display is assigned to a particular source or all sources. This is useful when the system contains a display that may not output the highest resolution available from the sources. -
Page 15: Edid Status
HDMI sources or displays. Each input can be set to High when video noise is present. We recommend that this be set to LOW as a starting point, and only changed should video noise be present on a particular input. pg.15 © 2011 Binary... -
Page 16: Operation And Control
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 6 OPERATION AND CONTROL 6.1 IR Remote Function Power on the matrix switcher POWER Enter standby mode Number Keys 1-9 Select a number OUTPUT Not Used Select all Inputs or Outputs INPUT Enter* Enter to trigger the previous setting... -
Page 17: Turn Off (Mute) Outputs
EDIDs - 1080i Stereo (embedded 8), I/O - All Outputs set to Input 1, DHCP (8x8 only) - Enabled. Display Readout (Example) 1. Press DEFAULT 2. Press DEFAULT 3. Press DEFAULT 4. Press DEFAULT 5. Press ENTER Note that resetting factory defaults can take up to 2 minutes to complete. pg.17 © 2011 Binary... -
Page 18: Specifications
B-100 HDMATRIX Installation and Users Manual 4X4 & 8X8 7. SPECIFICATIONS B-100-HDMATRIX-4x4 B-100-HDMATRIX-8x8 Technical Product Type True 4x4 HDMI matrix True 8x8 HDMI matrix HDMI compliance Full HD 1080P60, Deep Color (36bit), Full HD 1080P60, Deep Color 3D (1.4a 3D) (36bit), 3D (1.4a 3D) -
Page 19: Warranty
This warranty shall not apply to products which have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV® or a designated service center with prior notification and an assigned return authorization number (RA). pg.19 © 2011 Binary... - Page 21 © 2011 Binary 120531-1230...
