The page includes the following fields:
Object

VLAN ID

Querier Version

Host Version

Querier Status

Querier Transmit
 Querier Receive
 V1 Reports Receive
 V2 Reports Receive
 V3 Reports Receive
 V2 Leave Receive
Buttons
: Click to refresh the page immediately.
: Clears all Statistics counters.
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.

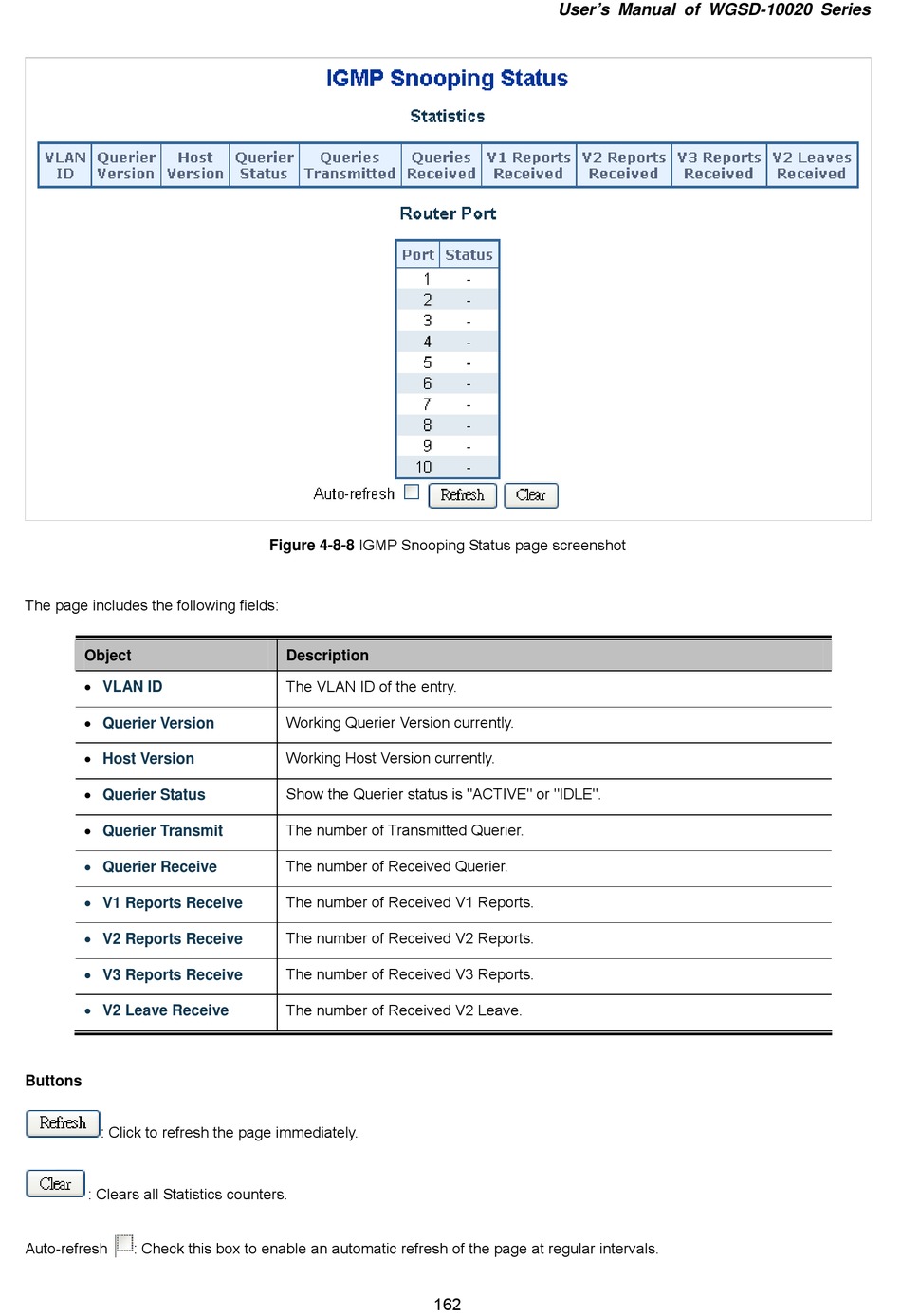

Figure 4-8-8 IGMP Snooping Status page screenshot
Description
The VLAN ID of the entry.
Working Querier Version currently.
Working Host Version currently.
Show the Querier status is "ACTIVE" or "IDLE".
The number of Transmitted Querier.
The number of Received Querier.
The number of Received V1 Reports.
The number of Received V2 Reports.
The number of Received V3 Reports.
The number of Received V2 Leave.
