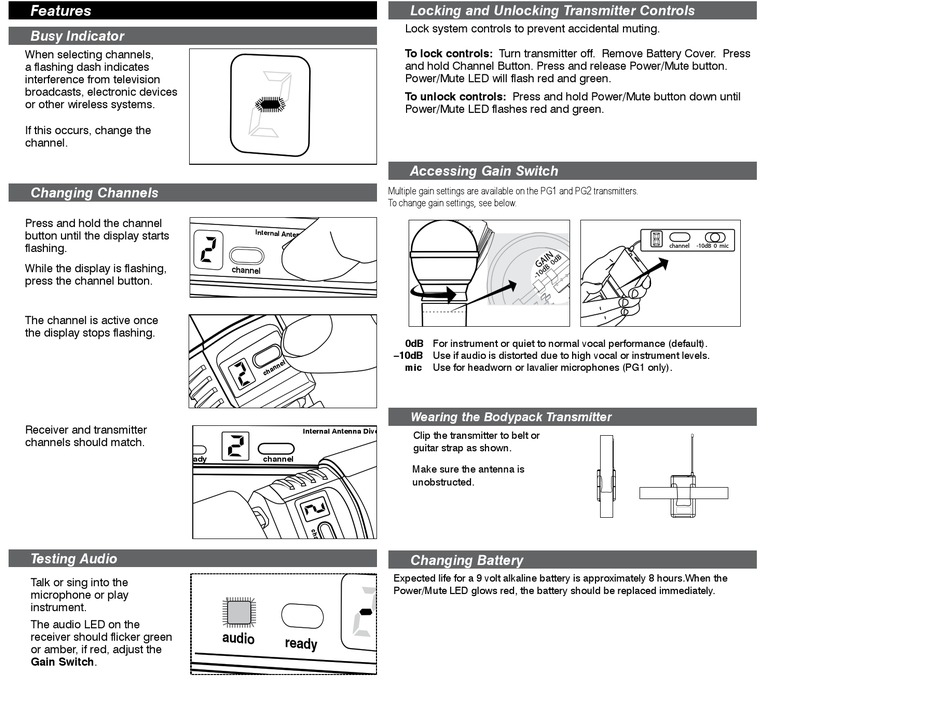

Changing Channels; Changing Battery - Shure microphone system Manual

Features
Busy Indicator
When selecting channels,
a flashing dash indicates
interference from television
broadcasts, electronic devices
or other wireless systems.
If this occurs, change the
channel.

Changing Channels

Press and hold the channel
button until the display starts
flashing.
au dio
rea dy
While the display is flashing,
press the channel button.
The channel is active once
the display stops flashing.
Receiver and transmitter
channels should match.
audio ready
Testing Audio
Talk or sing into the
microphone or play
instrument.
The audio LED on the
receiver should flicker green
or amber, if red, adjust the
Gain Switch.
Multiple gain settings are available on the PG1 and PG2 transmitters.
To change gain settings, see below.
Int ern al An ten
ch an ne l
–10dB Use if audio is distorted due to high vocal or instrument levels.
Internal Antenna Diversity
channel
Expected life for a 9 volt alkaline battery is approximately 8 hours.When the
Power/Mute LED glows red, the battery should be replaced immediately.
a u d io
re a d y
Locking and Unlocking Transmitter Controls
Lock system controls to prevent accidental muting.
To lock controls: Turn transmitter off. Remove Battery Cover. Press
and hold Channel Button. Press and release Power/Mute button.
Power/Mute LED will flash red and green.
To unlock controls: Press and hold Power/Mute button down until
Power/Mute LED flashes red and green.
Accessing Gain Switch
0dB For instrument or quiet to normal vocal performance (default).
mic Use for headworn or lavalier microphones (PG1 only).
Wearing the Bodypack Transmitter
Clip the transmitter to belt or
guitar strap as shown.
Make sure the antenna is
unobstructed.

Changing Battery

In te rn al D iv er
c h a n n e l
