Shure Performance Gear User Manual

System Components
english

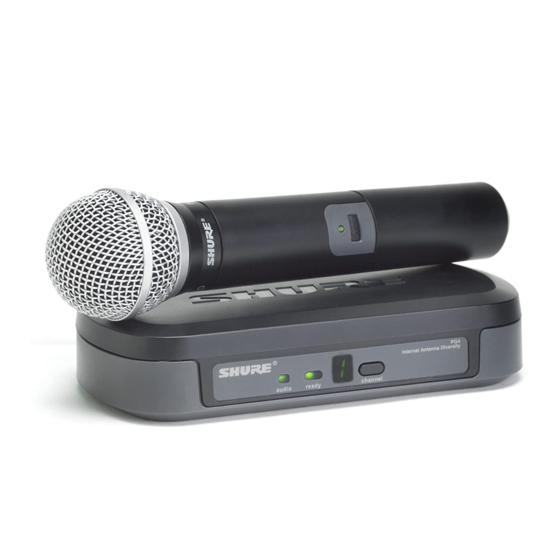

PG4 Wireless
Receiver
C
hassle-free setup for worry-free
ongratulations on
performance.
purchasing your Shure
Performance Gear Wireless
Performance Gear Wireless
systems are available in a
system. Shure professional
variety of configurations for
audio products deliver
handheld, guitar, headset, and
legendary sound quality,
presentation applications.
stage-proven durability and
Headworn Mic
©2006, Shure Incorporated Printed in U.S.A.
27EN8865 (Rev. 2)
pgw_en.indd 1
Startup
Follow these simple steps to check for interference and to
set your receiver and transmitter to the same channel
PS20
Power Supply
Turn OFF the microphone
1
or bodypack.
If left on, it will create a false
busy indicator.
PG88 Dual Wireless Receiver
Plug in the power supply.
2
The channel display should
illuminate.
There is no power switch.
PG1
Bodypack
Press and hold down the
3
Transmitter
channel button until the
display begins flashing.
PG2 Handheld
Transmitter
audio
PG185 If you see the Busy
Lavalier Mic Indicator (a flashing dash)
change the channel.
Wait for the channel display
4
to stop flashing.
PG30 audi o
If you haven't installed the
5
battery, do it now and leave the
cover off.
.
Turn ON the handheld or
6
bodypack transmitter by
pressing the power button.
The channel display should
illuminate.
It turns off after ten seconds to
conserve battery.
Check to see that the
7
transmitter and the receiver
display the same channel.
Internal Anten
audio ready
ready
channel
The ready LED on the receiver
should be illuminated.
Inter nal Dive r
audio
read y
chan nel
Replace battery cover.
8
Features
Busy Indicator
When selecting channels,
a flashing dash indicates
interference from television
broadcasts, electronic devices
or other wireless systems.
If this occurs, change the
channel.
Changing Channels
Press and hold the channel
button until the display starts Interna l Anten
flashing.
audio
While the display is flashing, ready
chann el
press the channel button.
The channel is active once
the display stops flashing.
Receiver and transmitter
Internal Antenna Diversity
Internal Antenna Diversity
channels should match.
channel
audio ready channel
Testing Audio
Talk or sing into the
Internal Diversity Antenna Syste
microphone or play
instrument.
ready channel
The audio LED on the
aud io
receiver should flicker green
rea dy
or amber, if red, adjust the
Gain Switch.
Locking and Unlocking Transmitter Controls
Lock system controls to prevent accidental muting.
To lock controls: Turn transmitter off. Remove Battery Cover. Press
and hold Channel Button. Press and release Power/Mute button.
Power/Mute LED will flash red and green.
To unlock controls: Press and hold Power/Mute button down until
Power/Mute LED flashes red and green.
Accessing Gain Switch
Multiple gain settings are available on the PG1 and PG2 transmitters.
To change gain settings, see below.
0dB For instrument or quiet to normal vocal performance (default).
–10dB Use if audio is distorted due to high vocal or instrument levels.
mic Use for headworn or lavalier microphones (PG1 only).
Wearing the Bodypack Transmitter
Clip the transmitter to belt or
guitar strap as shown.
Make sure the antenna is
unobstructed.
Changing Battery
Inte rna l Div er
Expected life for a 9 volt alkaline battery is approximately 8 hours.When the
Power/Mute LED glows red, the battery should be replaced immediately.
cha nne l
