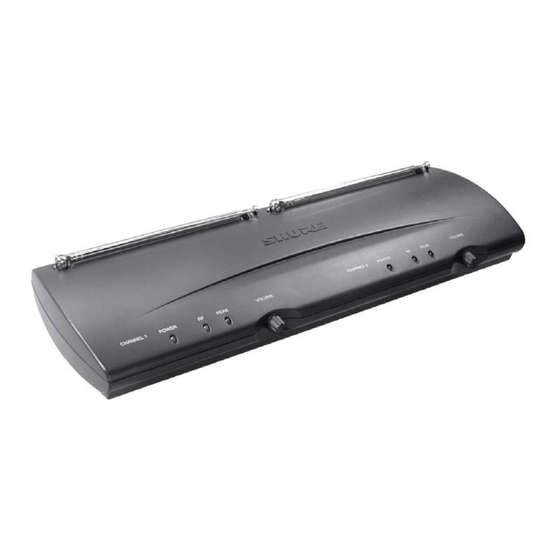

- Page 1 The Twin Pro Wireless Microphone System User Guide The Twin Pro Wireless Microphone System User Guide ©2006 Shure Incorporated Printed in U.S.A. 27C8642 (Rev.
-
Page 2: Table Of Contents
TABLE OF CONTENTS -- ENGLISH Introduction Description Using the T88 Wireless Receiver Using the T2 Hand-Held Microphone Transmitter ... English Using the T1 Body-Pack Transmitter Tips and Troubleshooting Specifications and Information ... English ... English ... English ... English ... English... -
Page 3: Introduction
System Combinations The Twin Pro system includes one of the following three transmit- ter combinations: • Two handheld microphone transmitters (includes two swivel adapters and two anti-roll devices) • Two body-pack transmitters with lavalier microphones • One handheld microphone and one body-pack transmitter... - Page 4 A small screwdriver is supplied to make adjustments. Microphone Input Connector. 4-Pin miniature connec- tor provides connection to a variety of lavalier and head- set microphone cables, and the Shure WA302 instrument adapter cable. supplied with a mount that clips onto a tie, lapel, or acoustic instrument.
-
Page 5: Transmitter Battery Installation
See the Transmitter Audio Gain Adjustment section. 5. During the performance or presentation, slide the MIC ON/ MUTE switch to the MUTE position when the microphone is not being used. 6. When the performance or presentation is over, slide the trans- mitter POWER ON/OFF switch to the OFF position to con- serve battery power. -
Page 6: Gain Adjustment
Operating T1 Body-Pack Transmitters Ñ NOTE: The T1 body-pack system is designed for use with other equipment, such as lavalier microphones, guitars, headset microphones, etc. See your Shure dealer for details on ordering the proper equipment for your needs. Ñ ÑÑ ÑÑ... -
Page 7: Transmitter Audio Gain Adjustment
• Turn up receiver audio VOLUME control. • Check for proper connection between receiver and karaoke unit. • Talk into microphone and observe receiver audio level lights. If they glow, the problem is elsewhere in the sound system. • Check battery. -
Page 8: Specifications
Plastic Screwdriver ... 65A1659 Swivel Adapter (hand-held only) ... WA370A +5 V Anti-Roll Device (hand-held only) ... 66A8043 Optional Accessories Microphone Adapter Cable (T1)...WA310 4-Pin Female Mini Connector TA4F (T1) ...WA330 In-Line Audio Switch (T1)...WA360 T1 MIC JACK BOARD +5 V 1.8 Meter (6 ft.) Receiver-Mixer Cable...WA410... -
Page 9: Licensing Information
Your letter should include all pertinent details including applicable model or part numbers and a brief de- scription of the problem. Do not mail any units or parts to Shure unless requested to do so by Shure's Service Department. Any re- turned items must have prior authorization. - Page 10 United States, Canada, Latin America, Caribbean: 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446 Europe, Middle East, Africa: Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414 Asia, Pacific: Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055...
