Moog Videolarm PFD75C2N Product Instructions

Ip ready series - pressurized fusiondome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

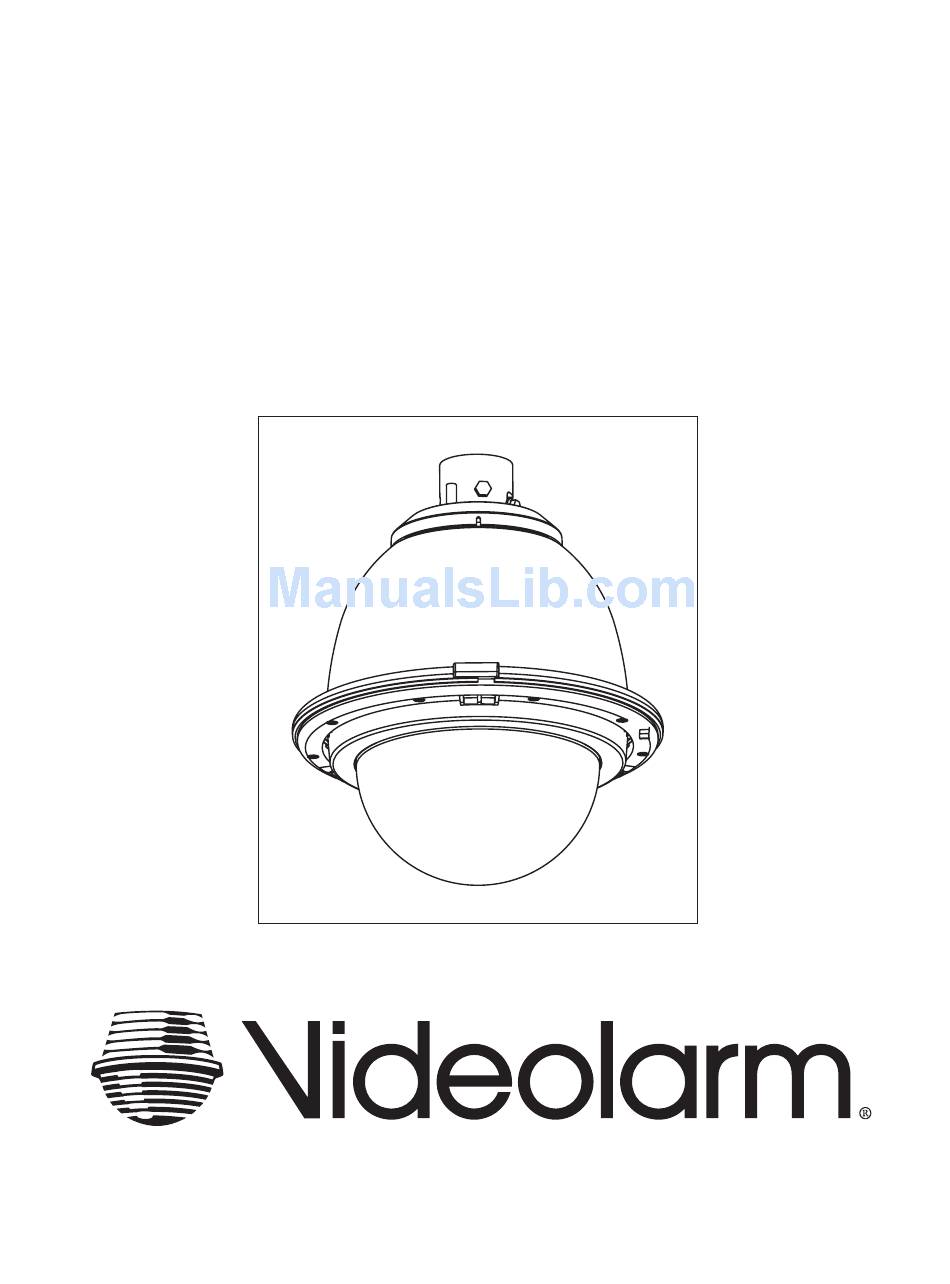

Product
Instructions
IP Ready
Series - Pressurized FusionDome
™
™
PFD75C2N & PFD75T2N
Before attempting to connect or operate this product,
please read these instructions completely.
81-IN5353
06/05/06
-  -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFD75C2N and is the answer not in the manual?

Questions and answers

Related Manuals for Moog Videolarm PFD75C2N

Summary of Contents for Moog Videolarm PFD75C2N

  • Page 1 Product Instructions IP Ready Series - Pressurized FusionDome ™ ™ PFD75C2N & PFD75T2N Before attempting to connect or operate this product, please read these instructions completely. 81-IN5353 06/05/06 -  -...
  • Page 2 iMPoRtant safEGuaRDs safEtY PRECautions 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. Caution 2. Retain Instructions - T he safety and operating instructions should be retained for future reference. Risk of 3. Heed Warnings - All warnings on the unit and in the operating instructions ElECtRiC shoCk! should be adhered to. 4. Follow Instructions - All operating & user instructions should be followed. Caution: to REDuCE thE Risk of 5. Electrical Connections - Only a qualified electrician should make electrical ElECtRiCal shoCk, Do not EXPosE connections.
  • Page 3 PFD75C2N, PFD75T2N IP Ready Pressurized Network Housing IP Ready Pressurized Network Housing with 24Vac input, wall or pendant mounting, heater & blowers, ready for standard IP PTZ cameras. Includes 120 to 24Vac, 100Va transformer. ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY): Power 24Vac, Class 2 Only...

  • Page 4: Table Of Contents

    ASSEMBLING THE UNIT (cont.): Gooseneck Wall Mount INSTALLATION OF PTZ CAMERA See model for specific instruction. Listed on the following pages are the specific instructions for each of the individual network cameras. See specific instruction for the model that matches the unit you have. INDEX OF CAMERAS AXIS 213 AXIS 214...

  • Page 5: Axis 213

    INSTALLING QUICK RELEASE BRACKETS AXIS 213 2539 Mounting Plate: Attach camera using these (2) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 6: Axis 214

    INSTALLING QUICK RELEASE BRACKETS AXIS 214 2685 Mounting Plate: Attach camera using these (3) holes 2" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 7: Axis 231D/232D

    INSTALLING QUICK RELEASE BRACKETS AXIS 231D/232D 2685 Mounting Plate: Loosen screw Attach camera using these (3) holes 3. Position the locking pins and locking screw over the key hole slots and twist clockwise. Secure locking screw. Keyhole slot (3) Locking screw 4.
  • Page 8 Installing the Axis 231D/232D Camera (cont.) 7. Housing with 2685 mounting plate installed. 10. Locate the connector block, which is included 8. Since the 231D/232D camera operates on 24vac, the power with the camera. Then board that is located inside the housing is not needed. The locate the connector remove the power board, start by loosening the screws block bracket, which...
  • Page 9 Installing the Axis 231D/232D Camera (cont.) 13. To manage the input cable running from the connector block to the camera use the (2) cable tie mounts and cable ties that are located in the housing packet. Cable Tie Mounts 12. Make wiring connections to connector block assembly per camera instructions.

  • Page 10: Canon Vb-C10R

    INSTALLING QUICK RELEASE BRACKETS CANON VB-C10R 2539 Mounting Plate: Attach camera using these (2) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 11: Canon Vb-C50Ir

    INSTALLING QUICK RELEASE BRACKETS CANON VB-C50iR 2539 Mounting Plate: Attach camera using these (2) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 12: Canon Vc-C4R / Vc-C50Ir

    INSTALLING QUICK RELEASE BRACKETS CANON VC-C4R / VC-C50iR 2539 Mounting Plate: Attach camera using these (2) holes 1" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 13: Elmo Ptc-200C

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-200C Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes ½" 1" 2. The Elmo PTC-200C camera requires 3.5" of spacing for optimal position within the housing.

  • Page 14: Elmo Ptc-201

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-201 Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes ½" 2. The Elmo PTC-201 camera requires 2½" of spacing for optimal position within the housing.

  • Page 15: Elmo Ptc-400C

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-400C Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes ½" 1" 2. The Elmo PTC-400C camera requires 3.5" of spacing for optimal position within the housing.

  • Page 16: Elmo Ptc-401

    INSTALLING QUICK RELEASE BRACKETS ELMO PTC-401 Mounting plate for this unit is included in the housing packet. Remove existing mounting plate installed in the unit before proceeding. 2539 Mounting Plate: Attach camera using these (4) holes 1" 2. In the packet, there will be a number of 2 inch and 1 inch spacers.

  • Page 17: Jvc Vn-C30U

    INSTALLING QUICK RELEASE BRACKETS JVC VN-C30U 2539 Mounting Plate: Attach camera using these (3) holes ½" 2. In the packet, there will be a number of 2 inch and ½ inch spacers. Take four of the ½ inch spacers and screw them onto the spacers that are on the base 2"...

  • Page 18: Jvc Vn-C625U / Tk-625U

    INSTALLING QUICK RELEASE BRACKETS JVC VN-C625U / TK-625U 1" 1" 3. The JVC VN-C625U / TK-625U requires a total of 2” of spacing to properly position the camera within the housing. 1. Remove plastic cover (1 screw). 4. Attach (4) 1” spacers to the 2630 mounting plate in the position shown.

  • Page 19: Jvc Vn-C655U

    INSTALLING QUICK RELEASE BRACKETS JVC VN-C655U 2630 Mounting Plate: Attach camera using these (4) holes 1. Place the camera onto the quick release bracket using ½" the (4) metric 3M Phillips head screws provided with the kit. 1" 2. The JVC VN-C655U requires 1 ½ “ to properly position the camera within the housing.

  • Page 20: Panasonic Bb-Hcm381 / Kx-Hmc280

    INSTALLING QUICK RELEASE BRACKETS PANASONIC BB-HCM381 / KX-HMC280 2539 Mounting Plate: Attach camera using this hole ½" 1" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 21: Pixord 261 / 262

    INSTALLING QUICK RELEASE BRACKETS PIXORD 261 / 262 2630 Mounting Plate: Attach camera using these (3) holes ½" 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above. Be sure to place the screws so that they line up with the open slots on the mounting plate.

  • Page 22: Sony Sncrz25

    INSTALLING QUICK RELEASE BRACKETS SONY SNCRZ25 2539 Mounting Plate: Attach camera using these (3) holes 1" 2. The SNCRZ25 require 1” of spacing to properly position the camera in the housing. Use (4) 1” spacers provided in the hardware packet. 3.

  • Page 23: Sony Sncrz30

    INSTALLING QUICK RELEASE BRACKETS SONY SNCRZ30 2539 Mounting Plate: Attach camera using this hole 2" 2. The SNCRZ30 require 2” of spacing to properly position the camera within the housing. Use (4) 2” spacers provided in the hardware packets. 3. Place (3) 8 x 32 x s Phillips head screws on the top of the spacer as shown above.

  • Page 24: Sony Sncrz50

    INSTALLING QUICK RELEASE BRACKETS SONY SNCRZ50 2539 Mounting Plate: Attach camera using this hole ½" 2" 2. The SONY SNCRZ50 require 2 ½ ” of spacing to properly position the camera within the housing. Use (4) 2” spacers plus (4) ½ “ spacers provided in the hardware packet.

  • Page 25: Toshiba Ik-Wb21A

    INSTALLING QUICK RELEASE BRACKETS TOSHIBA IK-WB21A 2539 Mounting Plate: Attach camera using these (4) holes 1" 2" 2. The Toshiba 1K-WB21A requires 3” of spacing to properly position the camera within the housing. Use (4) 2” spacers plus (4) 1” spacers provided in the hardware packets.
  • Page 26 IMPORTANT SAFEGUARDS NOTE: The PFD75C2N is a pressurized enclosure. As such, certain care is required for the safe use of the product. 1. Inspect the enclosure upon opening the box. Make sure the unit was not damaged during shipping. Immediately replace domes that have been cracked or show any signs of damage.
  • Page 27 STANDARD INSTALLATION PROCEDURES 4. Mount the WM20G to the wall (hardware not included). (Figure 3) INCLUDES MODEL: WM20G 1. Choose an appropriate location on an outside wall to mount the WM20G. NOTE: Be sure that the wall is sturdy enought to support the combined weight of the bracket and housing.
  • Page 28 MOUNTING THE HOUSING GENERAL INSTRUCTIONS 1. Mount the housing assembly to the mounting bracket and The RH7C/N1 is setup with (2) individual power inputs. housing coupling. A safety cable is included to temporarily 1. Accessory Power (yellow and green wire) hold it while making wiring connections.
  • Page 29 CALIBRATING UNITS WITH LOW PRESSURE SENSORS Pressurized housings provide maximum protection for CCTV cameras and lenses. The charge of dry nitrogen inside the housing eliminates the effects of moisture, dust, insects and The Low Pressure alarm uses and absolute pressure sensor corrosive exhaust fumes.
  • Page 30 Exploded View for Replacement Parts - 0 -...
  • Page 31 Replacement Parts List Part No. Description RPPFDT02 Housing Top (Extended) RPVL1938 Removable Pendent Coupling RPVL1802 Plastic Rain Shroud RPVL1795 Tank Valve Gasket RP96RSORG11 Main O-ring 9.25" RPPFDTR01 Trim Ring w/o Dome RCPFD7 Clear Dome with sealing o-ring RCTPFD7 Tinted Dome with sealing o-ring RPPFDT03 Internal Sealing Bracket Assembly RP96RSORG10...
  • Page 32 Mounting Template R .733 2.132 5.500 1.537 2.981 2.000 3.250 -  -...
