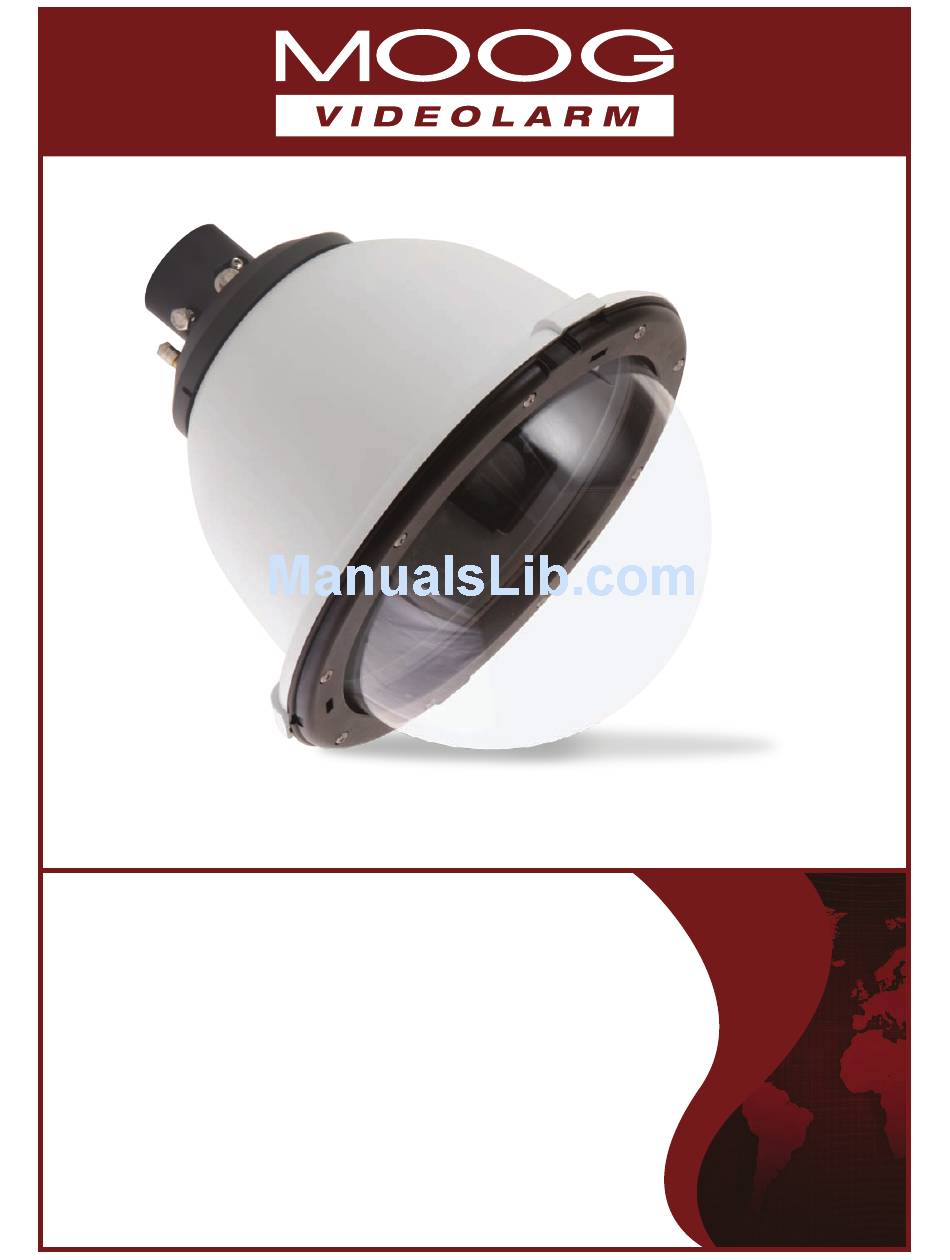

© 2011, Moog Videolarm, Inc. All Rights Reserved
P F D W 7 5 C 1 2 N a n d P F D W 7 5 T 1 2 N
IP Ready™ Series - Pressurized FusionDome™
www.videolarm.com
Installation and Operation Instructions for the following models:
81-IN5371
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5481 Instruction Manual.
01-13-2012
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm PFDW75C12N
Summary of Contents for Moog Videolarm PFDW75C12N
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P F D W 7 5 C 1 2 N a n d P F D W 7 5 T 1 2 N IP Ready™ Series - Pressurized FusionDome™ www.videolarm.com Installation and Operation Instructions for the following models: 81-IN5371 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). - Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: General Instructions
PFD75C12N, PFD75T12N IP Ready Pressurized Network Housing IP Ready Pressurized Network Housing with 12Vdc input, wall or pendant mounting, heater & blowers, ready for standard IP PTZ cameras. ELECTRICAL SPECIFICATIONS (OUTDOOR ONLY): Power 12Vdc, Class 2 Only Total Power: 22 watts (Excluding camera) Accessories (Heater/Blower): 22 watts Heater: 20 watts Blower: 2 watt... - Page 5 IMPORTANT SAFEGUARDS NOTE: The PFD75C12N is a pressurized enclosure. As such, certain care is required for the safe use of the product. 1. Inspect the enclosure upon opening the box. Make sure the unit was not damaged during shipping. Immediately replace domes that have been cracked or show any signs of damage.
- Page 6 STANDARD INSTALLATION PROCEDURES 4. Mount the WM20G to the wall (hardware not included). (Figure 3) WM20G INCLUDES MODEL: 1. Choose an appropriate location on an outside wall to mount the WM20G. NOTE: Be sure that the wall is sturdy enough to support the combined weight of the bracket and housing.
- Page 7 MOUNTING THE HOUSING GENERAL INSTRUCTIONS The PFD75C12N is setup with (1) power input. 1. Mount the housing assembly to the mounting bracket and housing 1. Accessory Power (yellow and green wire) coupling. A safety cable is included to temporarily hold it while making wiring connections.
- Page 8 CALIBRATING UNITS WITH LOW PRESSURE SENSORS Pressurized housings provide maximum protection for CCTV cameras and lenses. The charge of dry nitrogen inside the housing eliminates the effects (Not supplied on 12Vdc units) of moisture, dust, insects and corrosive exhaust fumes. This allows a longer The Low Pressure alarm uses and absolute pressure sensor and must be lifetime for your surveillance equipment.
- Page 9 Exploded View for Replacement Parts - 9 -...
- Page 10 Replacement Parts List Part No. Description RPPFDT02 Housing Top (Extended) RPVL1938 Removable Pendent Coupling RPVL1802 Plastic Rain Shroud RPVL1795 Tank Valve Gasket RP96RSORG11 Main O-ring 9.25" RPPFDTR01 Trim Ring w/o Dome RCPFD7 Clear Dome with sealing o-ring RCTPFD7 Tinted Dome with sealing o-ring RPPFDT03 Internal Sealing Bracket Assembly RP96RSORG10...
- Page 11 Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators.
