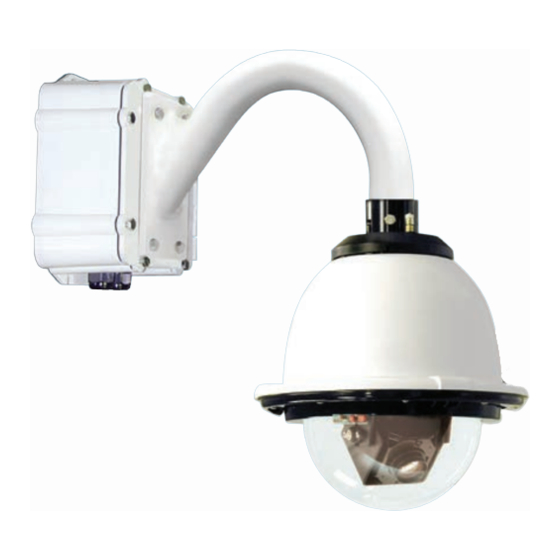

PurgeDome

Explosion-Proof Camera System

Moog offers an Explosion Proof camera system the, PurgeDome provides a highly effective solution for monitoring activity in
explosive / hazardous environments. Models include UL Class 1-Division 2 and Class 2-Division 2 certifications. Operating on a
supply of compressed air or inert gas, the PurgeDome system regulates the pressure within the sealed camera enclosure,
protecting it from extremely hazardous fumes or gases, which could ignite in a violent explosion.

Features

UL approved for hazardous locations
(Class 1-Division 2, Class 2-Division 2)
Certified to UL NFPA 496 Purged and Pressurized enclosures
for electrical equipment and to UL NFPA 60950-1 for
information technology equipment
36x optical zoom and 12x digital zoom (432x Total)
Auto focus, high-res integrated day and night IR sensitive
camera / lens package
IP66 rating for water and dust ingress
360° continuous rotation
16 user selectable privacy zones
Integrated power box, 110 / 220Vac input
Filter-regulator with pressure gauge provides clean, protective
gas to the enclosure
Differential pressure gauge indicates internal pressure

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PurgeDome PDW7CN-901 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moog Videolarm PurgeDome PDW7CN-901

  • Page 1 HOUSING CAMERA ENCLOSURES_ SYSTEMS_ PurgeDome ™ Explosion-Proof Camera System Moog offers an Explosion Proof camera system the, PurgeDome provides a highly effective solution for monitoring activity in explosive / hazardous environments. Models include UL Class 1-Division 2 and Class 2-Division 2 certifications. Operating on a supply of compressed air or inert gas, the PurgeDome system regulates the pressure within the sealed camera enclosure, protecting it from extremely hazardous fumes or gases, which could ignite in a violent explosion.
  • Page 2 IP Ready (Network) Digital PTZ: Analog PTZ: ™ PDW7CN-901, 02, 03 PDW7CS-901, 02, 03 Purged dome camera system for hazardous environments, IP network PTZ camera with Purged dome camera system for hazardous environments, analog PTZ camera with 36x 36x zoom lens, day and night, MPEG-4 and MJPEG video compression format, Full D1.

This manual is also suitable for:

Purgedome pdw7cs-901Purgedome pdw7cs-902Purgedome pdw7cn-902Purgedome pdw7cs-903Purgedome pdw7cn-903
