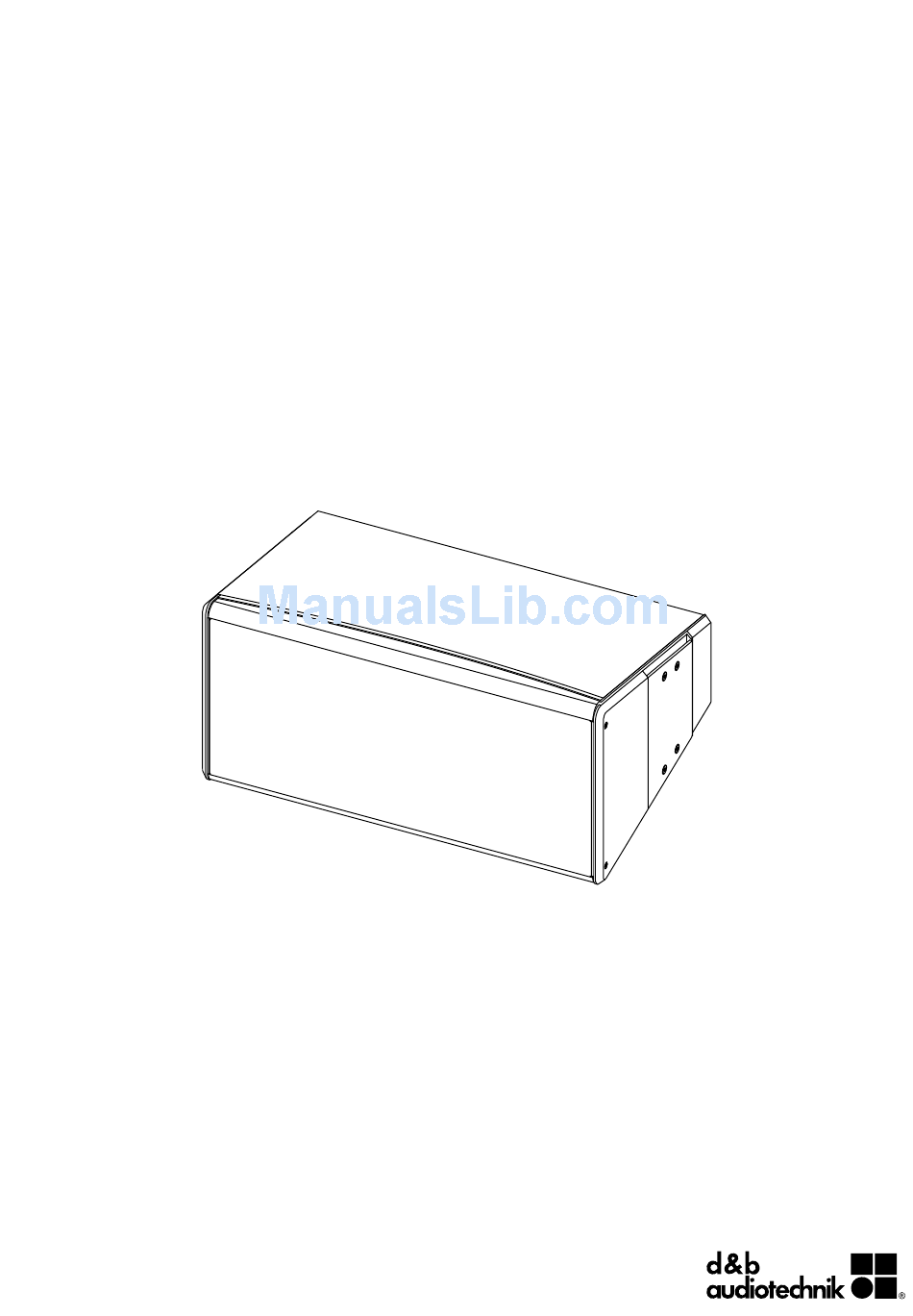

  • Page 1 10A/10A-D Manual (1.1 EN)
  • Page 2 General information 10A/10A-D Manual Version: 1.1 EN, 01/2011, D2610.EN .01 Copyright © 2011 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new customer.

  • Page 3: Table Of Contents

    Contents Safety precautions............4 1.1. Information regarding the use of loudspeakers..4 10A/10A-D loudspeaker..........5 2.1. Product description............5 2.2. Connections..............6 2.3. Operation..............7 2.3.1. Controller settings............ 7 2.4. Dispersion characteristics..........9 2.5. Technical specifications..........11 Manufacturer's Declarations........12 3.1.

  • Page 4: Safety Precautions

    1. Safety precautions 1.1. Information regarding the use of loudspeakers Potential risk of personal injury Never stand in the immediate vicinity of loudspeakers driven at a high level. Professional loudspeaker systems are capable of causing a sound pressure level detrimental to human health. Seemingly non-critical sound levels (from approx.

  • Page 5: A/10A-D Loudspeaker

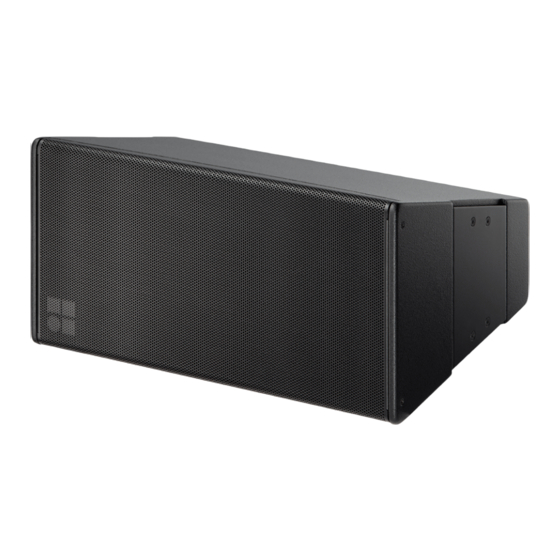

    2. 10A/10A-D loudspeaker 2.1. Product description The 10S, 10A and 10AL and their "D versions" are a family of high performance 2-way loudspeakers employing a single 10” driver in a bass-reflex enclosure and different HF sections for a wide range of installed sound applications.

  • Page 6: Connections

    2.2. Connections The cabinets are fitted with a pair of NL4 connectors and a two pole screw terminal block (ST). All four pins of both NL4 connectors are wired in parallel. The cabinets use the pin assignments 1+/1–. Pins 2+/2– are designated to active subwoofers.

  • Page 7: Operation

    NL4 connection with cover plate The two NL4 connector sockets of the cabinet's connector panel are located in a recess to allow the use of the cover plate [1] together with NL4 cable connectors, as shown in the graphic opposite. Note: Neutrik NL4FC type connectors must be used for this option.
  • Page 8 HFA circuit In HFA mode (High Frequency Attenuation), the HF response of the system is rolled off. HFA provides a natural, balanced frequency response when a unit is placed close to listeners in near field or delay use. High Frequency Attenuation begins gradually at 1 kHz, dropping by approximately 3 dB at 10 kHz.

  • Page 9: Dispersion Characteristics

    2.4. Dispersion characteristics The following graphs show dispersion angle over frequency of a single cabinet plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. vertical setup Fig. 8: Isobar diagram horizontal Fig. 9: Isobar diagram vertical horizontal setup, horn rotated Fig.
  • Page 10 10A-D vertical setup Fig. 12: Isobar diagram horizontal Fig. 13: Isobar diagram vertical 10A-D horizontal setup, horn rotated Fig. 14: Isobar diagram horizontal Fig. 15: Isobar diagram vertical Altering the HF horn dispersion The HF horn can be rotated through 90°. Tools required: Philips screwdriver, Torx wrench (T20).

  • Page 11: Technical Specifications

    2.5. Technical specifications 10A/10A-D system data Frequency response (–5 dB standard) 60 Hz - 18 kHz Frequency response (–5 dB CUT mode) 100 Hz - 18 kHz Max. sound pressure (1 m, free field) 10A with D6/D12 127 dB/130 dB 10A-D with D6/D12 127 dB/130 dB (SPLmax peak, pink noise test signal with crest factor of 4)

  • Page 12: Manufacturer's Declarations

    3. Manufacturer's Declarations 3.1. EU conformity of loudspeakers (CE symbol) This declaration applies to: d&b 10A loudspeaker, Z1555 d&b 10A-D loudspeaker, Z1556 manufactured by d&b audiotechnik GmbH. All production versions of these types are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
  • Page 13 www.dbaudio.com...
