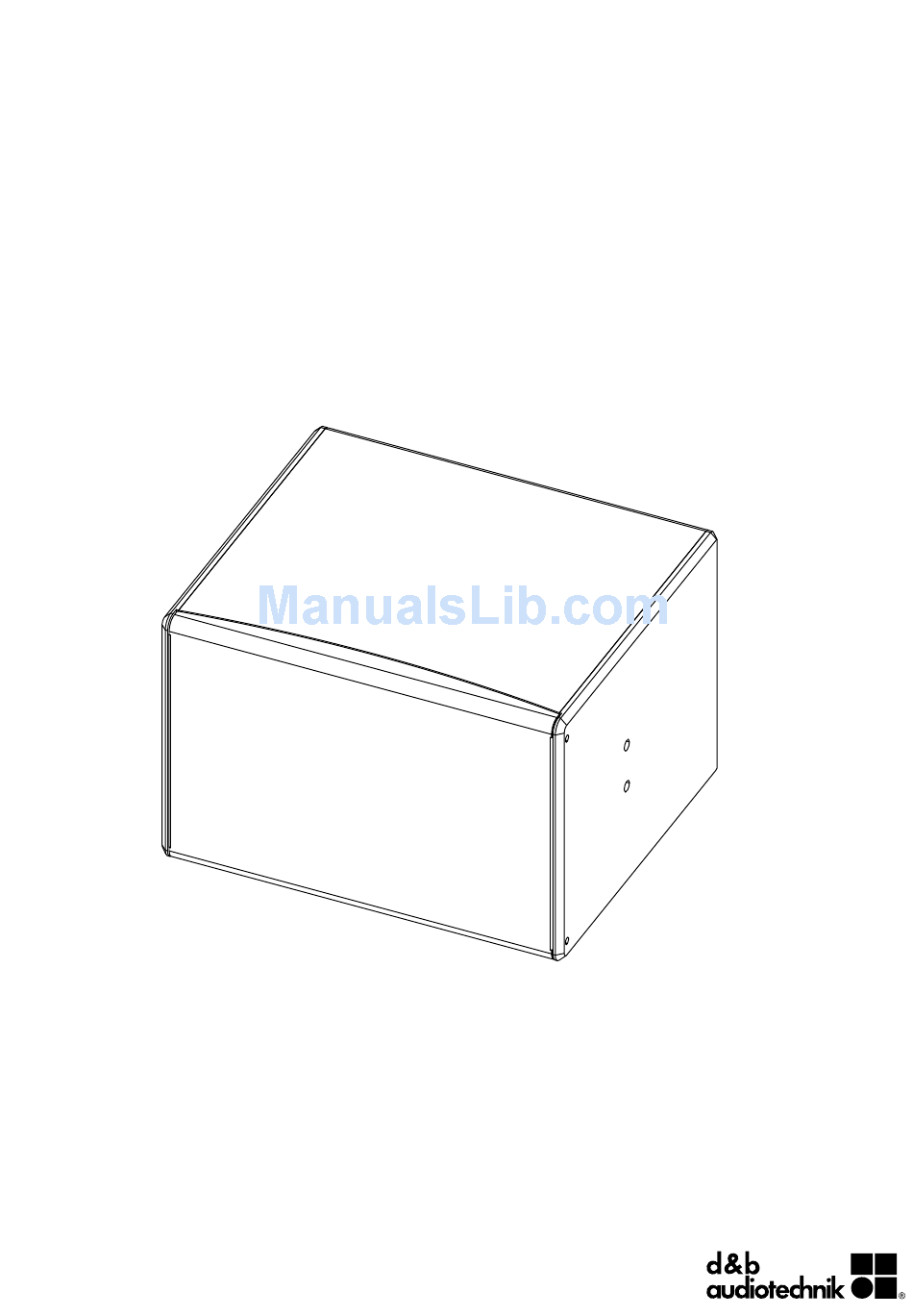

  • Page 1 12S-SUB Manual (1.3 EN)

  • Page 2: General Information

    General information 12S-SUB Manual Version: 1.3 EN, 12/2011, D2615.EN .01 Copyright © 2011 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new customer.

  • Page 3: Table Of Contents

    12S-SUB loudspeaker........... 5 2.1. Product description............5 2.2. Connections..............5 2.3. Operation..............6 2.3.1. Controller settings............ 7 2.4. Technical specifications..........7 Manufacturer's Declarations........8 3.1. EU conformity of loudspeakers (CE symbol)..... 8 3.2. WEEE Declaration (Disposal)........8 d&b 12S-SUB Manual (1.3 EN)

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b 12S-SUB Manual (1.3 EN)

  • Page 5: S-Sub Loudspeaker

    The cabinet is Ball Impact Resistant according to DIN 18032-3. Rigging components The 12S-SUB side panels are each equipped with a pair of M10 threads to accept the Z5412 Horizontal bracket 12S-SUB. The threaded inserts are covered by dummy caps in cabinet color. The caps must be removed before mounting any accessories.

  • Page 6: Operation

    5. 2.3. Operation NOTICE! Only operate d&b loudspeakers with a correctly configured d&b amplifier, otherwise there is a risk of damaging the loudspeaker components. Operation with D6 or D12 Select the controller setup 12S-SUB. d&b 12S-SUB Manual (1.3 EN)

  • Page 7: Controller Settings

    TOP/SUB" mode. For combinations with full range systems fed by a single 4-wire cable "Mix TOP/SUB" mode must be selected. Up to a total of two 12S-SUB loudspeakers can be driven by each channel of the D6 or D12 amplifiers.

  • Page 8: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b 12S-SUB Manual (1.3 EN)
  • Page 9 www.dbaudio.com...
