MHL Source Compliance Testing

You can run MHL compliance testing on source devices in accordance with Section 3
of the MHL Compliance Test Specification using the TPA-MHL-8R and the 980 HDMI
Protocol and Compliance Tester.
Note: You must purchase the MHL source compliance test option as part of the 980
Protocol Analyzer.
For more details on the MHL Source Compliance Test functions of the 980, please
refer to the 980 User Guides available on the Quantum Data 980 product web page at:

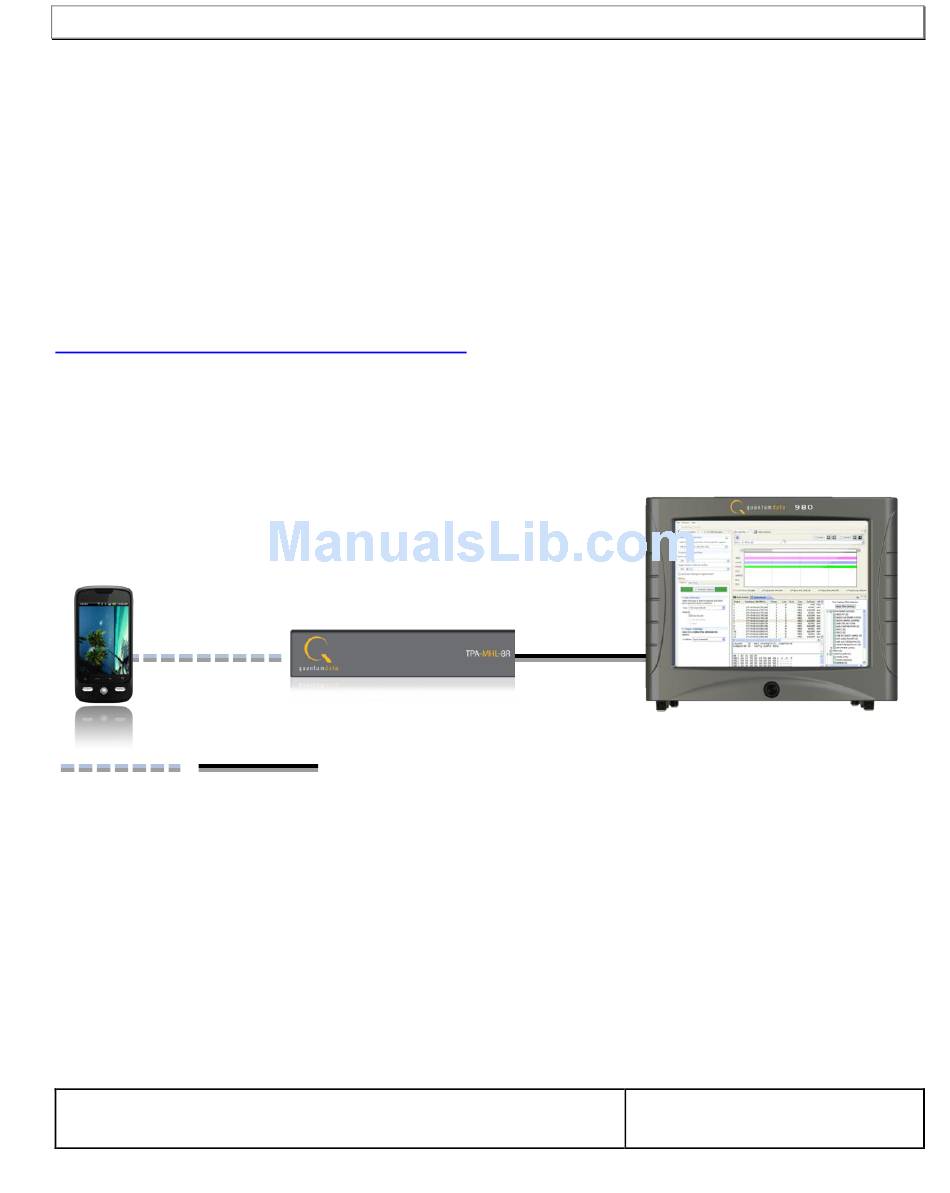

www.quantumdata.com/products/980.asp. Refer to the diagram below for a depiction of
the test setup.
Source
MHL DUT
MHL Cable HDMI Cable
MHL Cable HDMI Cable
