TPA-MHL-8R - Quick Start Guide

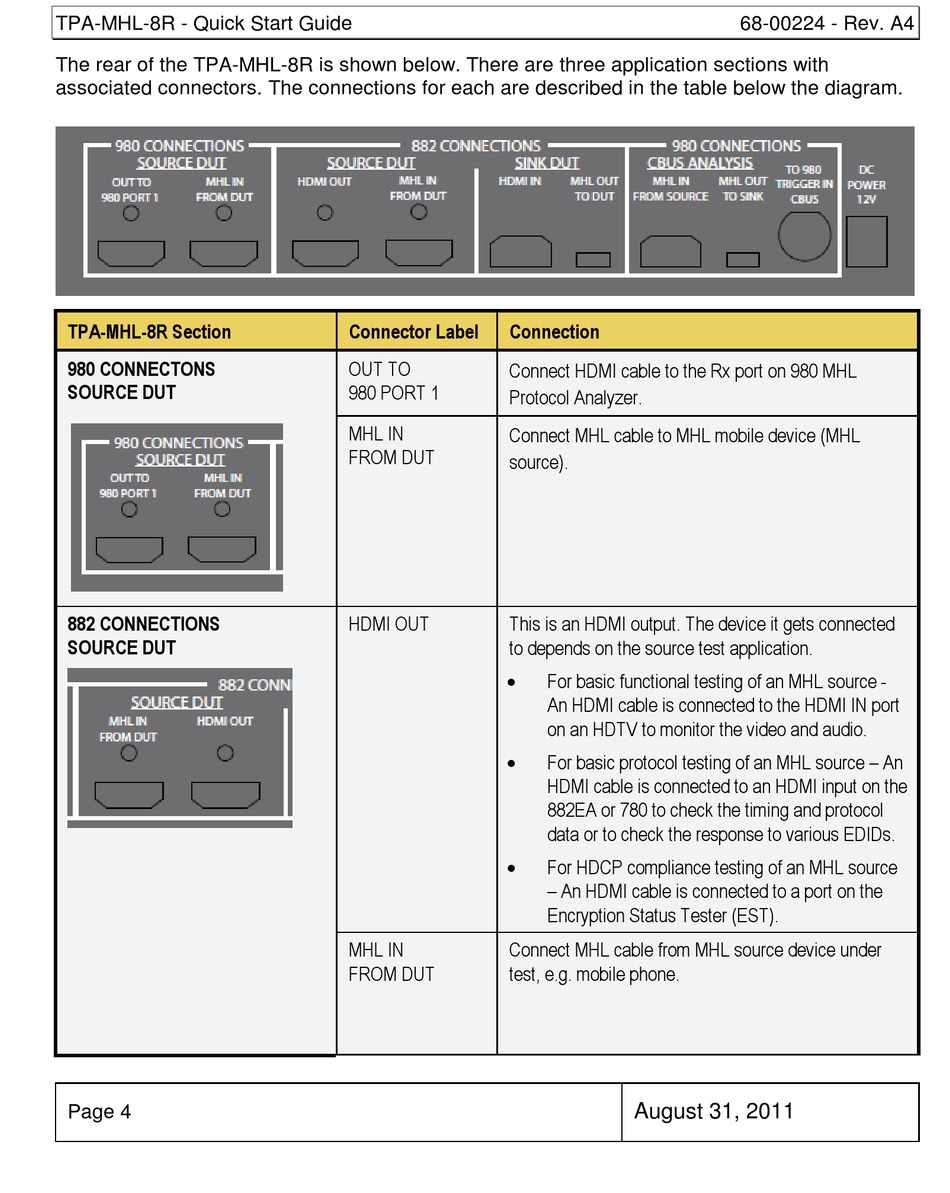

The rear of the TPA-MHL-8R is shown below. There are three application sections with
associated connectors. The connections for each are described in the table below the diagram.
TPA-MHL-8R Section
980 CONNECTONS
SOURCE DUT
882 CONNECTIONS
SOURCE DUT
Page 4
Connector Label Connection
OUT TO
Connect HDMI cable to the Rx port on 980 MHL
980 PORT 1
Protocol Analyzer.
MHL IN
Connect MHL cable to MHL mobile device (MHL
FROM DUT
source).
HDMI OUT This is an HDMI output. The device it gets connected
to depends on the source test application.



MHL IN Connect MHL cable from MHL source device under
FROM DUT test, e.g. mobile phone.
For basic functional testing of an MHL source -
An HDMI cable is connected to the HDMI IN port
on an HDTV to monitor the video and audio.
For basic protocol testing of an MHL source – An
HDMI cable is connected to an HDMI input on the
882EA or 780 to check the timing and protocol
data or to check the response to various EDIDs.
For HDCP compliance testing of an MHL source
– An HDMI cable is connected to a port on the
Encryption Status Tester (EST).
