MHL Applications for Testing MHL Sink Devices

This section describes the MHL test applications supported by Quantum Data test
instruments and utilities for testing MHL sink devices.
4.1

MHL Sink Functional Testing

You can run a functional test on an MHL sink using the TPA-MHL-8R and the 780
HDMI Handheld Test Instrument.
For more details on the HDMI test functions of the 780, please refer to the 780 User
Guide available on the Quantum Data 780 product web page at:
www.quantumdata.com/products/780.asp. Refer to the diagram below for a depiction of
the test setup.

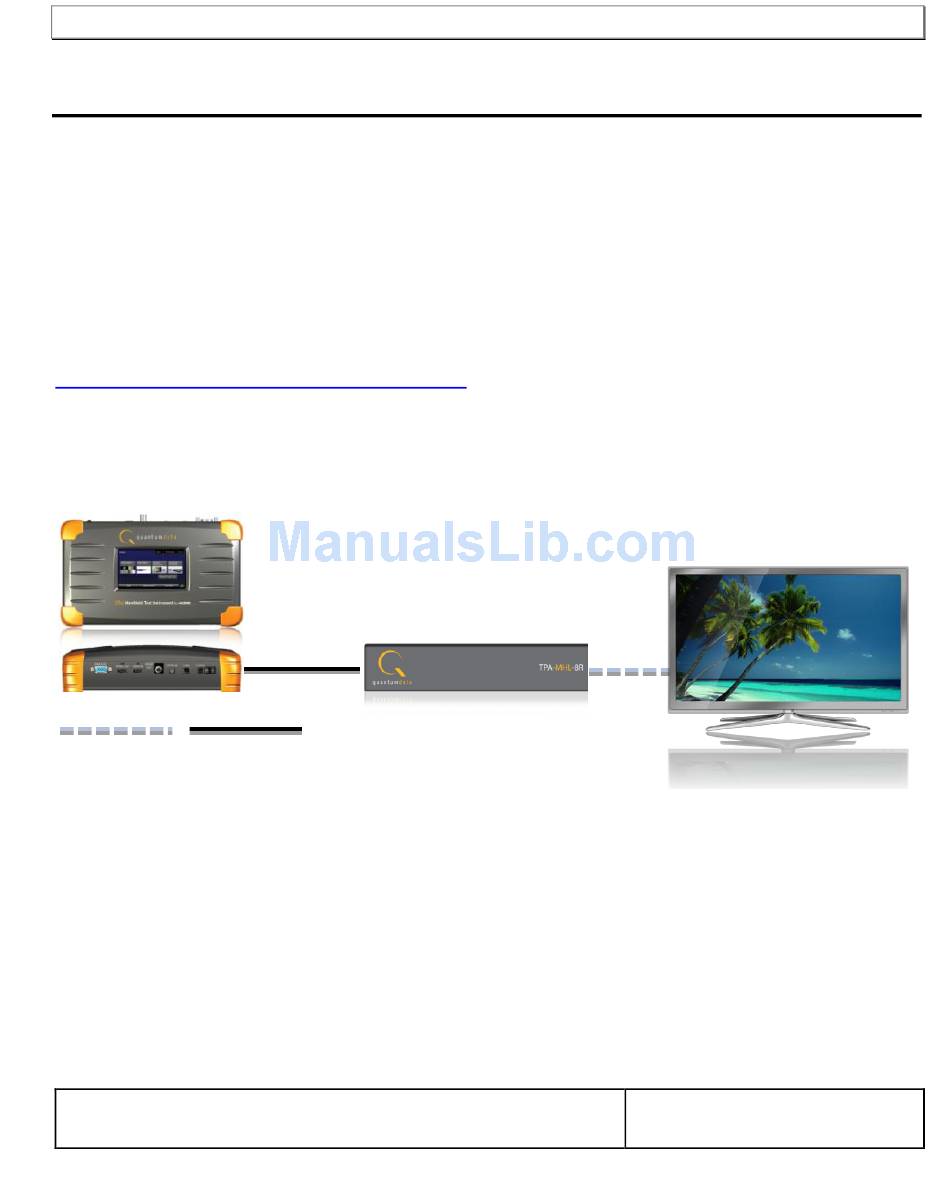

780 HDMI Source
MHL Sink DUT
TPA-MHL-8R
MHL Cable
HDMI Cable
Use the procedure below to make the connections for running the compliance tests on an MHL
sink device.
