TPA-MHL-8R - Quick Start Guide
Use the procedure below to make the connections to the TPA-MHL-8R for conducting basic
functional tests of an MHL source device.
1. Apply power to the TPA-MHL-8R using the power adapter provided.

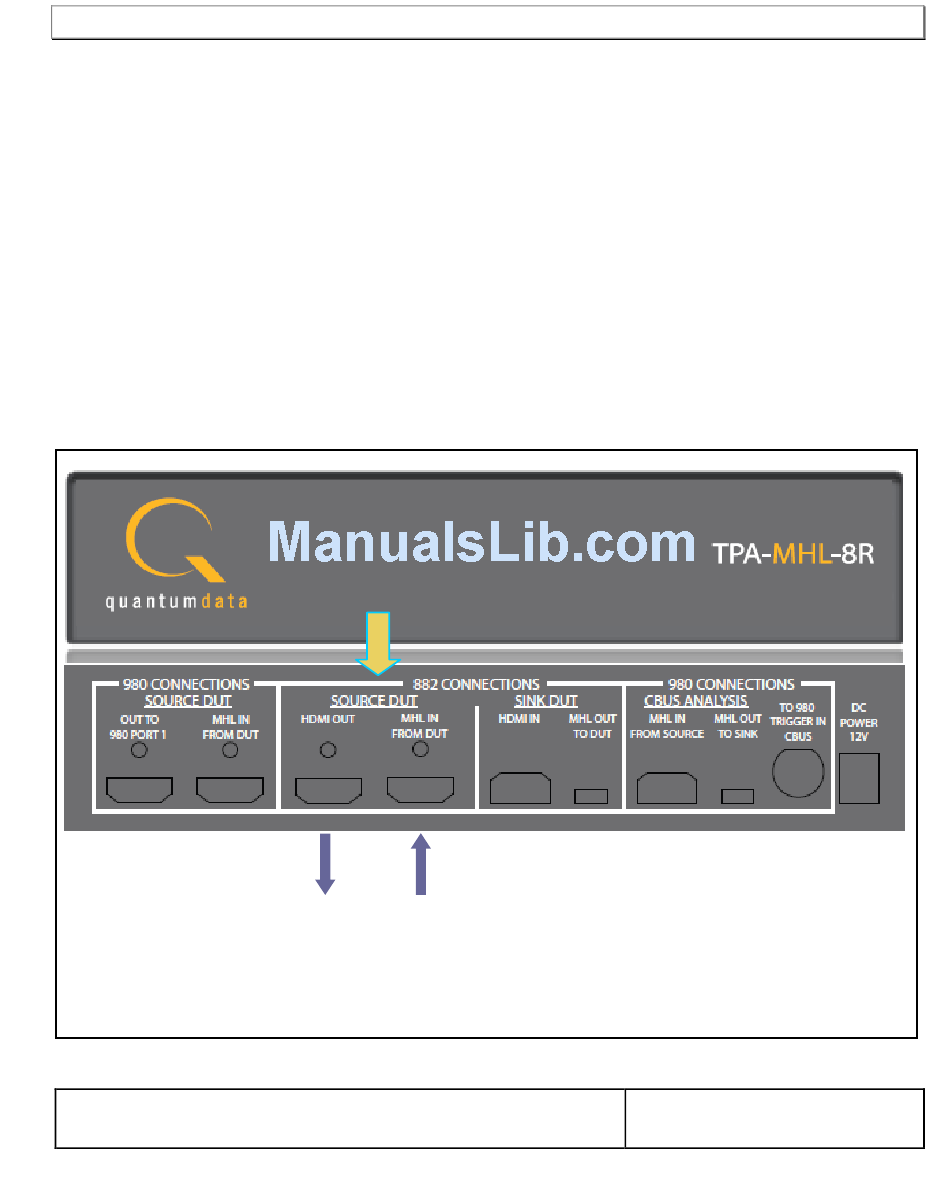

2. Make the connections as shown in the diagram below. For this application you will be using
the section on the TPA-MHL-8R labeled 882 CONNECTIONS – SOURCE DUT.
a. Connect an MHL cable from the MHL source device under test to the MHL IN FROM
DUT connector on the TPA-MHL-8R.
b. Connect an HDMI cable from the HDMI OUT connector of the TPA-MHL-8R to the
HDMI IN connector on the HDMI HDTV.
3. Monitor the HDTV for proper operation.
Page 9
Connect HDMI Connect MHL
cable to HDMI cable to MHL
IN port on mobile device
HDMI HDTV (MHL source)
