Protocol Analysis of MHL Sources

You can conduct protocol analysis of MHL source devices using the TPA-MHL-8R and
the Quantum Data 980 Protocol Analyzer. Protocol analysis enables you to view the
timing, video type, control data and all metadata (e.g. infoframes and data islands) with
precise time stamps in real time or capture and store for analysis. You can also view
the MHL C-Bus traffic.
For more details on the MHL protocol analysis functions of the 980, please refer to the
980 User Guides available on the Quantum Data 980 product web page at:

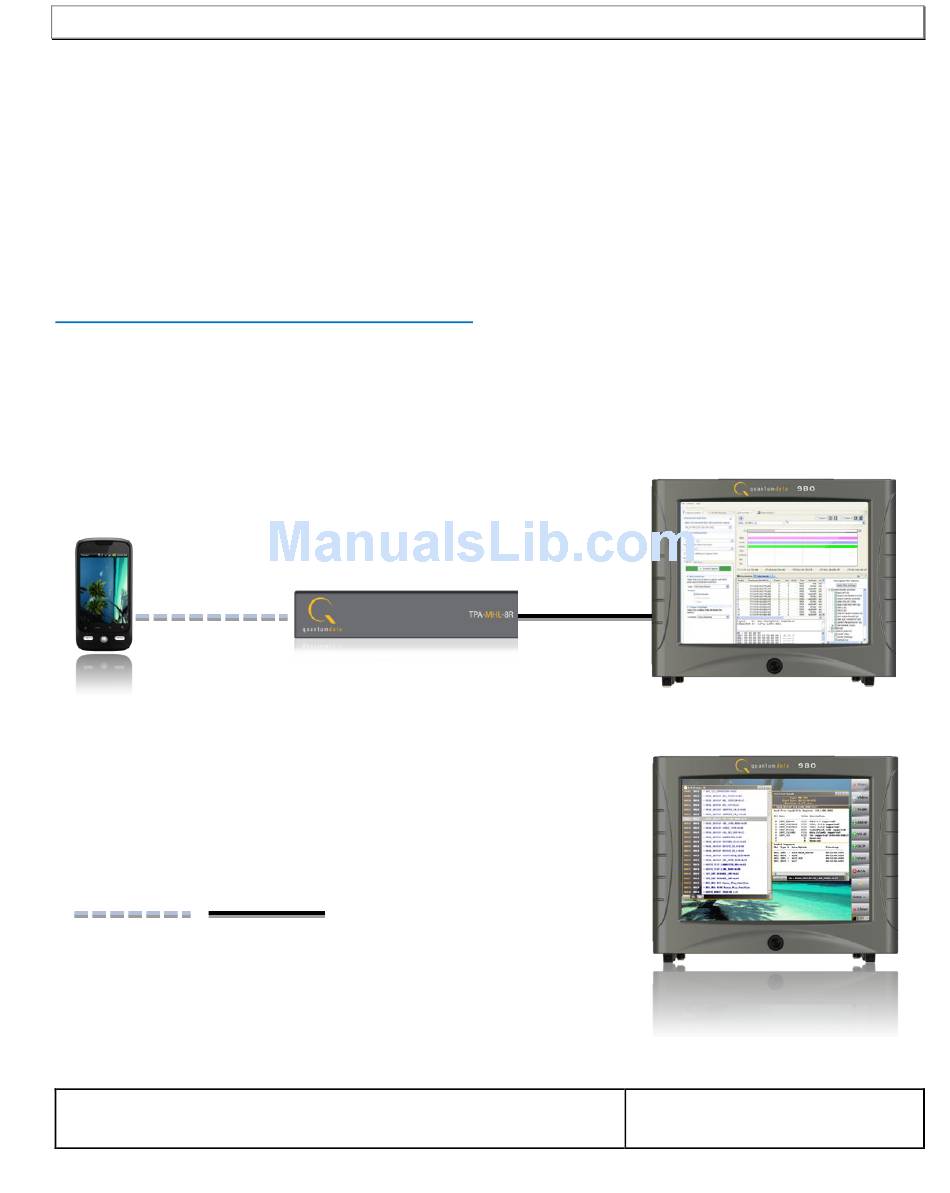

www.quantumdata.com/products/980.asp. Refer to the diagram below for a depiction of
the test setup.
980 Protocol Analyzer
Capture, Store &
Analyze
Source
MHL DUT
TPA-MHL-8R
TPA-MHL-
8R
980 Protocol Analyzer
Real Time Monitoring
MHL Cable HDMI Cable
