Quantum Data TPA-MHL-8R Quick Start Manual page 5

TPA-MHL-8R - Quick Start Guide
TPA-MHL-8R Section
882 CONNECTIONS
SINK DUT
980 Connections
CBUS ANALYSIS
Page 5

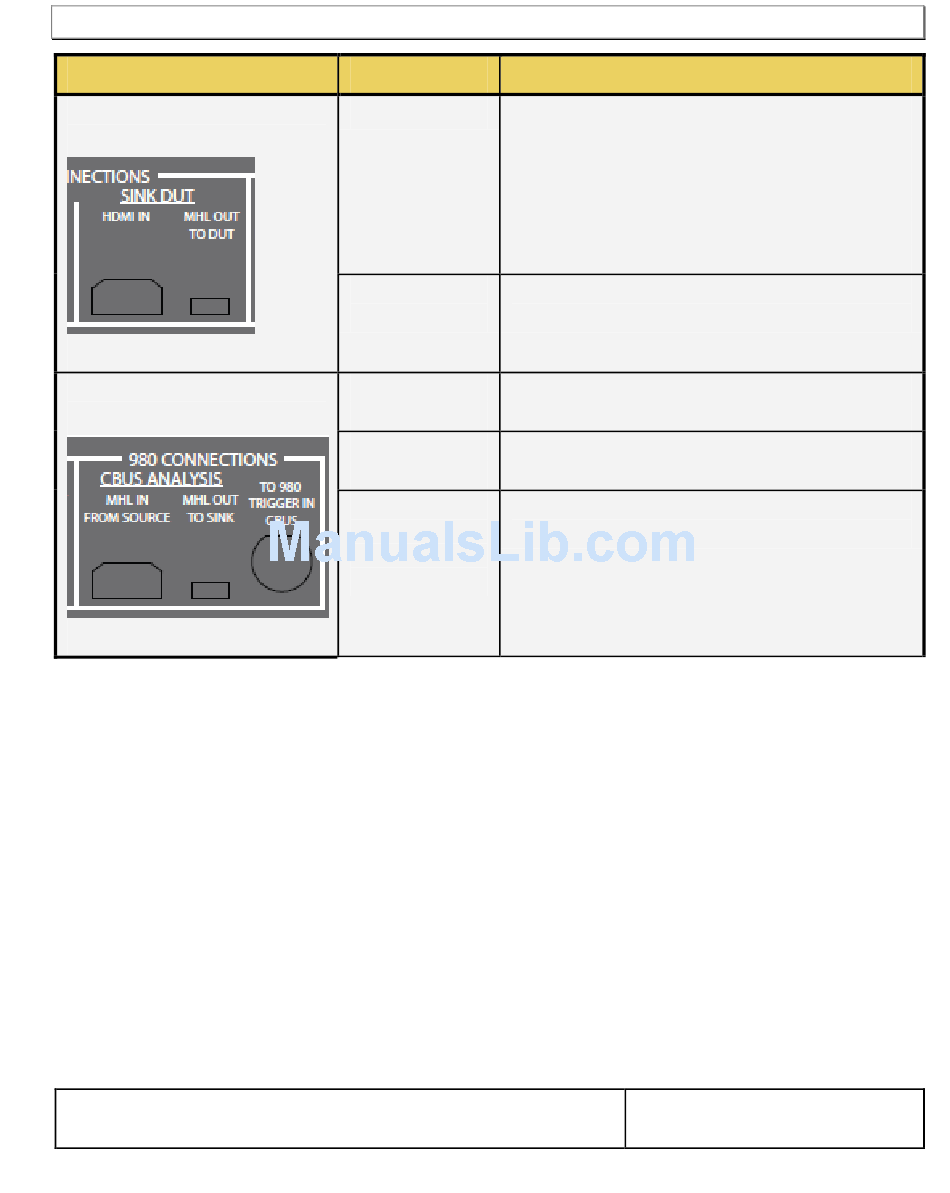

Connector Label Connection
HDMI IN This is an HDMI input used for HDCP compliance
testing of MHL sink devices. An HDMI cable is
connected to the Encryption Status Tester (EST) used
with the 882EA HDMI output. For basic functional
testing of an MHL sink device, an HDMI source
devices or 780 Handheld Test Instrument is connected
to this port.
MHL OUT Connect MHL cable to the MHL sink device under test,
TO DUT e.g. HDTV.
MHL IN Connect MHL cable from MHL source device under
FROM SOURCE test, e.g. mobile phone.
MHL OUT Connect MHL cable to the MHL sink device under test,
TO SINK e.g. HDTV.
TO 980 Connect coax cable to TRIG IN port on 980 Protocol
TRIGGER IN Analyzer.
CBUS
