TPA-MHL2-8R – Quick Start Guide
b. Connect an HDMI cable from the TO PROTOCOL ANALYZER RX connector of the TPA-MHL2-8R to the
Rx port on the 980 HDMI Protocol Analyzer module.
3. Refer to the 980 User Guide for details on how to capture, store and analyze data from the MHL source.
3.2

MHL 2.0 Source Compliance Testing

You can run MHL compliance testing on source devices in accordance with Section 3 of the MHL 1.3, 2.0, 2.1
Compliance Test Specification using the TPA-MHL2-8R and the 980 HDMI Protocol and Compliance Tester.
Note: You must purchase the MHL source compliance test option as part of the 980 HDMI Protocol Analyzer module.
For more details on the MHL Source Compliance Test functions of the 980, please refer to the 980 User Guides
available on the Quantum Data 980 product web page at: www.quantumdata.com/products/980.asp.

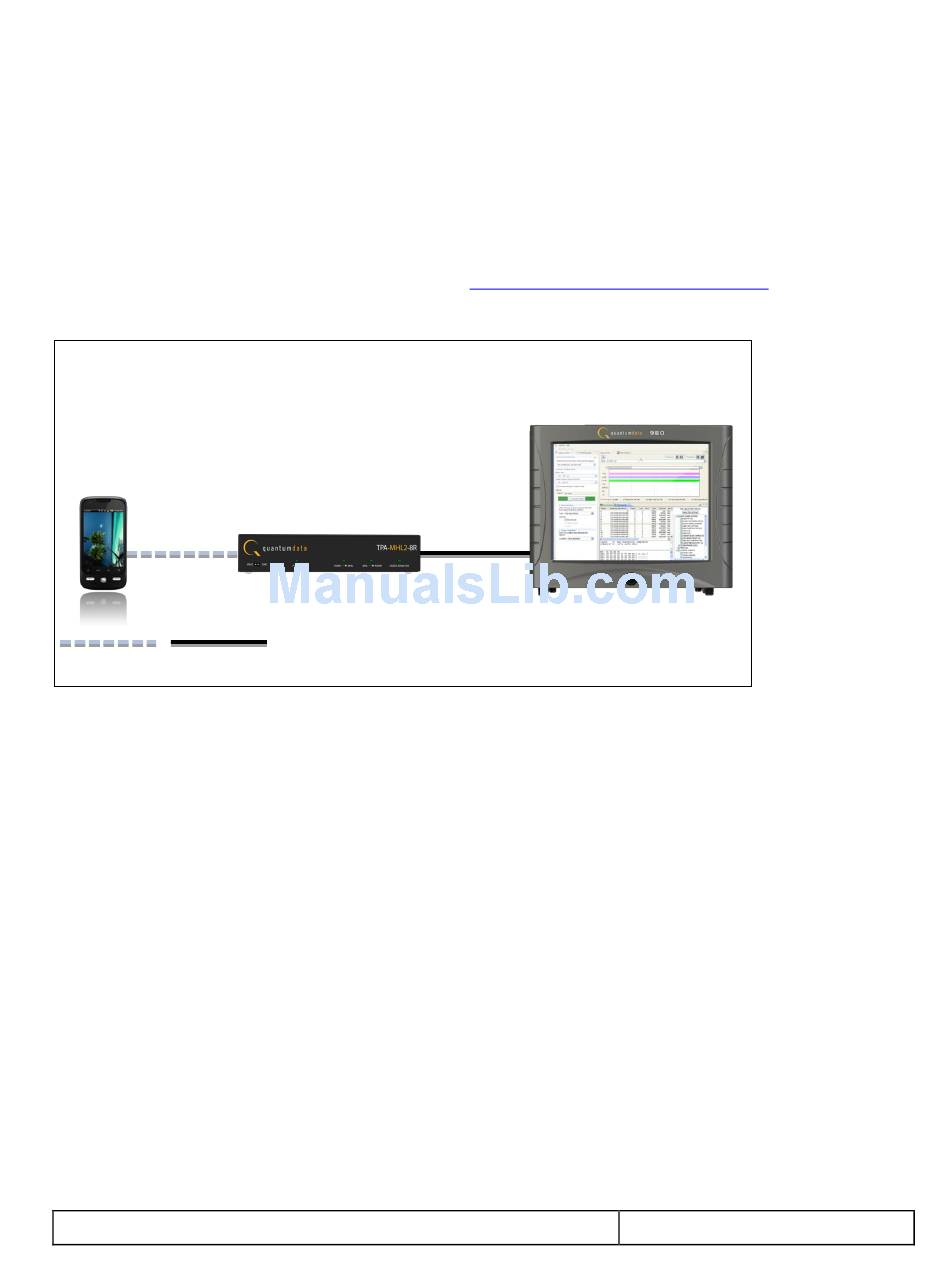

Refer to the diagram below for a depiction of the test setup.
Source
MHL 2.0 DUT
MHL HDMI Cable
MHL Cable HDMI Cable
Cable
November 20, 2013
TPA-MHL2-8R
980 HDMI Protocol Analyzer
& MHL Compliance Tester
Page 9
Revision B2
