TPA-MHL-8R - Quick Start Guide
Use the procedure below to make the connections to the TPA-MHL-8R for running basic
protocol tests on an MHL source device.
1. Apply power to the TPA-MHL-8R using the power adapter provided.

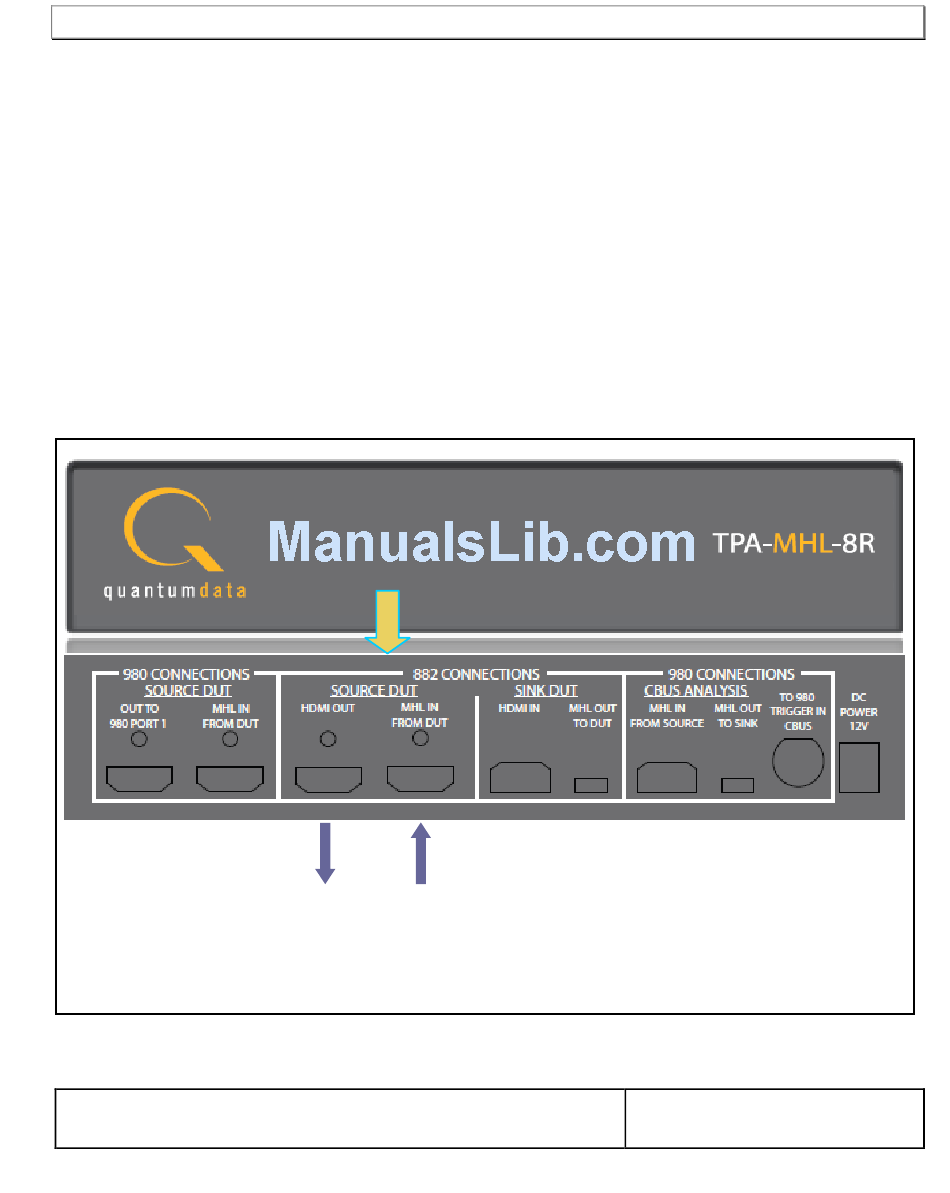

2. Make the connections as shown in the diagram below. For this application you will be using
the section on the TPA-MHL-8R labeled 882 CONNECTIONS – SOURCE DUT.
a. Connect an MHL cable from the MHL source device under test to the MHL IN FROM
DUT connector on the TPA-MHL-8R.
b. Connect an HDMI cable from the HDMI OUT connector of the TPA-MHL-8R to the
HDMI IN port of the 780 or 882EA.
3. Refer to the 780 or 882EA User Guide for details on how to conduct basic protocol and
timing tests on an HDMI source device.
Page 11
Connect MHL
Connect HDMI
cable to MHL
cable to HDMI
mobile device
IN port on 780
(MHL source)
or 882EA
