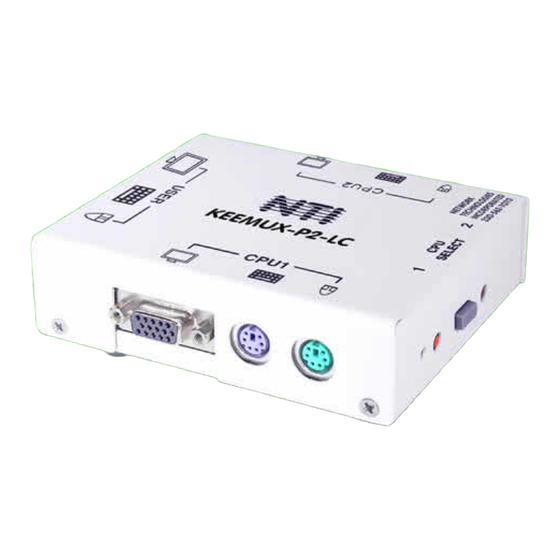

K E E M U X - P 2 - L C ( 2 - P o r t P S / 2 K V M S w i t c h )
I N S T A L L A T I O N / U S E R G U I D E
M A N 0 1 9 R e v D a t e 7 / 1 8 / 2 0 0 1
VGA
Multi-Scan
Monitor
PS/2 Keyboard
Tel:330-562-7070
1275 Danner Dr
Fax:330-562-1999
Aurora, OH 44202
PS/2 Mouse
NTI
NTI
KEEMUX-P2-LC
KEEMUX-P2-LC
CPU1
PS/2
PS/2
Advertisement
Table of Contents
Related Manuals for NTI KEEMUX-P2-LC
Summary of Contents for NTI KEEMUX-P2-LC

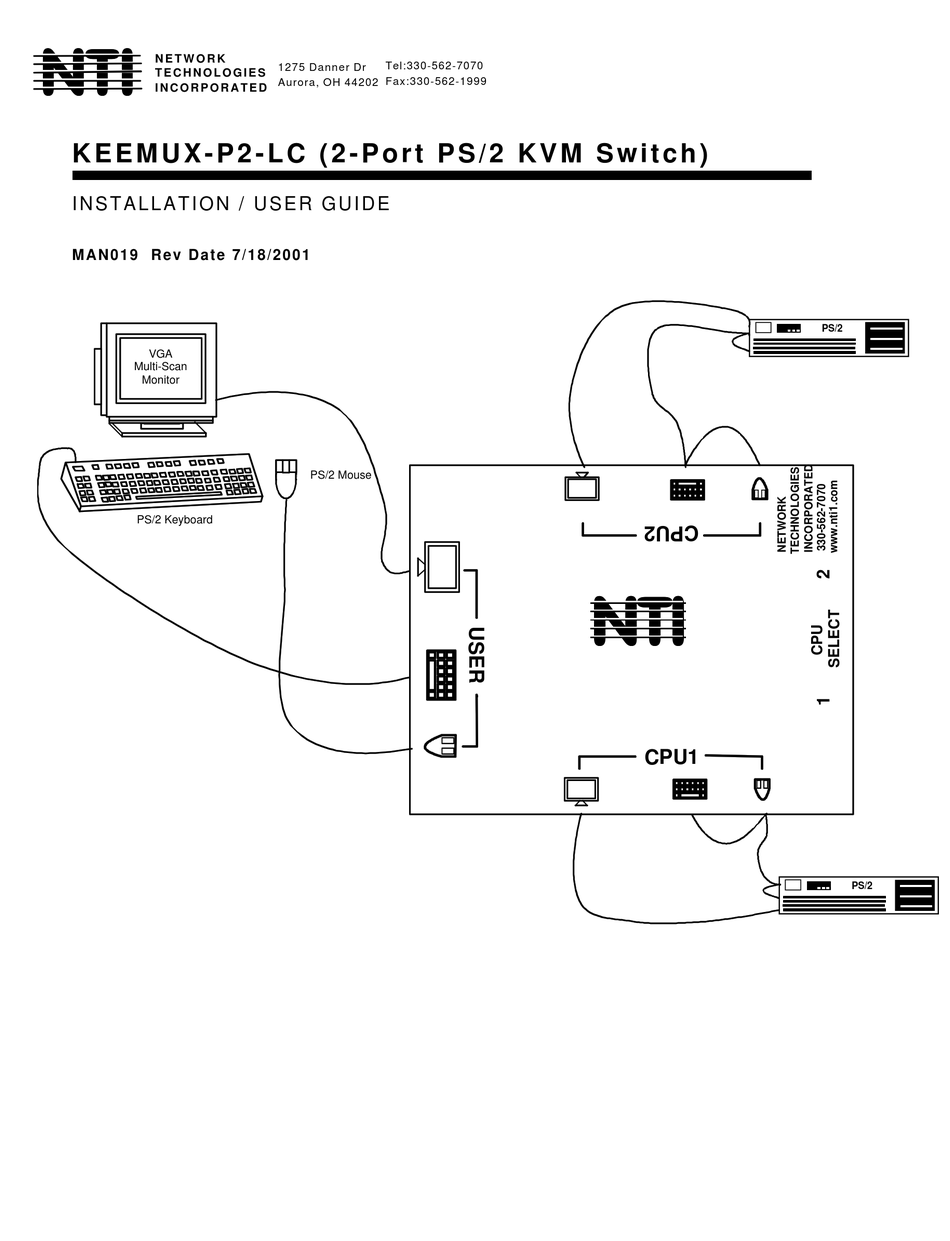

- Page 1 I N S T A L L A T I O N / U S E R G U I D E M A N 0 1 9 R e v D a t e 7 / 1 8 / 2 0 0 1 PS/2 Multi-Scan Monitor PS/2 Mouse PS/2 Keyboard KEEMUX-P2-LC KEEMUX-P2-LC CPU1 PS/2...
- Page 2 Materials Supplied with this kit: NTI KEEMUX-P2-LC KVM Switch M a t e r i a l s N o t S u p p l i e d , B U T R E Q U I R E D :...
- Page 3 Connect a PS/2 keyboard to the "USER" purple female 6 pin miniDIN keyboard port on the side of the KEEMUX-P2-LC switch. Connect a PS/2 Mouse to the “USER" green female 6 pin miniDIN mouse port on the side of the KEEMUX-P2-LC switch. Connect a VGA multi-scan monitor to the"USER" female 15HD monitor port on the side of switch.
- Page 4 Press KEY) When the Command Mode is ON, all 3 status lights on the keyboard will illuminate and both LEDs on the KEEMUX-P2-LC will go OFF to indicate Command Mode is enabled and the following functions are available: ( N O T E : The user must exit Command Mode in order to type to a computer.) Mouse movement will be frozen while in Command Mode.
- Page 5 R E S E T S W I T C H A reset switch is located inside a small opening in the KEEMUX-P2-LC switch housing just to the left of the CPU 1 LED (see Fig. This switch is provided to enable a user to reset the KEEMUX-P2-LC switch in the event the keyboard, mouse, or monitor stops working properly.
- Page 6 Fig. 4 If the NTI KEEMUX-P2-LC KVM switch still seems to not work properly, help may be found in the Frequently Ask Questions (FAQ’s) section of our website at http://www.nti1.com or call us directly at ( 8 0 0 ) 7 4 2 - 8 3 2 4 ( 8 0 0 - R G B - T E C H ) or (330) 562-70 7 0...
- Page 7 W A R R A N T Y I N F O R M A T I O N The warranty period on this product (parts and labor) is one (1) year from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) in the US and Canada or ( 3 3 0 ) 5 6 2 - 7 0 7 0 (worldwide) for information regarding repairs and/or returns.
