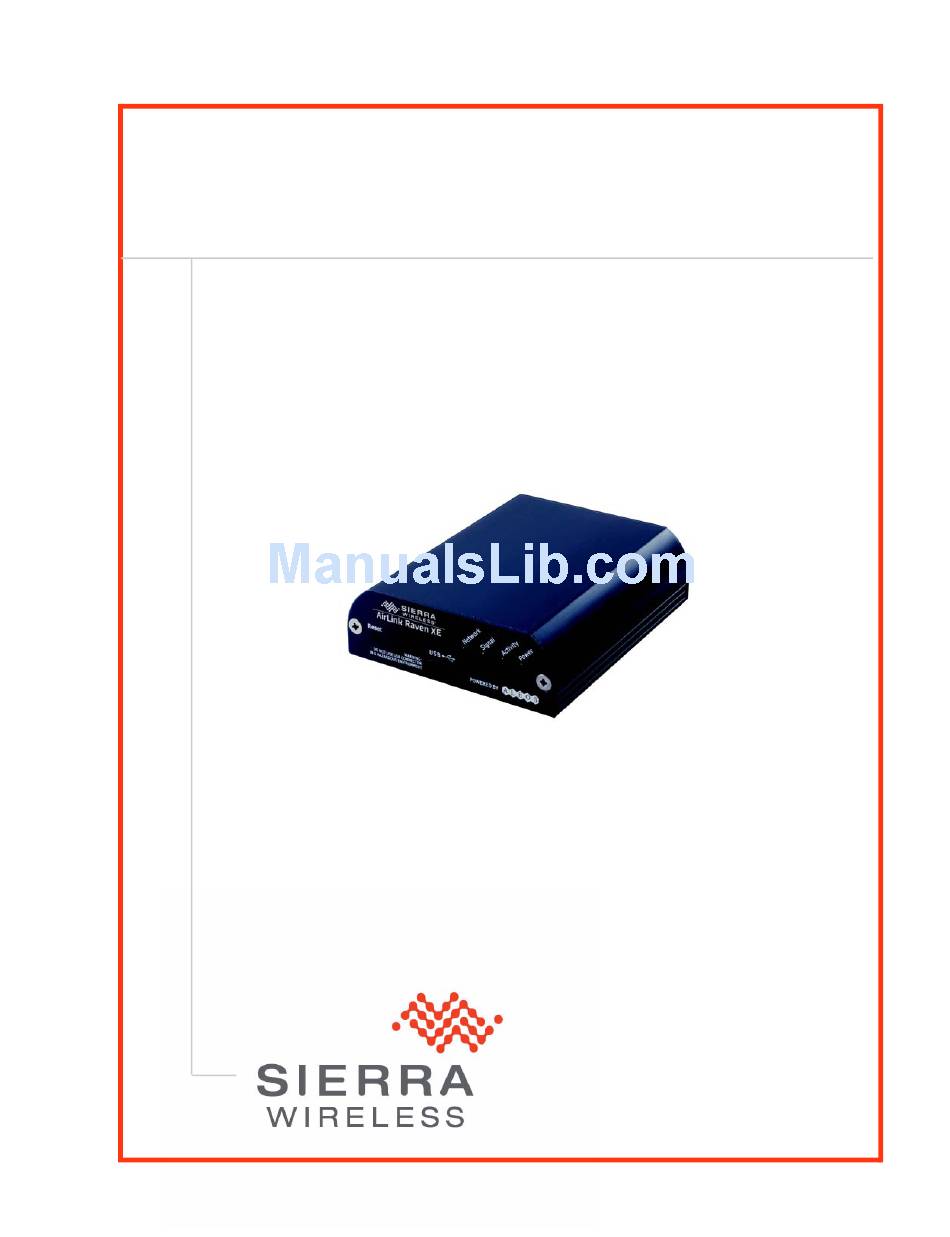

CoverTitle
Raven XE
Quick Start Guide
for Sprint
20080616
Rev 1.0B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raven XE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sierra Wireless Raven XE

Summary of Contents for Sierra Wireless Raven XE

  • Page 1 CoverTitle Raven XE Quick Start Guide for Sprint 20080616 Rev 1.0B...

  • Page 2: Activating Your Raven Xe On Sprint

    The alert response instructs the radio module to immediately process the NI OMA-DM command. When the OMA-DM session state is IDLE, Raven XE records the session type and session result code and then re-establishes the data connection. Hands Free Activation (HFA) Raven XE automatically detects the radio module installed during system startup.

  • Page 3: Updating Raven Xe Firmware

    For the updater tool to execute, please install the USB drivers available on the website before executing the .exe file. Copy the USB Serial Driver.inf file to your desktop. Then power up the Raven XE and Tip: connect USB. Install from specific location and point to this .inf file. For detailed instruc- tions on installing the USB drivers, please refer to Universal Serial Bus Application Note.
  • Page 4 The default private for Ethernet is also in a different subnet from the other connection types. Table 0-1: Factory Defaults Interface Raven XE Connected Device Ethernet Private default 192.168.13.31* 192.168.13.100 USB/NET 192.168.14.31 192.168.14.100 192.168.15.31 192.168.15.100 *can be changed via ACEmanager Figure 0-2: Configuration: Interface selection c.

  • Page 5: Verifying Usb Connection

    Raven XE Verifying USB connection Verify that your USB is connected as USB/net by checking the Network Connections window in your computer. Figure 0-3: Verify USB Connection Confirming IP Address Check the IP Address in your Local Area Connection window.

  • Page 6: Configuring Through Acemanager

    • Go to: http://192.168.13.31:9191 the first time you connect to ACEmanager. Activating Using AT Commands An alternate method to configure and activate your Raven XE is by using AT commands sent directly to the modem with a terminal application. Caution: It is not possible to activate the Raven XE using either ACEmanager or AceNet.
  • Page 7 PassThru can only be exited by resetting or power-cycling the modem. This mode cannot be entered via a remote Telnet session. You can configure a string of AT commands to be sent to the Raven XE when it enters PassThru and other PassThru settings.

  • Page 8: Specifications

    This applies to a typical installation with a well-matched antenna. All current values are measured with an input voltage of 12 V. For information on Hardware Installation, please refer to the SierraWireless AirLink Raven XE User Guide. Rev 1.0B Mar.10...
