Summary of Contents for thomann Millenium Transformer E-A

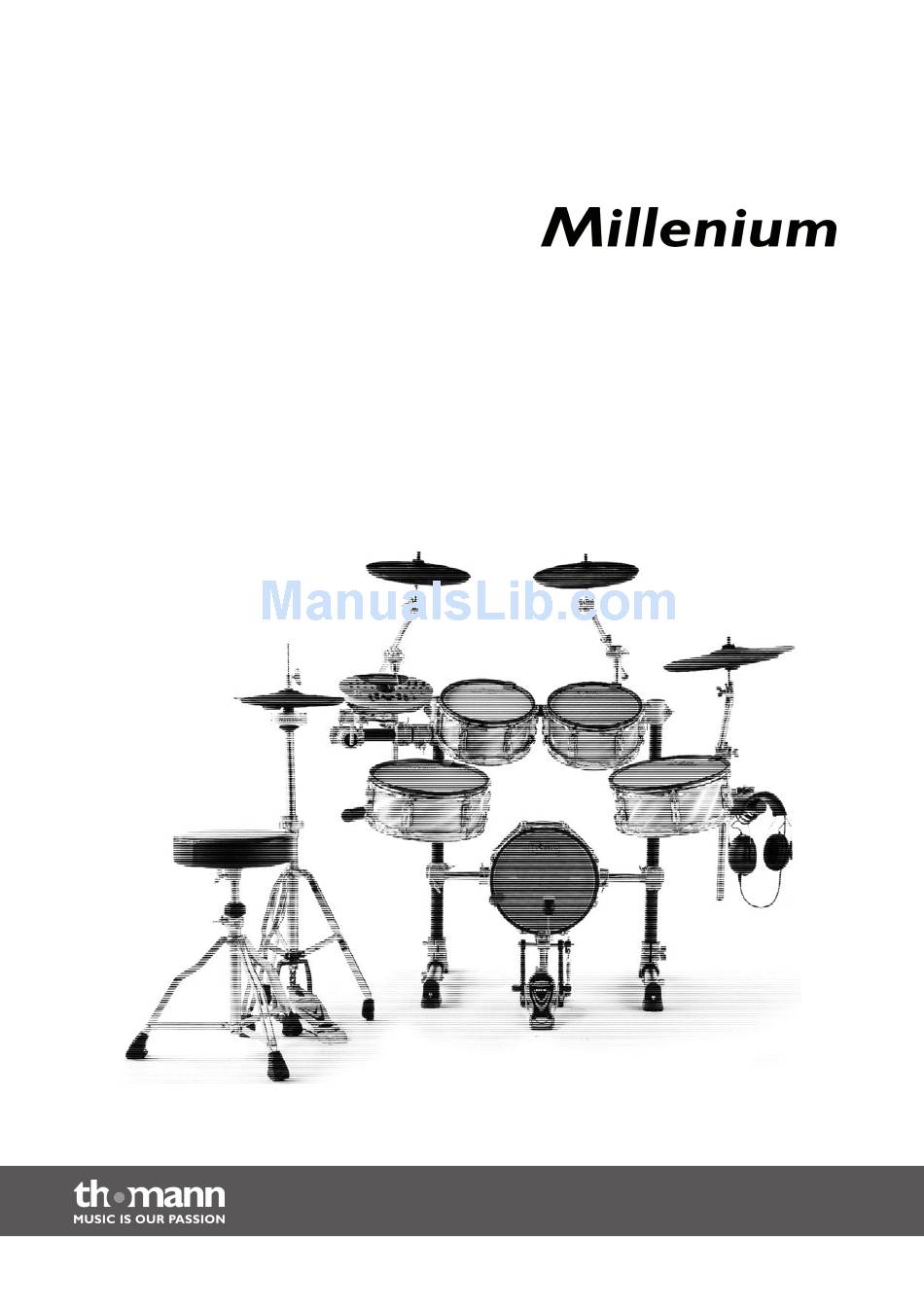

- Page 1 Millenium Transformer E-A drum set assembly instructions...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 19.03.2013...
-
Page 3: Table Of Contents
Safety instructions.......................................... 4 Unpacking............................................5 Setting up the rack.......................................... 7 Mounting the pads.......................................... 8 Mounting the cymbals, hi-hat controller Mine and bass drum pedal (bundle)................10 Mounting and cabling the drum module (bundle)............................12 Protecting the environment....................................14 Millenium Transformer E-A... -
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. -
Page 5: Unpacking
The long, thin package contains the complete rack (stand system) including three cymbal arms and two rubber feet. Package 2 The second package contains the following individually packed items: Two ten-inch diameter transformer pads Two twelve-inch diameter transformer pads One twelve-inch diameter transformer bass drum pad Millenium Transformer E-A... - Page 6 Unpacking Appropriate cables and holders are included for all the pads. Package 3 for Millenium Transformer Bundle The third package for the Millenium Transformer Bundle contains: MPS-600 drum module Hi-hat stand and pedal Hi-hat controller Mine Four Millenium cymbal pads Multiclip for fastening the drum module Stool, headphones and pedal for the bass drum.
-
Page 7: Setting Up The Rack
Now you can turn all the horizontal rack rods to the side and fasten the cymbal arms to the clips that are intended for this on the rack. In addition, you can point all the L-pieces of the tom holders upwards and also set the height of the horizontal rods. Millenium Transformer E-A... -
Page 8: Mounting The Pads
Mounting the pads Mounting the pads The pads are all individually packed in the second package. The matching cables are also included. In all the pads, electronic drums are integrated on one side and acoustic ones on the other side. By means of a variable pad holding system, you can turn each shell and play the drum set as an acoustic or an electronic one. - Page 9 Mounting the pads You just hang the tom and snare pads on the L-pieces. Now, the whole set should look like this: Millenium Transformer E-A...
-
Page 10: Mounting The Cymbals, Hi-Hat Controller Mine And Bass Drum Pedal (Bundle)
Mounting the cymbals, hi-hat controller Mine and bass drum pedal (bundle) Mounting the cymbals, hi-hat controller Mine and bass drum pedal (bundle) Cymbals You mount the cymbals just like you would normal ones on the cymbal stands. Screw off the plastic screw and put the cymbal between the two felts that are located below the screw. - Page 11 Mounting the cymbals, hi-hat controller Mine and bass drum pedal (bundle) Bass drum pedal Fasten the bass drum pedal on the foot plate of the retaining tube using the clamp. Millenium Transformer E-A...
-
Page 12: Mounting And Cabling The Drum Module (Bundle)
Mounting and cabling the drum module (bundle) Mounting and cabling the drum module (bundle) Installation Fasten part of the MC628 multiclip on the tom holder on the left-hand rack rod. You can fasten the module on the other end. Cabling On the back of your Millenium MPS-600 module, there are various jack sockets. - Page 13 Mounting and cabling the drum module (bundle) Now all the parts are in place and you can start to play. Have lots of fun with your new drum set. Millenium Transformer E-A...
-
Page 14: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 16 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
