Summary of Contents for thomann Millenium Focus

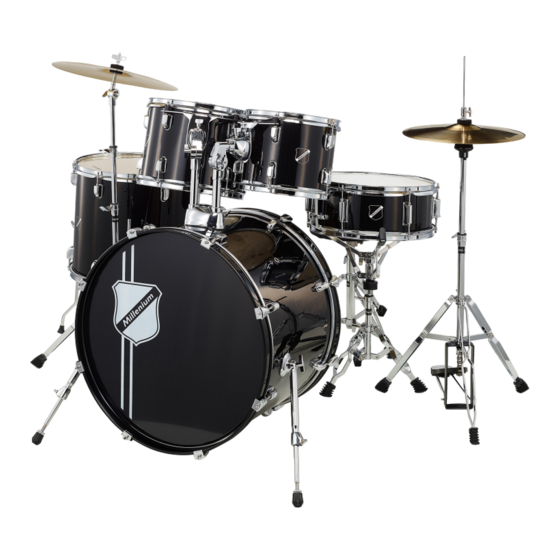

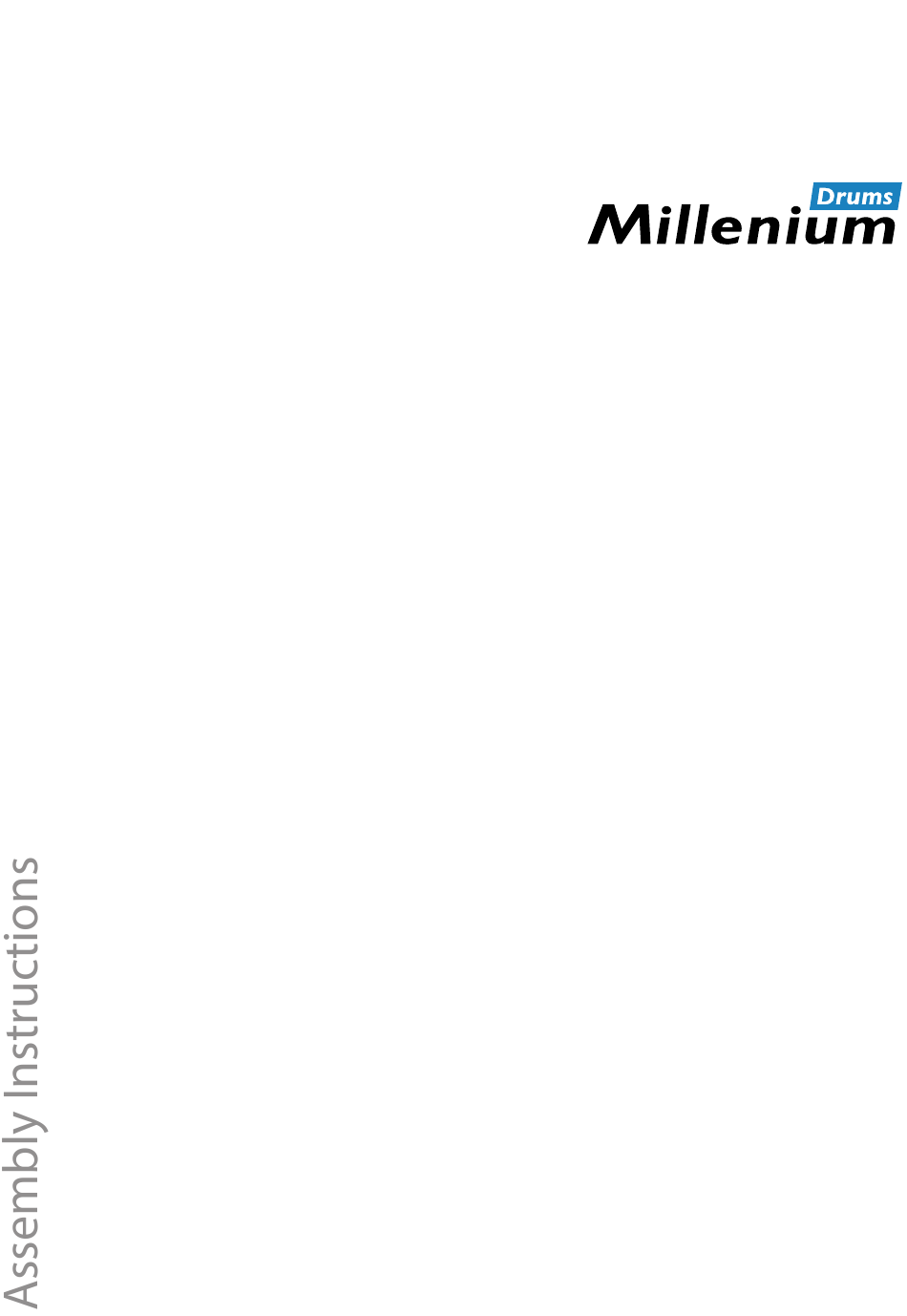

- Page 1 Focus Drum Set Drum Set...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 30.04.2024, ID: 495981, 495988, 495993, 495982, ... (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................5 1.1 Symbols and signal words................... 5 Safety instructions......................... 6 Features and scope of delivery..................7 Installation..........................10 4.1 Assembling the bass drum..................10 4.2 Mounting the floor tom....................11 4.3 Assembling the hardware package................ 12 4.4 Tuning the drum shells.................... - Page 4 Focus Drum Set Drum Set...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. -
Page 7: Features And Scope Of Delivery
Features and scope of delivery Features and scope of delivery See ‘Focus’ series with drum shells with wrap finish Particularly suitable for ambitious beginners Available as junior drum set for children aged 4 to 7 Muffling cushion for bass drum Sound control rings for hanging toms and snare drum (22-inch drum set) Size of the bass drum: 18-inch, 20-inch or 22-inch Colour: Black, white or red... - Page 8 Features and scope of delivery 2 × hanging toms The hanging toms are delivered fully assembled. Floor tom The floor tom includes the following parts: 1 × drum shell 2 × hoops 2 × heads 12 × tension screws with washer 3 ×...
- Page 9 Features and scope of delivery 1 × cymbal stand 2 × tom holders Accessories The accessories include the following parts: 1 × tuning key 1 pair of drumsticks 3 × sound control rings for hanging toms and snare drum (22-inch drum set) Cymbals Depending on the scope of supply, a set of cymbals is included: 1 ×...
-
Page 10: Installation
Installation Installation 4.1 Assembling the bass drum Position the bass drum shell so that the screws of the tom collar point down‐ wards. Place the black resonator head on the bass drum shell. Place a hoop over the resonator head. Align the resonator head so that the ‘Millenium’... -
Page 11: Mounting The Floor Tom
Installation 4.2 Mounting the floor tom For easier transport, the hoops are fixed in place with the tension screws on one side of the floor tom shell. To assemble the heads, first release the pre-mounted tension screws. The tension screws of the junior drum set are longer than those of the bass drum. -
Page 12: Assembling The Hardware Package
Installation 4.3 Assembling the hardware package 4.3.1 Assembling the bass drum pedal Some bass drum pedals do not have a continuous floor plate. To ensure a stable sup‐ port, the bass drum pedals are equipped with 2 round iron rods. If there is no continuous floor plate. - Page 13 Installation 4.3.2 Assembling the hi-hat stand If there is no continuous floor plate. Press the 2 round iron rods together and insert them in the recesses on the frame of the hi-hat stand. Unfold the 3 legs of the hi-hat stand until there is optimum stability between the base point of the hi-hat stand and the legs.
- Page 14 Installation 4.3.3 Assembling the snare drum stand Unfold the 3 legs of the snare drum stand until there is optimum stability between the base point of the snare drum stand and the legs. Fix the 3 legs in position with the wing screw. Insert the upper part with the carrier arms in the bottom section and fix the upper part in place.
- Page 15 Installation 4.3.4 Assembling the cymbal stand Unfold the 3 legs of the cymbal stand until there is optimum stability between the base point of the cymbal stand and the legs. Fix the 3 legs in position with the wing screw. Put the centre tube and the spacer tube on the stand foot and fix both in place with the wing screw.
-
Page 16: Tuning The Drum Shells
Installation 4.4 Tuning the drum shells To ensure uniform tension, the tension screws are fixed in place evenly and in cross‐ wise fashion. At first the tension screws are fixed with a maximum of one turn. At the end, the tension screws are fixed in place with a turn of between ¼ and ⅛. To check the sound, tap the head with your finger about 3 cm from the edge. - Page 17 Installation Fix the tension screws crosswise with one turn each. ð The resonator head generates a sound. ð No folds are visible on the resonator head. ð The bass drum is tuned. 4.4.3 Tuning hanging toms and floor tom To fix the batter head in place, push the batter head down with your hands. Fix the tension screws crosswise with one turn each.
-
Page 18: Setting Up The Drum Set
Installation 4.5 Setting up the drum set For optimum playing, we don't just need tuned drums shells; it is also necessary to position all the drums in an optimum way. The set-up that is described here is intended for right-handers. The set-up for left-handers is a mirror image of this one. A non-slip surface like a carpet or similar guarantees stability. - Page 19 Installation 4.5.3 Setting up the bass drum Unfold the bass drum feet until they are facing forward at an angle of approx. 45°. If there is a carpet under the drum set, screw in the rubber feet until you can see the spikes.
- Page 20 Installation 4.5.4 Aligning the bass drum and hi-hat Place the bass drum on the right and the hi-hat stand on the left of the snare drum. ð The snare drum is between the player’s knees, but the knees are not touching the snare drum.
-
Page 21: Assembling Cymbals
Installation 4.6 Assembling cymbals 4.6.1 Assembling the hi-hat cymbal Place a metal washer and a felt disk on the hi-hat stand. Place the lower cymbal (labelled ‘bottom’ ) on the hi-hat stand. Attach the upper cymbals (labelled ‘top’ ) with the hi-hat clutch holding system. - Page 22 Installation 4.6.2 Assembling the ride or crash cymbal Assemble the ride or crash cymbal between the floor tom and the right hanging tom. To do so, place a metal washer and a felt disk on the cymbal stand. Place the ride or crash cymbal on the felt disk. Place another felt disk on the ride or crash cymbal and fix the cymbal in place with the wing screw.
-
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These mate‐ rials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are dis‐ posed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Notes Focus Drum Set Drum Set...
- Page 25 Notes Focus Drum Set Drum Set...
- Page 26 Notes Focus Drum Set Drum Set...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
