Summary of Contents for thomann Millenium MPS-750X

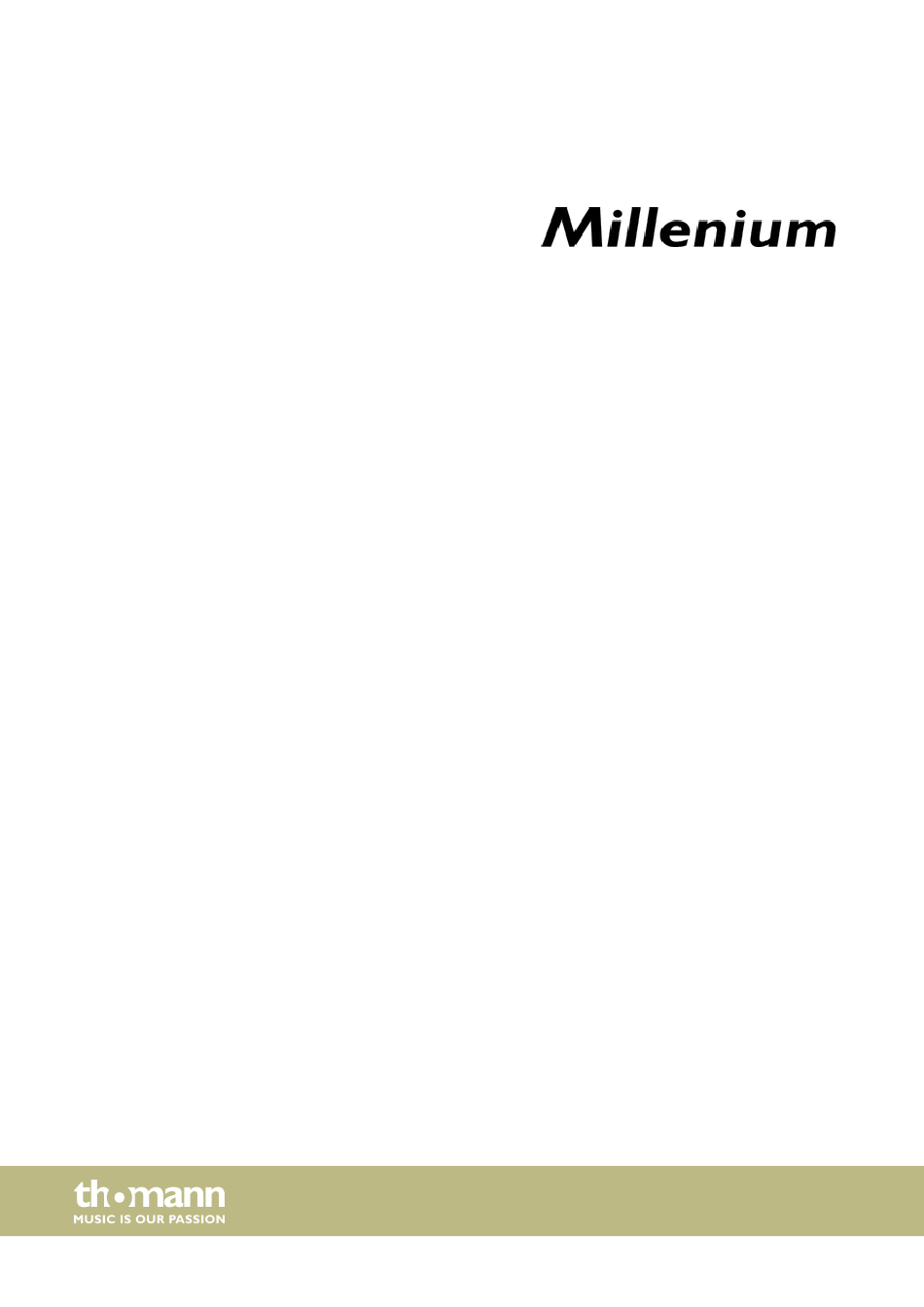

- Page 1 MPS-750X e-drum set assembly instructions...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.01.2020, ID: 454015...
- Page 3 Table of contents Table of contents Safety instructions.......................................... 4 Scope of delivery..........................................5 Assembly.............................................. 7 Protecting the environment....................................18 MPS-750X...
- Page 4 Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
- Page 5 Bass drum pad (8" mesh head) Bass drum pad pedal Hi-hat tripod with pedal Hi-hat bracket e-drum module Millenium MPS-750X Multiple cable for connecting the pads, cymbals and pedals to the e-drum module Drum key Set of drum sticks User manual e-drum module...
- Page 6 Scope of delivery Item Qty. Assembly instructions e-drum set Plug-in power supply e-drum set...
- Page 7 Assembly Assembly Overview Loosen the screws of the clamps before sticking the tubes together. Mount the various elements in the specified sequence. The final positions of the components are shown in the illustration below. Hi-hat pad (10 inch) Crash (12", two zones, with stop function) Ride (14", three zones, with stop function) Tom pad (10", two zones, mesh head) Snare pad (10", two zones, mesh head)
- Page 8 Assembly Assembling the rack CAUTION! Danger of cuts on hands and fingers When connecting the parts, take care for sharp edges on the metal tubes, screws etc. Attach the clamp (4a) of the snare crossbeam (4) to one of the two lateral support tubes (1). Then tighten the wing nut of the clamp (4a).
- Page 9 Assembly Fasten the two lateral support tubes (1) in the fastening clamps of the horizontal connecting tube (3). Then tighten the wing nuts of the fastening clamps. Attach the crossbeam for the snare (4) to the left support tube (1). Then tighten the wing nut of the fastening clamps.
- Page 10 Assembly Attach the two crossbeams (5) to the two lateral support tubes (1). Then tighten the wing nuts of the fastening clamps. Fasten the two support tubes for the crossbeams (2) in the fastening clamps of the crossbeams (5). Then tighten the wing nuts of the fastening clamps. e-drum set...
- Page 11 Assembly Fasten the two lateral support tubes (1) in the fastening clamps of the horizontal connecting tube (6). Then tighten the wing nuts of the fastening clamps. MPS-750X...
- Page 12 Assembly Attach the two connections for the cymbal holder (8) and the cymbal holder (7) to the two lateral support tubes (1). Then tighten the wing nuts of the fastening clamps. e-drum set...
- Page 13 Assembly Attach the sleeve for the mounting bracket (9) and the mounting bracket (10) in the bracket for the snare on the crossbeam (4). Then attach the sleeves for the mounting rods (9) and the mounting rods (11) in the holders for the tom pads on the right crossbeam (5) and on the horizontal connecting tube (6).
- Page 14 Assembly Mounting tom pads on the rack Attach the tom pads (15) to the mounting rods (9) and tighten the wing nuts of the tom pads hand-tight. Align the pads on the rack to meet your needs, then tighten the wing nuts of the brackets and the wing nuts of the tom pads evenly.
- Page 15 Assembly Mounting the Hi-hat on the rack Screw on the wing nuts of the hi-hat tripod with pedal (19) and open the feet. Then tighten the wing nuts of the brackets. Insert the hi-hat holder (20) into the hi-hat tripod with pedal (19) and tighten the holder clockwise. Unscrew the wing nuts from the Hi-hat holder (20) and take the felt washers off the holders.
- Page 16 Assembly Setting up the bass drum pedal Screw the bass drum pad and the associated foot (17) with the supplied screws using the drum key (23). Engage the bolt of the foot machine (18) into the provided recess on the bass drum pad (17). Mounting the drum module on the rack Put the drum module (21) up to the stop into the free bracket of the left crossbeam (5).
- Page 17 Assembly Set-up and cabling Set up the rack, the pads and the cymbals according to your needs. Finally, position the pedal with the bass drum pad in front of the rack and connect all trigger cables to the e-drum module. The skin tension of the mesh heads is relatively low in the delivery state in order to avoid damage during transport.
- Page 18 Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
