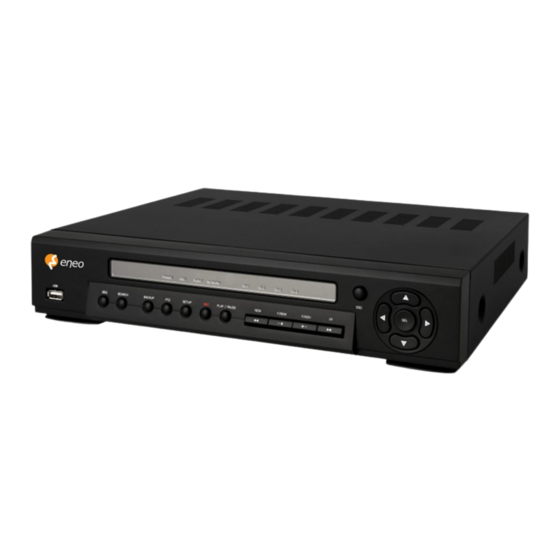

Quick Guide for HD Economic DVR
H.264 HD SDI Digital Video Recorder (Ver 1.0)
Before installing and using this unit, please read this quick guide carefully. For more
detail information, please read a user manual in the enclosed CD.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDR-4004AE1.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo HDR-4004AE1.0

Summary of Contents for Eneo HDR-4004AE1.0

  • Page 1 English French German Polish Quick Guide for HD Economic DVR H.264 HD SDI Digital Video Recorder (Ver 1.0) Before installing and using this unit, please read this quick guide carefully. For more detail information, please read a user manual in the enclosed CD.

  • Page 2: Table Of Contents

    Table of Contents 1. Main Features ........................................3 Powerful & Flexible......................................3 Easy To Use .......................................... 3 2. Entry HD SDI DVR 4CH ..................................... 4 2-1. Product Components ..................................4 2-2. Specifications......................................5 2-3. Front Panel ........................................ 6 2-4. Rear Panel ........................................8 3.

  • Page 3: Main Features

    1. Main Features Powerful & Flexible  Quadplex Recording + Search + Archiving + Network  Dual Stream Dual Stream is the most powerful technology to encode the recording and network frames of the DVR separately. The recording and network frames are able to be selected respectively by DVR setup.

  • Page 4: Entry Hd Sdi Dvr 4Ch

    2. Entry HD SDI DVR 4CH 2-1. Product Components The package contains the main unit and its components as specified below. When you purchase the unit, please check to ensure the components specified below are included. DVR Set Mouse (Option) Client Software CD / Remote Control / Quick Guide...

  • Page 5: Specifications

    2-2. Specifications ITEM HDR-4004AE1.0 Video Input Channel Input Level 4CH HD-SDI (720p25/30/50/60, 1080p25/30, 1080i50/60) Output Main Monitor HDMI (Max. 1920x1080) Sub Monitor VGA (Max. 1920x1080) HD-SDI Monitor CVBS SPOT Audio Input 4CH Line Input Output 1CH Line and HDMI Output Audio Codec G.711...

  • Page 6: Front Panel

    Network Web Viewer Live, Search/Playback, Backup, PTZF, Remote Access Setup/Upgrade Single-site monitoring software Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade Multi-sites monitoring software Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade Features DST (Daylight Saving Time) Internal Beep By Video Loss, HDD Error Multi Language Yes (more than 20 languages) Software Upgrade...
  • Page 7 Front panel buttons Name Description Press to rewind the footage in playback mode. Jump/Step backward. In playback mode, the playback position moves 60 seconds backward. Press to fast forward the footage in playback mode. Jump/Step forward. In playback mode, the playback position moves 60 seconds forward.

  • Page 8: Rear Panel

    2-4. Rear Panel ① VIDEO IN: Video input terminal ② HDMI OUT: 1920X1080 Main Monitor ③ VGA: VGA (Video Graphics Array) output terminal. Connects to the PC VGA monitor. ④ AUDIO IN: Four connectors for audio input. ⑤ AUDIO OUT: One connector for audio output. ⑥...

  • Page 9: Basic Function Of Remote Control

    4. Basic function of Remote Control ① ID: When a remote control ID number is set in DVR, press it before number. ② REC: To start and stop manual recording. ③ Number: To select channel (1, 2, 3, & 4) or to enter DVR ID number. ④...

  • Page 10: Mounting The Hard Disk

    5. Mounting the HARD DISK 1. Before installing bracket and screws 2. After installing bracket and screws onto HDD onto HDD 3. Installation HDD and Bracket onto 4. Installation Bracket base case (Inside) onto base case (Outside) 5. After connecting power cable and data cable with HDD...

  • Page 11: Quick Setup

    6. Quick Setup When booting a system at first, the following messages display. After initializing, select a language and set the time. To enter the setup menu, select a right button of the mouse or press the SETUP button on the remote control.
  • Page 12 For more detail information about a setup, search, playback and so on, please read a user manual in the enclosed CD. eneo is a registered trademark of Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only.
