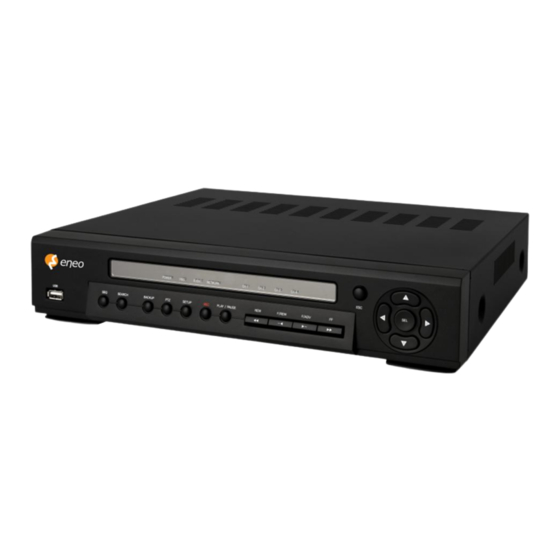

Eneo HDR-4004AE1.0 Instruction Manual

Digital video recorder h.264 video compression
Hide thumbs Also See for HDR-4004AE1.0:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual

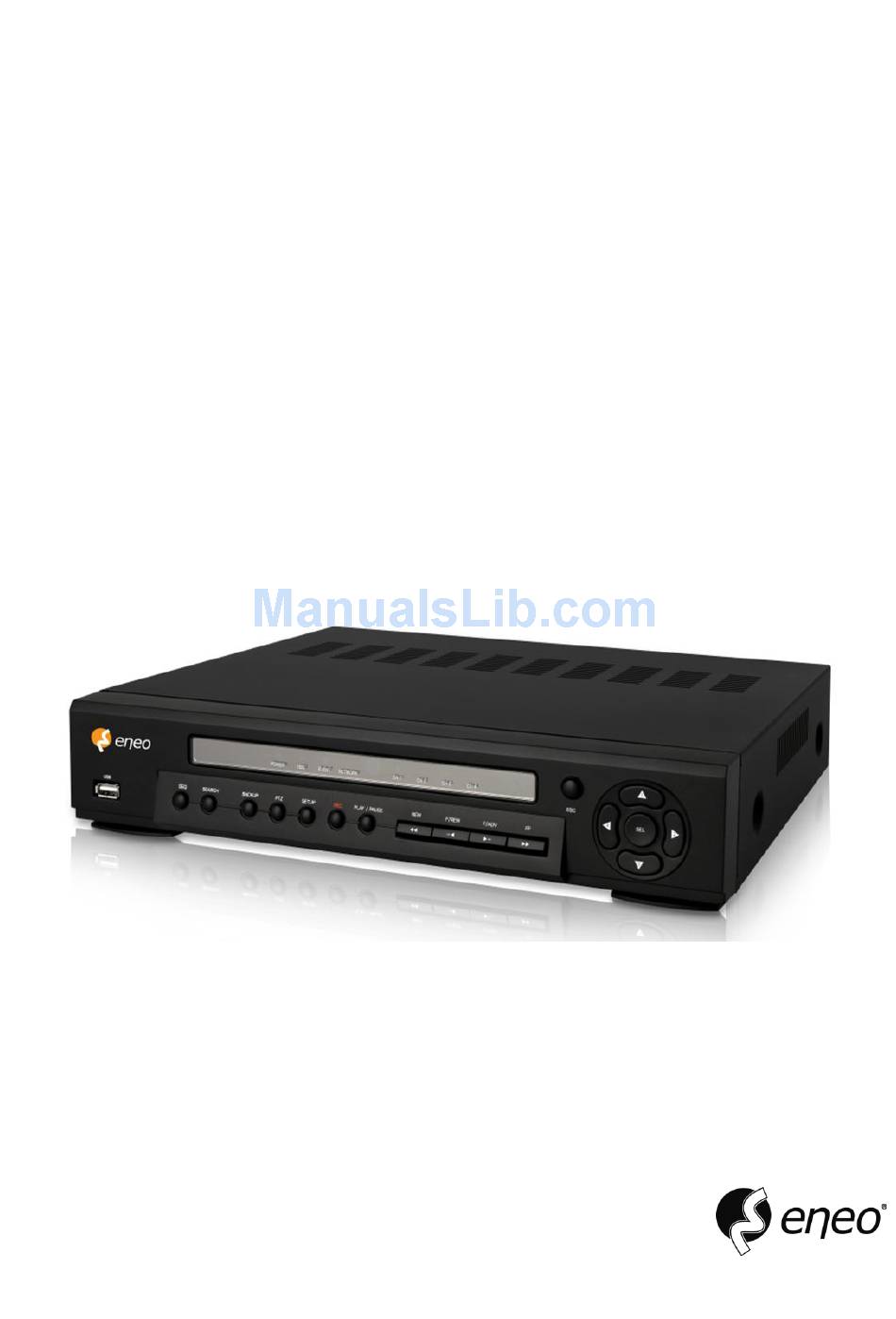

INSTRUCTION MANUAL
(HDR-4004AE1.0 Ver. 1.0)
H.264 Video Compression

Digital Video Recorder

About this user guide
Before installing and using this unit, please read this user guide carefully.
.
Be sure to keep it handy for later reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDR-4004AE1.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo HDR-4004AE1.0

Summary of Contents for Eneo HDR-4004AE1.0

  • Page 1: Digital Video Recorder

    INSTRUCTION MANUAL (HDR-4004AE1.0 Ver. 1.0) H.264 Video Compression Digital Video Recorder About this user guide Before installing and using this unit, please read this user guide carefully. Be sure to keep it handy for later reference...

  • Page 2: Safety Precautions

    Safety Precautions Explanation of Graphical Symbols This symbol indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This symbol indicates the presence of uninsulated ”dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 These precautions must be followed for safety reasons. Warning  Do not use if the unit emits smoke, strange sounds are heard or odor is emitted. Continued use may cause electrocution and/or fire. Immediately remove the power plug from the outlet. Once the unit stops emitting smoke, consult the dealership where this unit was purchased or factory shop for repairs.
  • Page 4 In the event that a foreign object is inside the unit, turn off and unplug the unit. Consult the dealership where this unit was purchased or factory shop. Continued use may result in fire and/or electrocution.  Do not place a container holding water or other liquids above the unit when it is connected to power.
  • Page 5 Doing so may cause the unit to fall, be damaged and/or result in injury.  Make sure the cables are connected properly. Connect and install the power cable and connection cable very carefully. Tripping over the cable may result in the unit capsizing or falling and cause injury. ...
  • Page 6 . Areas where the unit will be exposed to constant vibration (in trains, cars, etc.)  Cautionary points on condensation Droplets may form on the outside when very cold water is poured into a cup. In the same way, droplets may form around the internal components of his unit. This is called condensation. Do not use this unit if condensation has formed.

  • Page 7: Product Components

    Product Components The package contains the main unit and its components as specified below. When you purchase the unit, Please check to ensure the components specified below are included. DVR Set Client Software CD, User Guide Remote Control , Battery1.5V, Mouse HDD/DVD-RW data cable HDD mounting bracket &...
  • Page 8 Mounting the HDD or DVDRW 1. Before installing bracket and screws 2. After installing bracket and screws onto HDD onto HDD 3. Installation HDD and Bracket onto 4. Installation Bracket base case (Inside) onto base case (Outside) 5. After connecting power cable and data cable with HDD...

  • Page 9: Compatible Hdd Models

    Compatible HDD Models Seagate ST32000641AS (Barracuda XT) 2 TB 7200 RPM 64 MB Seagate ST31000526SV (Surveillance) 1 TB 7200 RPM 32 MB Seagate ST31000524AS (Barracuda) 1 TB 7200 RPM 32 MB Seagate ST31000340SV (Surveillance) 1 TB 7200 RPM 32 MB Seagate ST31000528AS (Barracuda) 1 TB...

  • Page 10: Booting The Dvr And Basic Time Setting

    Storage Estimation Super High Standard Economy Hour(s) Hour(s) Hour(s) Hour(s) Capacity 250GB 23 Hours 1 Days 5 Hours 2 Days 10 Hours 4 Days 20 Hours 500GB 2 Days 2 Days 13 Hours 5 Days 1 Hours 10 Days 2 Hours 4 Days 3 Hours 5 Days 4 Hours 10Days 8 Hours...

  • Page 11: Setting Ntp (Network Time Protocol)

    Select DAYLIGHT SAVING. Setting NTP (Network Time Protocol) 1. When the DVR is connected with internet and the DVR need to be syncronized with NTP (Network Time Protocol), set SETUP>SYSTEM>NTP ON. 2. Select proper TIME ZONE time.
  • Page 12 NOTE: If you want the unit to automatically synchronize the local time, the Time Zone must be properly set according to your local Time Zone. Specification ITEM HDR-4004AE1.0 Input Channel Input Level 4/8CH HD-SDI (720p25/30/50/60, 1080p25/30, 1080i50/60) Main Monitor HDMI (Max. 1920x1080) Sub Monitor VGA (Max.
  • Page 13 x1/4, x1/2, x2, x4, x8, x16, x32, x64 Speed x2, x4, x8, x16, x32, x64 Search Mode Timeline, Event, Archive, Log, Specific Time File Format BMP/Proprietary Format Backup Media USB/External HDD/DVD/Network Built-in Viewer Dual Streaming for Live 640x360 and 320x180 Playback H.264 HD Network...

  • Page 14: Table Of Contents

    Table of Contents Name, Function and Connection ......................16 1-1. Front Panel ........................... 16 1-2. Rear Panel ........................... 18 1-3. Remote control ..........................19 Setting up the DVR ..........................20 2-1. Setup – Main Screen ........................20 2-2. Setup – Display Mode ........................23 2-3.
  • Page 15 6. Back up ..............................53 6-1. Still Image backup onto USB flash memory .................. 53 6-2. Video backup onto USB flash memory ..................54 6-3. Transferring still images or video from the ARCHIVE list .............. 55 6-4. Playback of Backup Video ......................56 7.

  • Page 16: Name, Function And Connection

    APPENDIX: How to connect network ......................98 A. How to set IP address of the DVR and open TCP port of the router? ..........98 B. How to access DVR from Remote PC? ..................100 C. How to access DVR with iPhone? ....................103 D.
  • Page 17 Jump/Step forward. In playback mode, the playback position moves 60 seconds forward. Press to start or stop manual recording. Press to go to SEARCH menu in live display mode. Press to play/pause the footage in playback mode. Press to enter SETUP menu. Enable/disable the automatic sequence of display of channels in full screen, quad, 9-split display mode.

  • Page 18: Rear Panel

    1-2. Rear Panel Figure 2.2.1. Rear Panel Table 2.2.1. Rear panel connections ① VIDEO IN: Video input terminal ② HDMI OUT: 1920X1080 Main Monitor ③ VGA: VGA (Video Graphics Array) output terminal. Connects to the PC VGA monitor. ④ AUDIO IN: Four connectors for audio input. ⑤...

  • Page 19: Remote Control

    1-3. Remote control ① ID: When a remote control ID number is set in DVR, press it before number. ② REC: To start and stop manual recording. ③ Number: To select channel (1, 2, 3, & 4) or to enter DVR ID number. ④...

  • Page 20: Setting Up The Dvr

    2. Setting up the DVR The following sections detail the initial setup of a DVR. 2-1. Setup – Main Screen To enter the setup menu, select MENU and SETUP on the screen using the mouse or press the SETUP button on the front panel. Then select a user type. User can select one of user types (ADMIN, USER1, ◀...
  • Page 21 HD VIDEO INPUT: Display a channel, total time, elapsed time, error count, active pixels, total pixels, active lines, total lines and frame rate of HD channel. CONTROL BAR AUTO HIDE: Set to hide automatically or display continuously a control bar on the bottom side in a Live mode.
  • Page 22 MOTION SENSITIVITY – KEY TONE – REMOTE CONTROL ID – SENSOR TYPE  STORAGE – OVERWRITE – DISK FORMAT – DISK INFO – RECORDING LIMIT RECORDING LIMIT DAYS – S.M.A.R.T  SYSTEM – DVR-ID – DESCRIPTION – LANGUAGE – DATE FORMAT –...

  • Page 23: Setup - Display Mode

    2-2. Setup – Display Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select DISPLAY icon and press SEL button to enter the setup menu item. Navigate through the menu items using ◀...

  • Page 24: Setup - Recording Mode

    NAME Set the channel name. Press SEL button and set the channel name and select OK using ◀ ▲ ▶ ▼ the control button ( COVERT Enable/disable display of the video channel in live display mode. VIDEO Select a video output type for HDMI/VGA. Default value is 1280x720p. If the monitor OUTPUT doesn’t support some output type, it would be returned to the previous value.
  • Page 25 Table 2.3.1. Menu items in Recording mode setup Menu item Description ◀ ▲ ▶ CHANNEL Select a channel for applying the following settings using the control button ( ▼ ). Press SEL button to change the setting value of all channels at once. Once you select an item, then press SEL to set value for all channels.

  • Page 26: Recording Schedules

    2-3-1. Recording Schedules To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the items using ◀ ▲ ▶ ▼ the control button ( Once the channel 1 is selected, SCHEDULE-CH1 screen is displayed. Select ALL or each day using the ◀...

  • Page 27: Setup - Device Mode

    C: CONTINUOUS recording, when you select the color will change to Blue Color M: MOTION recording, when you select the color will change to Yellow Color S: SENSOR recording, when you select the color will change to Red Color -: Does not record [ALL]: Move the cursor to ALL and select a recording mode C,M or S using the SEL button to set the same setting for every day.

  • Page 28: Alarm-Out

    Figure 2.4.1. Device mode setup screen Table 2.4.1. Menu items in Device Setup screen Item Description ALARM OUT Set the sensor, motion, and video loss for each alarm. CONTROLLER & PTZ Set the Controller and PTZ camera speed, number, type and CHANNEL Select specified channel for motion zone setup.

  • Page 29: Controller & Ptz Setup

    Table 2.4.2. Menu item in ALARM-OUT Setup screen Item Description ALARM OUT Select an alarm out number. Available NO: 4ch (1) SENSOR IN Enable Alarm Out by Sensor up to 4 Inputs. MOTION ON Enable Alarm Out by Camera Motion up to 4 cameras. VIDEO LOSS ON Enable Alarm Out by Video Loss up to 4 cameras.

  • Page 30: Motion Zone Setup

    SPEED (19200, 14400, 9600, 4800, 2400) ID (0-63) 2-4-3. Motion Zone Setup ◀ ▲ ▶ ▼ Select MOTION ZONE using the control button ( ) and select either PARTIAL ZONE or FULL ◀ ▲ ▶ ▼ ZONE using the control button ( ).
  • Page 31 Figure 2.5.1. STORAGE setup screen Table 2.5.1. Menu items in STORAGE Setup screen Item Description OVERWRITE When enabled, the DVR will continue recording and overwrite the oldest existing recorded data once the hard drive is full. When disabled, recording will stop once the hard drive is full.
  • Page 32 DISK INFO Hard drive information RECORDING Enable/disable recording limit. LIMIT RECORDING Set the recording limit days.(1- 90 days) LIMIT DAYS The data will remove by the hour. S.M.A.R.T. Set the alarm and buzzer by setting HDD temperature limit.

  • Page 33: Setup - System Mode

    2-6. Setup – System Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select SYSTEM icon and press SEL button to enter the menu item. Navigate through the menu items using the ◀...
  • Page 34 ◀ ▲ ▶ ▼ LANGUAGE Select the display language using the control button ( ). Once a language is selected, the display language changes. ◀ ▲ ▶ ▼ DATE Select the date display format using the control button ( ). Options are: FORMAT YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY, YYYY-MM-DD, MM-DD-YYYY, DD-MM- YYYY...
  • Page 35 daylight saving period. ◀ ▲ ▶ ▼ Select BEGIN or END using the control button ( ) and press the SEL button. ◀ ▲ ▶ ▼ Select the item using the control button ( ), select the setting value ◀ ▲ ▶ ▼ using the control button ( ) and press the ESC button to return to SET DATE &...
  • Page 36 TRANSMISSION MODE: Sending an image only of the channel that triggered the alarm when an alarm event is triggered. IP NOTIFICATION: Enable/disable sending e-mail when the IP address of your DVR is changed. EVENT ALARM: Enable/disable sending e-mail reports on the channel that triggered the alarm when an alarm event is triggered.

  • Page 37: Setup - Security Mode

    2-7. Setup – SECURITY Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select SECURITY icon and press SEL button to enter the setup menu item. Navigate through the menu items ◀ ▲ ▶ ▼ ◀...

  • Page 38: Setup - Network Mode

    ▼ ) and SEL button. Enter the current password and select OK. Enter the new password and select OK. Enter the same password again to confirm and select OK. Then the message “PASSWORD CHANGED” is displayed. The factory default password is 1111. AUTHORITY OF Enable/disable a covert function in playback mode.
  • Page 39 Figure 2.8.1. NETWORK setup screen Table 2.8.1. Menu items in Network Setup screen Item Description PORT Port number (Default: 5445) NETWORK AUDIO Port number (Default: 5446) PORT WEB PORT Web Sever Port number (Default: 80) NETWORK TYPE Select a type of network connection. Options are: DHCP and STATIC Note.

  • Page 40: Port And Web Port

    service cannot be available. DDNS INTERVAL: Set the connection interval (5-60minutes) NETWORK STREAM Set the value for network streaming. 2-8-1. Port, Network Audio Port and Web Port When you connect one or more DVRs to a network through an IP sharing device, each device must have a unique TCP port number for access to each unit from outside the LAN.

  • Page 41: Ddns

    Table 2.8.2. LAN Item Description The fixed IP address of the DVR unit. SUBNET MASK The subnet mask for the LAN GATEWAY The IP address of the Gateway DNS (PRIMARY) The address for the DNS server DNS (SECONDARY) The address for the DNS server 2-8-3.

  • Page 42: Network Stream

    2-8-4. NETWORK STREAM User can set the Resolution, the frame rate and the quality for a network stream classified by channel. It is recommended that user should adjust each item to proper level to get the network service smoothly. Figure 2.8.4. Network setup screen – Network Stream 2-9.

  • Page 43: Quick Setup

    Table 2.9.1. Config setup Item Description SAVE SETUP User can save the current configuration (Setting values) of DVR to the TO A USB USB memory stick. Put the USB stick on the front panel and press SEL to start the saving process. LOAD SETUP User can upload the configuration of DVR to another DVR using the USB FROM A USB...

  • Page 44: Saving Setup

    Figure 2.10.1. Quick Setup Screen Table 2.10.1. Quick Setup Item Description USE QUICK Select the Checkbox to use the Quick Setup. SETUP When user inputs the DESIRED DAYS to record, the system displays a recommended resolution, frame rate, quality and recording type after calculating the capacity of the installed HDD.
  • Page 45 Figure 4.1.1. Live Viewing Screen Table 4.1.1. Status Indicator Icons in Live Viewing Screen Icon Description Click the power icon when you want to shut it off by mouse Click the LOCK icon when you want to lock and unlock the DVR by a mouse Click the SETUP icon on the screen using the mouse to see menu items.
  • Page 46 Click this SEQUENCE icon when you want to activate the sequential screen Click this MANUAL RECORD icon when you want to manually record Click this ALARM OUT icon when you want to activate alarm out Click the split screen icon to change the current split screen mode using the mouse or SEL button.

  • Page 47: Search Screen

    Indicates that a network client is connected to the DVR. Indicates that sequencing mode is enabled. Table 4.1.2. Button functions in Live Viewing Screen Button Description Select channel to be displayed in full screen mode. Switch between full screen and quad display mode. Press to start auto sequencing of the screen in full screen mode.

  • Page 48: Time-Line Search

    Figure 4.2.1. Search Screen There are 7 ways of search menu such as TIMELINE, EVENT, GO TO FIRST TIME, GO TO LAST TIME, GO TO SPECIFIC TIME, ARCHIVE and LOG on the screen. 4-2-1. TIME-LINE Search The TIME-LINE search window is used to find the stored video by using the time line bar. When it clicks a Timeline menu, user can see a calendar which has recording data.

  • Page 49: Go To First Time

    Figure 4.2.2. Event Search screen When it clicks an Event menu, user can see a calendar which has recording data. Select a specific date and then user can see all data. Press a PLAY button to playback the data or a SAVE button to save the data at once after selecting a specific data.

  • Page 50: Archive Search

    Figure 4.2.3. Go To Specific Time User can search for video data from a specific instance by setting the date and time in the Go To ◀ ▲ ▶ ▼ Specific Time menu. Use the mouse or the control button ( ) on the remote control to change the date and time value and press the PLAY button after setting.

  • Page 51: Play Mode

    Figure 4.2.5. Log Search Screen When it clicks a Log menu, user can see a calendar which has recording data. Select a specific date and press NEXT button. Then user can see all log data. Press SAVE button to save the data and then the data is saved to text file format.

  • Page 52: Ptz Control

    The following status bar hides automatically and appears again when putting a mouse pointer to the bar. Table 4.3.1. Button functions in PLAY Mode Button Description Return to the previous menu screen, search window, or exit from the Menu Press to rewind the footage at 1x, 2x and 4x speeds. Reverse playback speed is shown as -1x(normal), -2x (2 times normal) and -4x (4 times normal) at the bottom right of the screen.

  • Page 53: Back Up

    ◀ ▲ ▶ ▼ FOCUS button ( ) and press SEL button on the remote control. Adjust the zoom(Mouse Wheel Down or Up/Down button of the remote control)/focus(Mouse Wheel Up or Left/Right button of the remote control)position. Select the OSD to enter the menu. Control keys are Right, Left, UP, Down, Select, Far (REW KEY), and Near (FF KEY).

  • Page 54: Video Backup Onto Usb Flash Memory

    back recorded video. In live mode, press the BACKUP button to launch the archive function or select BACK UP menu on the screen using the mouse. 1. Select a specific channel which wants to backup on live screen. 2. When you press BACKUP button, the archiving screen will display as Figure 6.1.1. 3.

  • Page 55: Transferring Still Images Or Video From The Archive List

    Figure 6.2.1. Video Archiving and Backup Screen The DVR will convert the corresponding portion of the video into an AVI file. 6-3. Transferring still images or video from the ARCHIVE list The stored data onto hard drive will be found in the ARCHIVE list in SEARCH window. User can back up still images or video into the storage device from the ARCHIVE list.

  • Page 56: Playback Of Backup Video

    Figure 6.3.1. Archive Search Screen 6-4. Playback of Backup Video  H.264 format: H.264 format video can be played back by the player (the HD player) that the DVR copies on USB thumb drive with video. Three files are copied on USB thumb drive - H.264 file: H.264 format video file.

  • Page 57: Upgrading Firmware

    7. Upgrading Firmware In order to upgrade, the firmware upgrade file must first be downloaded and copied into the USB memory stick. Create a new folder in the USB memory stick and name it “upgrade”. Copy the firmware upgrade file “xxxxxx.bin”...
  • Page 58 3. You can see the following message when pressing the scan button. Please check the current firmware version and the firmware version which you want to upgrade. 4. You can see the following progressive message when pressing the upgrade button. 5.
  • Page 59 6. You could see the following warning message if you don’t pull out the USB memory stick. Remote Firmware Upgrade User can upgrade the firmware via Network as follows. 1. Go to the Remote Setup menu on the UMS Multi or Web Viewer.
  • Page 60 2. Press the password for admin. Just admin is possible to connect to the remote setup menu. 3. Go to the Remote Upgrade menu. Then, you can see the current F/W version as follows. To upgrade a new F/W, insert the F/W in your PC and press the UPGRADE button.
  • Page 61 4. Then, you can see the following progress bar and it would be taken around 150 seconds to upgrade. 5. When finishing the upgrade, the network streaming would be connected again automatically and you can see the following screen. Please check the current F/W version if the upgrade is succeeded.

  • Page 62: Network Access Using The Exclusive Network Viewer, Ums Single

    8. Network access using the Exclusive network viewer, UMS single The DVR provides a live remote monitoring feature. Remote monitoring requires installation of the network viewer on your PC. NOTICE In a high bandwidth network, a maximum of four users can access one DVR simultaneously. In a low bandwidth network it is recommended that only one user access the DVR at a time.

  • Page 63: Live Monitoring Mode And Functions

    After the installation is completed, “UMS Client” icon is displayed on the desktop. 8-3. Live monitoring mode and functions. Button Function Description DATE & TIME Displays the current date and time. CONNECT/DISCONNECT Connect/disconnect network connection. SEARCH Switches the live mode to search mode. DISPLAY MODE Select a channel and screen display mode.
  • Page 64 SETUP Display the setup screen of the network viewer. HDD USAGE DVR HDD storage Indicator. NETWORK BANDWIDTH Shows the transferred frames and network bandwidth. AUDIO Adjust the volume. The audio can be turned on or off by clicking the audio icon.

  • Page 65: Bi Directional Audio

    1. Click the channel to be captured. Then the channel screen is surrounded with a red line. 2. Click the CAPTURE button. Then the IMAGE CAPTURE dialog is displayed. 3. Set the conditions and click OK button. Then still-image is saved. 8-4.
  • Page 66 LIVE Switches the search mode to live mode. CAPTURE Capture a still image from live screen. MARK IN Set the start time for video backup. MARK OUT Set the ending time for video backup. BACKUP Backup the selected recorded video as AVI format.
  • Page 67 4. Press the PLAY button. Then the video recorded in the remote DVR is played back. Backup of video in the remote DVR Video recorded in the remote DVR cab be backed up on the PC HDD as AVI format. 1.

  • Page 68: Pc System Configuration

     Start time / Stop time: Backup time can be changed.  File path: Shows the folder that the backup file is recorded.  Channel: Shows backup channel. 8-6. PC System configuration Click the SETUP button. Then the Setup dialog is displayed. Setting General Set the Security Option, Save Path, and Miscellaneous.
  • Page 69  Automatic reconnection: If a user selects this function, the client S/W will automatically try to connect to the previously connected IP address if the network connection is lost.  Display network statistics: If a user selects this function, the client S/W will display network status, Bit rate and Frame rate.
  • Page 70 Setting Record Set the recording conditions and select channels to record. Select the local disk to use and the amount of disk space you want to allow the program to use for recording.

  • Page 71: Network Access Using The Exclusive Network Viewer, Ums Multi

    9. Network access using the Exclusive network viewer, UMS multi 9-1. Overview The UMS Multi-Client is a multiple site monitoring client software with; video, audio, and alarm signals from the DVRs over networks. The UMS Multi-Client does not limit the number of DVR units to register. The program displays to up 256 live videos on one display and even playback videos window on the same or another display monitor.

  • Page 72: Live Window

    3. Select the program folder and click “Next”. 4. The setup status screen is displayed. 5. After the installation is completed, “UMS Multi Client” icon displays on the desktop screen. 9-4. Live Window When installation is completed, double click the “UMS Multi Client” icon on your desktop to start the program.

  • Page 73: Main User Interface

    9-4-1. Main user interface 9-4-2. Control buttons Button Description Click this icon to run a playback window to search and play videos that are recorded in local PC. LOCAL PLAYBACK Click this icon to run a playback window to search and play videos that are recorded in remote DVR.

  • Page 74: Search And Playback Window

    Click this icon to play/pause live video. PAUSE ALARM ON Enable or disable recording of live video to local disk which has RECORD ON set in setup menu. Use the volume control bar to set the audio level. AUDIO Use the micro phone volume control bar to set the micro phone level.

  • Page 75: Main Control Panel

    9-5-2. Main control panel Button Description Click this icon to run a playback window to search and play videos that are recorded in local PC. LOCAL PLAYBACK Click this icon to run a playback window to search and play videos that are recorded in remote DVR. REMOTE PLAYBACK Directory window shows site/sites that are pre-registered.
  • Page 76 Click this icon to connect the selected site/sites. CONNECT Click this icon to disconnect the selected site/sites. DISCONNECT Click this icon to setup configuration of UMS MULTI CLIENT. SETUP Click this icon to capture a still image. CAPTURE EVENT LIST Click this icon to set the beginning time for backup of the MARK IN recorded video in AVI format.

  • Page 77: Setup Of Ums Multi Client

    To change a time line scale from 24 hours to 60 minutes or vise versa. The timeline shows recorded data in color on the bar. You can adjust the time line scale and move it to the time you wish to playback.

  • Page 78: Event

    Automatic reconnection: If a user selects this function, client S/W will automatically try to connect the finally connected IP address, after the network is disconnected. Always On Top: If a user selects this function, client S/W will display continuously at the very front than other software on the PC.

  • Page 79: Record

    9-6-2-2. Archiving Event Log: Event log can be searched from selected time. 9-6-3. Record 9-6-3-1. Record setup: You can set the recording conditions for Always, Event, or Auto record. And you can also select target DVR/DVRs and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration. 9-6-3-2.

  • Page 80: Osd

    recording when the maximum amount of disk space is full. 9-6-4. OSD You can select the OSD to be display 9-6-5. Language You can select a language to be display.

  • Page 81: About

    9-6-6. About “About” provides network client version information. 9-7. Remote Setup The menu settings for the DVR unit can be set from a PC, via network. Put the cursor of the mouse on the channel which is connected to the site and press the right. Then the following window is displayed.
  • Page 82 9-7-1. Display User can set the value on this remote setup page. After setting the value, please press the APPLY button. Then the value would be applied to the system without the system rebooting. RELOAD button is used when user want to bring the value in the system.
  • Page 83 9-7-2. RECORD 9-7-3. DEVICE...
  • Page 84 9-7-4. STORAGE 9-7-5. SYSTEM...
  • Page 85 9-7-6. NETWORK 9-7-7. UPGRADE Please refer to page 54 for the Remote Upgrade.

  • Page 86: Operation

    9-8. Operation 9-8-1. Addition, Delete, and modify of DVR sites 9-8-1-1. Addition of sites 1. Click SITE ADDITION button. And then the following window displays. o Model: User has to select surely a suitable type. SDVR series, H series DVR N series DVR, HD DVR IP Camera o Site Name: Input a name that properly describes a site.
  • Page 87 2. Click SITE DELETE button. And then the selected site/sites is/are deleted. 9-8-1-3. Modify of sites 1. Select the site/sites to modify from the directory window. 2. Click NET FINDER button. And then the following window displays.

  • Page 88: Connect And Disconnect

    3. Click MODIFY button. And then the modified information is applied. 9-8-2. Connect and Disconnect 9-8-2-1. Connect 1. Select site/sites to connect from the directory window. 2. Click CONNECT button, and then site/sites displays/display as connected.

  • Page 89: Still-Image Capture During Live

    9-8-2-2. Disconnect 1. Select site/sites to disconnect from the directory window. 2. Click DISCONNECT button, and then selected site/sites disconnected. 9-8-3. Still-image capture during Live 1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.). 2.

  • Page 90: Recording Video On Local Pc During Live

    3. Set Save path, File Name, and File Format. And then click OK button. 4. Still image is saved as set in Capture window. 9-8-4. Recording video on local PC during Live 1. Click SETUP button. And then a setup window display. 2.

  • Page 91: Local Playback And Remote Playback

    4. Click RECORD ON button. And the color of button is changed. 5. Live video data is recorded as set in Record and Disk setup. These video data can be searched and play-backed with Local Playback. 9-8-5. Local Playback and Remote Playback 9-8-5-1.
  • Page 92 3. Click CONNECT button. And then Green bar displays on Search calendar and slide window. 4. Move scroll bar on where there is video data and Play button. 5. Video data that is recorded on local PC will be play-backed. 9-8-5-2.

  • Page 93: Avi Backup During Playback

    4. Move scroll bar on where there is video data and Play button. 5. Video data that is recorded on a remote DVR is play-backed. 9-8-6. AVI Backup during playback You can back up the recorded videos in AVI format during playback. 1.
  • Page 94 4. Set the ending time on the blue timeline by dragging the scale on the target time as the ending time of backup and clicking MARK OUT button. Then, color of the timeline between the beginning time and ending time will be changed into dark Green. 5.

  • Page 95: Network - By An Web-Browser Viewer

    Notice When it does a backup with NSF format, user can do a playback using the DVR player. The DVR player is installed with the S/W in user’s PC. 10. Network – By an web-browser viewer The DVR provides a live remote monitoring feature by web-browser viewer. 1.
  • Page 96 6. Click CONNECT button on the Left upper corner of web-viewer. Then “Connect” dialog is displayed. Enter IP address (or Domain name address that you pre-registered on www.bestddns.com, www.okddns.com or www.ddnscenter.com, Port number and Password and click “Connect”  Server address: Input IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or Domain name address that you pre-registered on www.bestddns.com, www.okddns.com or www.ddnscenter.com, ...
  • Page 97  ID: Input ID of DVR.  Password: Input network password of DVR. (The number is set on SETUP>SYSTEM>NETWORK PASSWORD.) 7. Then the cameras connected to the DVR are displayed on the screen. 8. SETUP: The menu settings for the DVR unit can be set from a PC, via network. Refer to the detail of Remote Setup description of UMS Multi Client.

  • Page 98: Appendix: How To Connect Network

    APPENDIX: How to connect network A. How to set IP address of the DVR and open TCP port of the router? The port forwarding is dependent on the brand and model of the router. The port forwarding is required to allow access to the DVR beyond a router.
  • Page 99 Open your web browser. Enter the router IP address in the address bar (The router IP address are different with the brand and model.), click GO. 4. Enter the user name and password (admin is default) and press the OK button. 5.

  • Page 100: How To Access Dvr From Remote Pc

    IP address: Enter the IP address of the DVR on SETUP>NETWORK>LAN>IP ADDRESS. Enable: Check the enable box. 7. Select the Save settings button located on the bottom of the window. Then Port forwarding is finished. Network access beyond a router In order to access the DVR remotely beyond a router (firewall), the user must open TCP port for command level, live channels and storage channels.
  • Page 101 4. Input Site Name, Site Address(IP address), Port No., and Password on the connect window. And click OK. Then, press button after checking the left check box. Internet (ADSL) Connection using DDNS Connect to the system, using an Router or ADSL modem and an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN cable) 1.
  • Page 102 5. Domain Name: Input Domain Name for your DVR system 6. Click the DUPLICATION CHECK button to see if the domain name is available. 7. If you see the screen “You can use the Domain name you entered” then click RETURN and click REGISTER button to complete the registration.

  • Page 103: How To Access Dvr With Iphone

    C. How to access DVR with iPhone? 1. Run App Store. 2. Search “iums” 3. Touch “iums” icon. 4. Install “iums” 5. Run “iums” icon. 6. Touch “+” icon.
  • Page 104 7. Input the information. 8. Touch “Save” icon. 9. Touch the added site. 10. Select Channels and Connect 11. 4CH splitted Image 12 Single Channel...

  • Page 105: How To Access Dvr With Android

    D. How to access DVR with Android? 1.Run Android Market. 2. Search “iUMS” 3. iums를 검색합니다. 4.Install “iUMS”. 5. Run “iUMS” 6. Register user. 7. Touch Live View. 8. Add the Site or Device. 9. Select Channels.
  • Page 108 Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videor.com...
