Focal Point EVOKE LED ELECTRIC Installation & User's Instructions

Focal Point EVOKE LED ELECTRIC Installation & User's Instructions

Wall mounted led electric fire

Advertisement

Quick Links

INSTALLATION & USER INSTRUCTIONS
WALL MOUNTED LED ELECTRIC FIRE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
Questions or problems with your appliance?
Don't take it back to the store
just give us a call on
lines open between 9am and 5pm, Monday to Friday
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
MODELS COVERED BY THESE INSTRUCTIONS
EVOKE LED ELECTRIC
01202 588601
we're here to help
All instructions must be handed to the user for
Revision C - 06/14
1

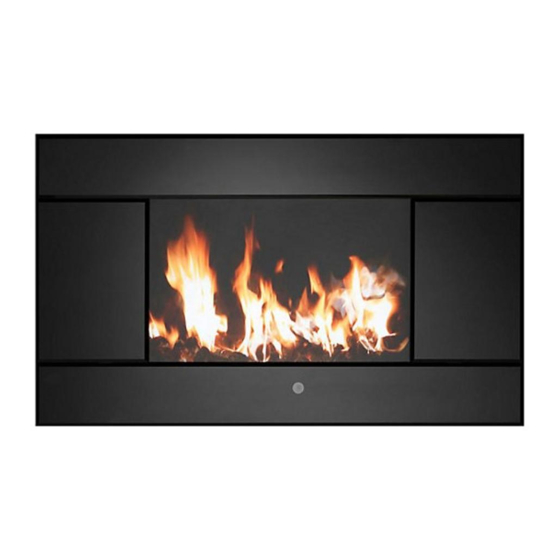

Figure 1 : Evoke
safekeeping.
©
2014 Focal Point Fires plc.
GB IE
