55" Fiberglass Exhaust Fan
55" Fiberglass Exhaust Fan
NOTE: Read ALL instructions over carefully before attempting
NOTE: Read
ALL
instructions over carefully before attempting
to install the Storm with cone.
to install the Storm with cone
If you have any questions please call your local dealer or
J&D Manufacturing at: 1-800-998-2398.
Or visit our website at: www.jdmfg.com
WARRANTY
J&D Mfg. warrants all products are free from defects in materials and workmanship under
normal use for the period of one year from date of purchase and our warranty does not
cover normal or regular wear and tear. J&D Mfg can repair or replace at our option, any
product or part of the product that is found to be defective. Our warranty applies to
materials only and does not include return freight, delivery, loss or damage to personal
property, cost of removal or installation, any incidental or consequential damages or labor.
This warranty does not apply to products which are misused, abused, altered, improperly
installed or subject to negligence. All warranties must be approved through our warranty
department. The original purchaser must present a copy of the invoice for the defective
product. One year is our standard warranty unless specified on our literature or in the
Installation Instructions/user manuals.
RECOMMENDED TOOLS FOR INSTALLATION AND ASSEMBLY
(NOT PROVIDED)
Safety Glasses
Socket Wrench
Rivet Gun
Measuring
Tape
IS198-09H
WITH CONE
Drill
1/2"
and Drill Bits
Socket
3/16"
3/8"
Phillips
Screwdriver
INCLUDED ASSEMBLY HARDWARE - TO SCALE
(13) Phillips Truss Bolt
5/16"-18 x 1"
(13) Nylock Flange Nut
(8) Flat Washer
5/16"-18
INSTALLATION HARDWARE IS NOT PROVIDED

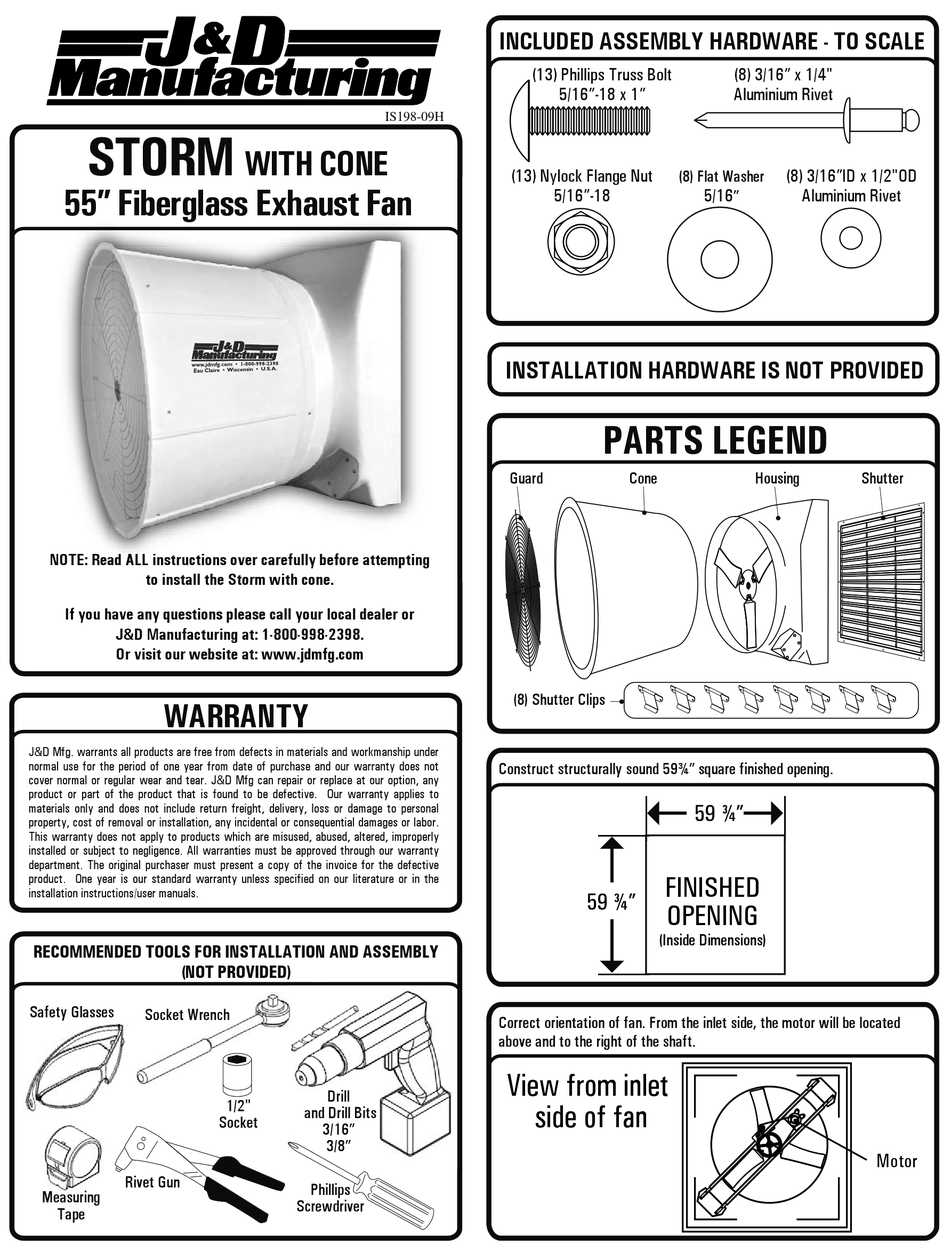

PARTS LEGEND
Guard
Cone
(8) Shutter Clips
Construct structurally sound 59¾" square finished opening.
FINISHED
59 ¾"
OPENING
(Inside Dimensions)
Correct orientation of fan. From the inlet side, the motor will be located
above and to the right of the shaft.
View from inlet
side of fan
(8) 3/16" x 1/4"
Aluminium Rivet
(8) 3/16"ID x 1/2"OD
5/16
Aluminium Rivet
"
Housing
Shutter
59 ¾"
Motor
