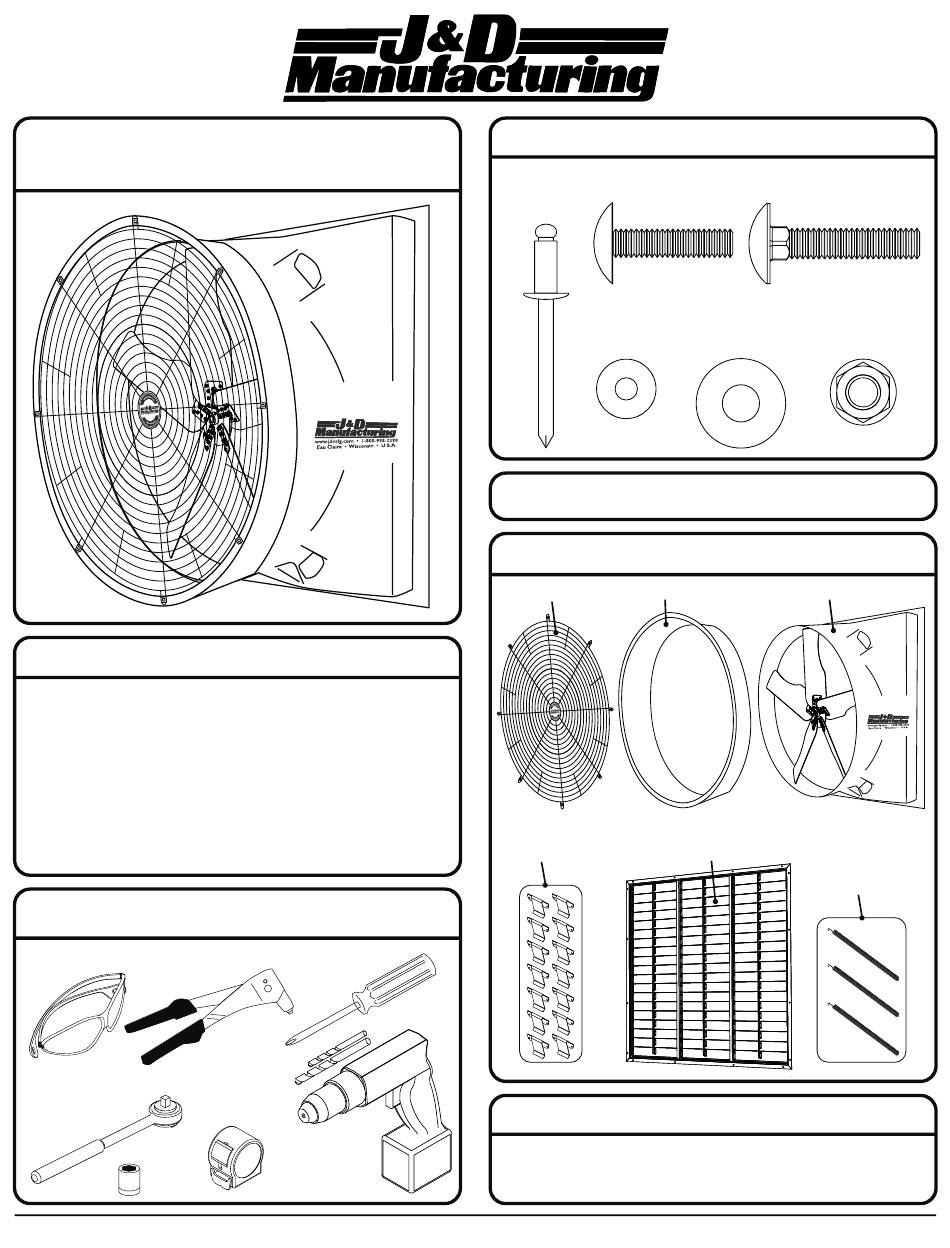

MEGA STORM II WITH CONE
72" FIBERGLASS EXHAUST FAN
WARRANTY
J&D Manufacturing warrants all products are free from defects in materials and
workmanship under normal use for the period of one year from date of purchase.
Our warranty does not cover normal or regular wear and tear. J&D Manufacturing
can repair or replace at our option, any product or part of the product that is found
to be defective. Our warranty applies to materials only, and does not include return
freight, delivery, loss or damage to personal property, cost of removal or
installation, any incidental or consequential damages or labor. This warranty does
not apply to products which are misused, abused, altered, improperly installed or
subject to negligence. All warranties must be approved through our warranty
department. The original purchaser must present a copy of the invoice for the
defective product. One year is our standard warranty unless specified on our
literature or in the installation instructions or user manuals.
RECOMMENDED TOOLS FOR INSTALLATION AND ASSEMBLY
(NOT PROVIDED)
Safety Glasses
Rivet Gun
Socket Wrench
1/2" Socket
IS251-17E
Phillips Head
Screwdriver
Measuring
Tape
Drill and
3/16"& 5/16"
Drill Bits
J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com
INCLUDED ASSEMBLY HARDWARE - TO SCALE
(14)
(8)
S. Steel Rivet
Phillips Truss Bolt
3/16" x 1/2"
5/16"-18 x 1"
(14)
Backup Washer
3/16"ID x 1/2"OD
INSTALLATION HARDWARE IS NOT PROVIDED
PARTS LEGEND
Cone
Guard
(14)
Shutter Clips
INSTALLATION
Please read over all instructions carefully before you begin.
If you have any questions please call your local dealer, or
contact J&D Manufacturing at 1-800-998-2398.
(8)
Carriage Bolt
5/16"-18 x 1-1/4"
(8)
(16)
Flat Washer
Nylock Flange Nut
5/16"
5/16"-18
Housing
(3)
Shutter
Shutter Springs
(for aluminum shutter
models only)
Page 1/6
Advertisement
Related Manuals for J&D MAnufacturing MEGA STORM II
Summary of Contents for J&D MAnufacturing MEGA STORM II
- Page 1 MEGA STORM II WITH CONE INCLUDED ASSEMBLY HARDWARE - TO SCALE 72” FIBERGLASS EXHAUST FAN (14) S. Steel Rivet Phillips Truss Bolt Carriage Bolt 3/16” x 1/2” 5/16”-18 x 1” 5/16”-18 x 1-1/4” (14) (16) Backup Washer Flat Washer Nylock Flange Nut 3/16”ID x 1/2"OD...
- Page 2 Construct structurally sound 77” Correct orientation of fan. Drainage Measure and mark the exterior of the venturi 2” from edge of opening as square rough opening. holes down. NOTE: Drainage holes shown in illustration. These will be your guides for properly installing the MUST be free from obstruction.
- Page 3 Using marks made in Step 4 as your guide secure housing to structure Using the 6 pre-drilled holes in the cone and a 5/16” drill bit, drill matching using hardware suitable for your structure (not included) and washers holes in venturi and secure with (8) 5/16” phillips truss bolts, (8) 5/16” flat compatible with your hardware (not included).
-
Page 4: Disconnect Power
DISCONNECT POWER If the fan has a poly shutter your installation is done, proceed to end to review the Maintenance Instructions. BEFORE INSTALLING OR SERVICING. ALL ELECTRICAL WORK SHOULD BE COMPLETED BY Measure 4” from each tie bar and mark shutter frame lip as shown. QUALIFIED PERSONNEL AND MEET NATIONAL (NEC), REGIONAL AND LOCAL ELECTRIC CODES. - Page 5 At each location drilled in Step 11 attach loop end of spring to shutter Identify shutter bracket on 3rd shutter louvre from the bottom. Attach frame lip as shown below. shutter spring hook through hole in the bottom of the shutter louvre bracket as shown below.
-
Page 6: Maintenance Instructions
MAINTENANCE INSTRUCTIONS • To prevent serious injury or death, disconnect power before cleaning or maintaining fan or fan motor. • Service and repair of fan and motor should only be completed by a qualified technician. • Lubrication › — If fan motor has grease fittings adhere to the lubrication schedule and quantity as stated on yellow motor label. - Page 7 WARNING Venturi DO NOT remove any of the 2x4’s from either side of the fan. This fan is top heavy, failure To unpack to unpack properly can result slide fan this way in bodily injury and/or damage to the fan. To safely unpack fan follow the below steps.
