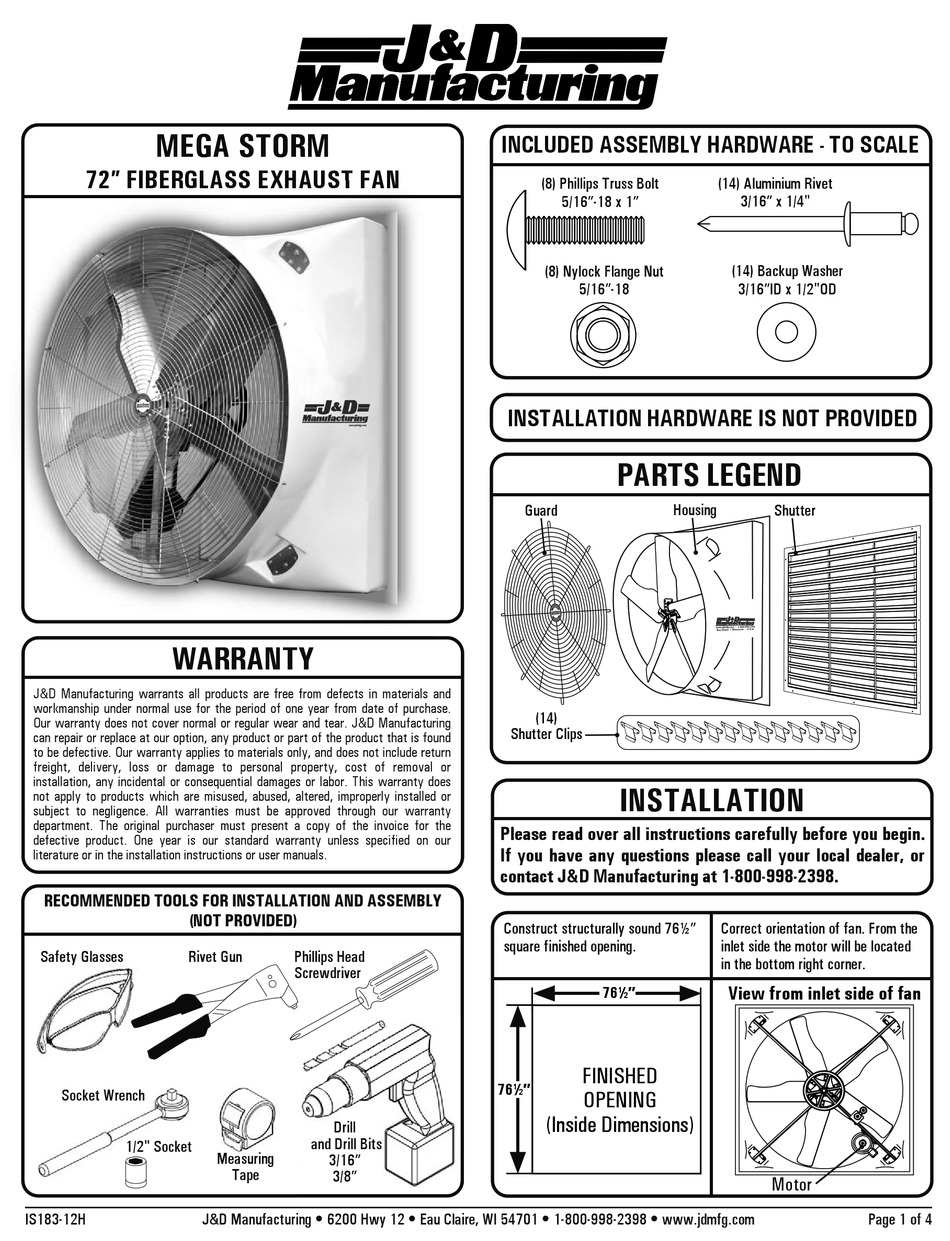

MEGA STORM
72" FIBERGLASS EXHAUST FAN
72 FIBERGLASS EXHAUST FAN
WARRANTY
WARRANTY
J&D Manufacturing warrants all products are free from defects in materials and
workmanship under normal use for the period of one year from date of purchase.
Our warranty does not cover normal or regular wear and tear. J&D Manufacturing
can repair or replace at our option, any product or part of the product that is found
to be defective. Our warranty applies to materials only, and does not include return
freight, delivery, loss or damage to personal property, cost of removal or
installation, any incidental or consequential damages or labor. This warranty does
not apply to products which are misused, abused, altered, improperly installed or
subject to negligence. All warranties must be approved through our warranty
department. The original purchaser must present a copy of the invoice for the
defective product. One year is our standard warranty unless specified on our
literature or in the installation instructions or user manuals.
RECOMMENDED TOOLS FOR INSTALLATION AND ASSEMBLY
(NOT PROVIDED)
Safety Glasses
Rivet Gun
Socket Wrench
1/2" Socket
1/2" Socket
IS183-12H
J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com
Phillips Head
Screwdriver
Drill
and Drill Bits
Measuring
3/16"
Tape
3/8"
INCLUDED ASSEMBLY HARDWARE - TO SCALE
(8) Phillips Truss Bolt
5/16"-18 x 1"
(8) Nylock Flange Nut
5/16"-18
INSTALLATION HARDWARE IS NOT PROVIDED
PARTS LEGEND
Guard
Housing
(14)
Shutter Clips
INSTALLATION
Please read over all instructions carefully before you begin.
If you have any questions please call your local dealer, or
contact J&D Manufacturing at 1-800-998-2398.
Construct structurally sound 76½"
square finished opening.
76½"
FINISHED
76½"
OPENING
(Inside Dimensions)
(14) Aluminium Rivet
3/16" x 1/4"
(14) Backup Washer
3/16"ID x 1/2"OD
Shutter
Correct orientation of fan. From the
inlet side the motor will be located
in the bottom right corner.
View from inlet side of fan
Motor
Page 1 of 4
Advertisement
Related Manuals for J&D MAnufacturing JD-VMSA72N
Summary of Contents for J&D MAnufacturing JD-VMSA72N
- Page 1 MEGA STORM INCLUDED ASSEMBLY HARDWARE - TO SCALE 72” FIBERGLASS EXHAUST FAN 72 FIBERGLASS EXHAUST FAN (8) Phillips Truss Bolt (14) Aluminium Rivet 5/16”-18 x 1” 3/16” x 1/4" (8) Nylock Flange Nut (14) Backup Washer 5/16”-18 3/16”ID x 1/2"OD INSTALLATION HARDWARE IS NOT PROVIDED PARTS LEGEND Guard...
- Page 2 Using a 3/8” drill bit, drill a hole in the top of the venturi 1” from the edge. Using the measurements below and a 3/16” drill bit, drill a total of 14 holes in the housing flange 1/2” from the flange edge. Place guard inside venturi opening and secure top of guard to top of venturi by inserting a 5/16”...
- Page 3 PROVIDING POWER TO FAN Attach all (14) shutter clips with a rivet gun using (14) 3/16” rivets and (14) 3/16” backup washers. Review the illustrations below for placement and assembly. • Wiring should only be performed by a trained electrician to prevent injury or death.
-
Page 4: Maintenance Instructions
MAINTENANCE INSTRUCTIONS • Disconnect power before cleaning or maintaining your fan in order to prevent serious injury or death. • Service and repair of fan should only be completed by a qualified technician. • For maximum efficiency and fan life, keep the following free from dirt and dust: shutter louvres, blades, motor and guard.
