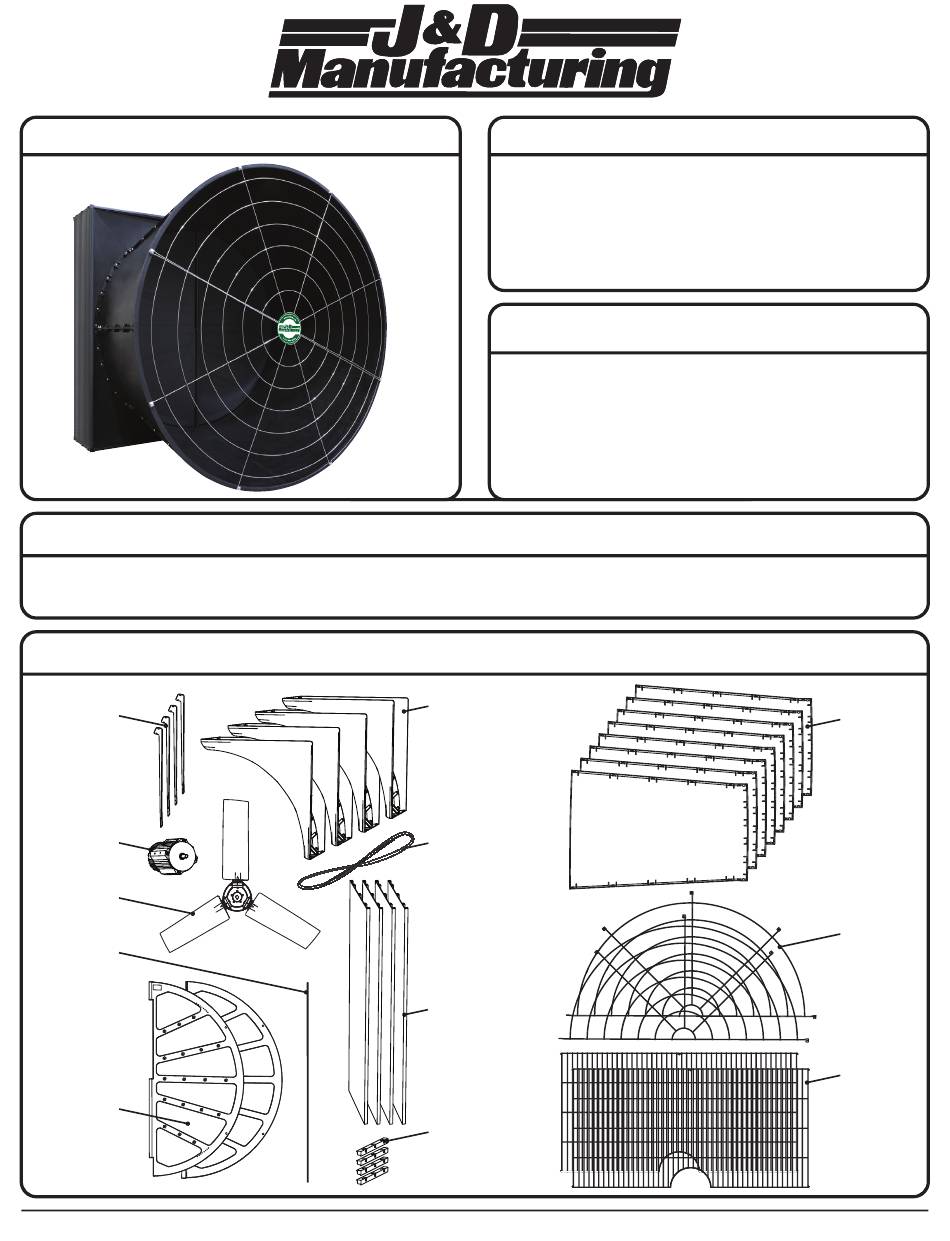

MAGNUM 58" EXHAUST FAN
If you have any questions please call your local dealer, or contact J&D Manufacturing at 1-800-998-2398.
(4) Motor
Brackets
Motor
Prop
Metal
Damper
Door Rod
(2) Damper
Doors
IS295-20H
Please read over ALL instructions carefully before you begin.
J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com
J&D Mfg. warrants this products is free from defects in materials and workmanship under
normal use for the period of three years from date of purchase. Our warranty does not cover
ordinary wear and tear. J&D Mfg can repair or replace at our option, any product or part of
the product that is found to be defective. Our warranty applies to materials only and does not
include return freight, delivery, loss or damage to personal property, cost of removal or
installation, any incidental or consequential damages or labor. This warranty does not apply to
products which are misused, abused, altered, improperly installed or subject to negligence. All
warranties must be approved through our warranty department. The original purchaser must
present a copy of the invoice for the defective product.
RECOMMENDED TOOLS FOR INSTALLATION AND ASSEMBLY
- Safety Glasses
- Socket Wrench
- 1/2" Socket
- 1/4" Nut Driver
- 1/2" Wrench
INSTALLATION
PARTS LEGEND
(4) Venturi
Sections
Rubber
Gasket
Housing
Side Panels
(4) Housing
Corner Caps
WARRANTY
(NOT PROVIDED)
- 3/8" Wrench
- 10 ft-lb Torque Wrench
- Impact Driver
- 23 ft-lbs Torque Wrench
- Drill
- Cutting Device
(for Rubber Gasket)
- 1/8" Drill Bit
- 13/64" Drill Bit
(8) Cone
Sections
(2) Front
Guards
(2) Rear
Guards
