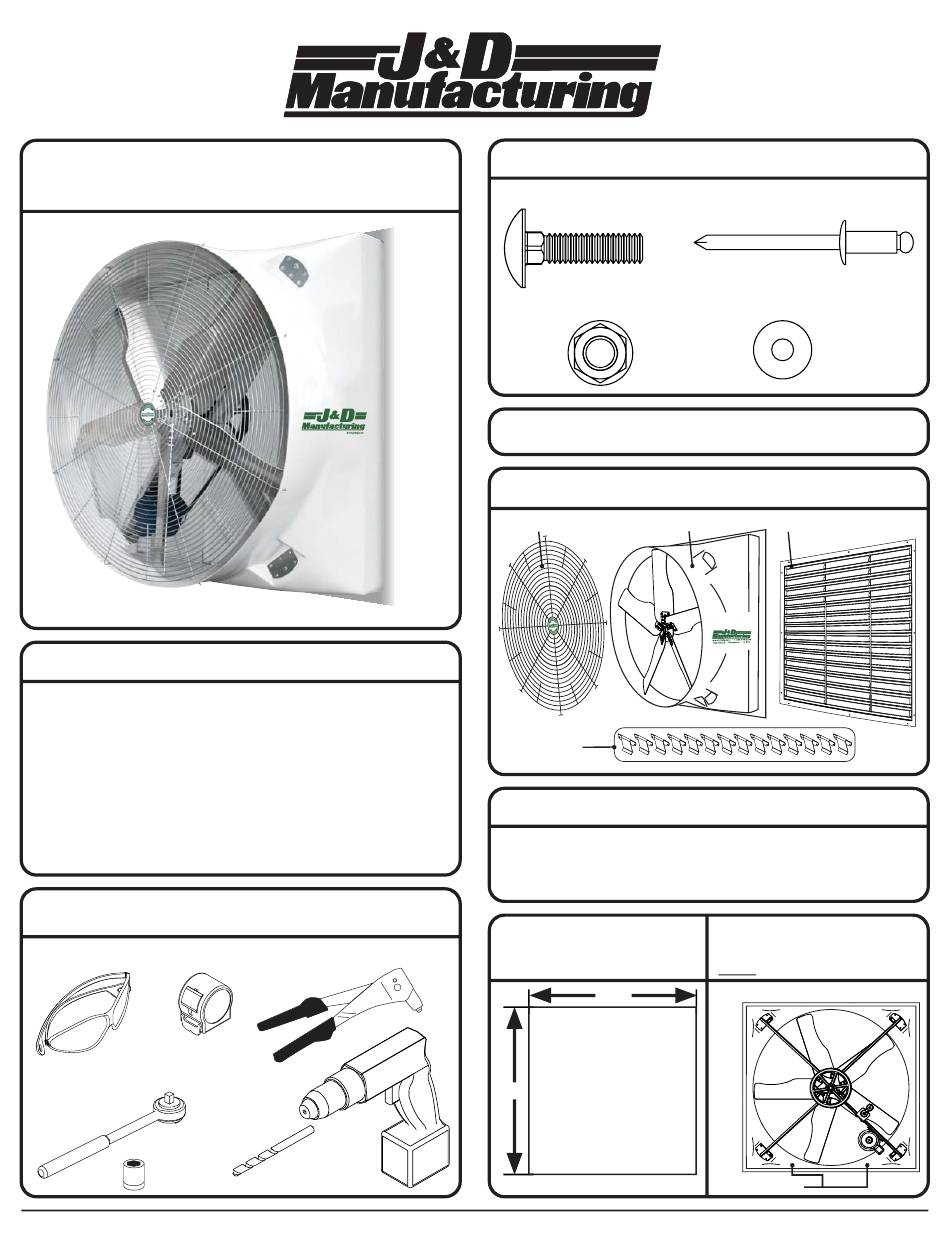

MEGA STORM
72" FIBERGLASS EXHAUST FAN
WARRANTY
J&D Manufacturing warrants all products are free from defects in materials and
workmanship under normal use for the period of one year from date of purchase.
Our warranty does not cover normal or regular wear and tear. J&D Manufacturing
can repair or replace at our option, any product or part of the product that is found
to be defective. Our warranty applies to materials only, and does not include return
freight, delivery, loss or damage to personal property, cost of removal or
installation, any incidental or consequential damages or labor. This warranty does
not apply to products which are misused, abused, altered, improperly installed or
subject to negligence. All warranties must be approved through our warranty
department. The original purchaser must present a copy of the invoice for the
defective product. One year is our standard warranty unless specified on our
literature or in the installation instructions or user manuals.
RECOMMENDED TOOLS FOR INSTALLATION AND ASSEMBLY
(NOT PROVIDED)
Safety Glasses
Measuring Tape
Socket Wrench
1/2" Socket
IS183-17E
Rivet Gun
Drill
and Drill Bit
3/8"
J&D Manufacturing • 6200 Hwy 12 • Eau Claire, WI 54701 • 1-800-998-2398 • www.jdmfg.com
INCLUDED ASSEMBLY HARDWARE - TO SCALE
(8) Carriage Bolt
5/16"-18 x 1"
(8) Nylock Flange Nut
5/16"-18
INSTALLATION HARDWARE IS NOT PROVIDED
PARTS LEGEND
Guard
Housing
(14)
Shutter Clips
INSTALLATION
Please read over all instructions carefully before you begin.
If you have any questions please call your local dealer, or
contact J&D Manufacturing at 1-800-998-2398.
Construct structurally sound 77"
square rough opening.
77"
ROUGH
77"
OPENING
(Inside Dimensions)
(14) Stainless Steel Rivet
3/16" x 1/2"
(14) Backup Washer
3/16"ID x 1/2"OD
Shutter
Correct orientation of fan. Drainage
holes down. NOTE: Drainage holes
MUST be free from obstruction.
View from inlet side of fan
Drainage Holes
Page 1/4
