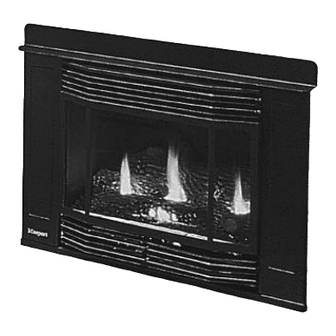

- Page 1 Masport Inbuilt Gas Fireplace - 1 -...
- Page 2 MASPORT INBUILT GAS FIREPLACE TO THE NEW OWNER Congratulations! You are the owner of a state-of-the-art Gas Inbuilt by Masport. The Masport Gas Fireplace Series of hand crafted appliances has been designed to provide you with all the warmth and charm of a fireplace at the flick of a switch. This model has been approved by the Australian Gas Association for both safety and efficiency.
-
Page 3: Table Of Contents
Gas Connections ........8 Fascia Installation - Mantel ......9 Maintenance - Bevelled....10 Flush Front..........11 General Maintenance.......15 Servicing ..........15 Log Replacement ........16 Glass Gasket ...........16 Gold Plated Trim........16 Door Glass Replacement ......16 Fan Maintenance ........16 Troubleshooting ........18 Masport Inbuilt Gas Fireplace - 3 -... -
Page 4: Wiring Diagram
MILLIVOLT WIRING DIAGRAM 240V WIRING DIAGRAM Masport Inbuilt Gas Fireplace - 4 -... -
Page 5: For Your Safety
SAVE THESE INSTRUCTIONS codes or in the absence of local codes, to AG601, NZS5261. This appliance MUST be installed by an The Masport Gas Fireplace must be installed in authorized gas fitter technician only. accordance with these instructions. Carefully read all the instructions in this manual first. -
Page 6: Copy Of Lighting Plate Instructions
When connected with 240 volts, the appliance must be electrically grounded in accordance with local codes. INSTALLATION SEQUENCE The Masport Gas Insert is installed in the steps as listed below. Detailed instructions follow. 1) Check the clearances to ensure that the fire will fit the fireplace recess and clearances to combustibles will be maintained. -
Page 7: Minimum Fireplace Clearances
Clear away any loose rubble and inspect before installing the fireplace. All Masport heaters are tested to New Zealand and Australian standards. Clearances are for fire hazard only. For durability of finishes and surfaces you should contact the relevant manufacturer for their specification. -
Page 8: Fluing
3.6m recommended. B-Vent must be supported by a flue support - supplied by flue manufacturer. The Masport Insert incorporates its own internal draft hood, so no additional external draft hood is required. Periodically check that the flue is unrestricted and an adequate draft is present when the unit is in operation. -
Page 9: Fascia Installation - Mantel
See Fig 1 (bottom). 1) Locate the center point where the flue will pass 4) If not already fitted, push the Masport logo badge through the chimney above the appliance. Move into the holes in the bottom left corner of the fascia the appliance into the exact location where it is to and attach it using the clips provided. -
Page 10: Bevelled
LH side panel. The fan switch (3 terminals) must be in the bottom hole and the on-off switch (2 terminals) must be in the top hole. See Fig 2. Masport Inbuilt Gas Fireplace - 10 -... -
Page 11: Flush Front
2) Remove the bottom RH louvre by lifting it upwards and outwards to clear the retaining pins. 3) Open the LH bottom louver and lift it off it’s hinge. Masport Inbuilt Gas Fireplace - 11 -... -
Page 12: Ember Installation
3) Place embers in front of the burner as shown. Do not cover the small round burner ports. Embers can be placed along the front of the tray and down the sides to hide the black steelwork etc. Masport Inbuilt Gas Fireplace - 12 -... -
Page 13: Optional Wall Thermostat
INSTALLATION from "PILOT" to "OFF" unless it is partially depressed. Use the Optional Masport Remote Control Kit approved 1) On NZ models, open the left hand bottom louvre for this unit. Use of other systems may void your assembly by lifting the wooden knob and pulling warranty. -
Page 14: Shutdown Procedure
Fan: Masport gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the FIRST FIRE fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the The first fire in your stove is part of the curing process. -
Page 15: General Maintenance
1) Always turn the gas valve to OFF before cleaning. For relighting, refer to lighting instructions. Keep the We recommend that you have your Masport heater burner and control compartment clean by brushing checked yearly by an authorized installer. This periodic and vacuuming at least once a year. -
Page 16: Log Replacement
Door Glass Replacement Note: The unit MUST NOT be operated without the fan access panel securely in place. Your Masport stove is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the To remove fan: highest heat that your unit will produce. In the event... -
Page 17: Cleaning Instructions
All visible flame gas heaters can produce small non-scratching type household cleaning liquid. amounts of soot, particularly if the combustion air Masport Inbuilt Gas Fireplace - 17 -... -
Page 18: Troubleshooting
The following table lists possible problems and their likely causes. Most of these will require a professional serviceman and we recommend that this work be performed by an Authorized Installer. If a problem cannot be solved after referring to this table, please call your Masport gas fire Dealer for help. PROBLEM... - Page 19 Fan will not run. No power to fan. Make sure fan plug is firmly home and that fan switch is not in the OFF position. Check that the power socket works with another appliance. Masport Inbuilt Gas Fireplace - 19 -...
- Page 20 INSTALLED BY: ____________________________ DATE: ____________________________ Masport Gasfires are manufactured in New Zealand by MASPORT LTD. 1/37 MT WELLINGTON HIGHWAY. P.O. Box 14-349 Panmure, Auckland New Zealand. A.G.A. Approvals: MG 5000 Inbuilt NG and MG 5000 Inbuilt LP - Both Certificate No 5656...
