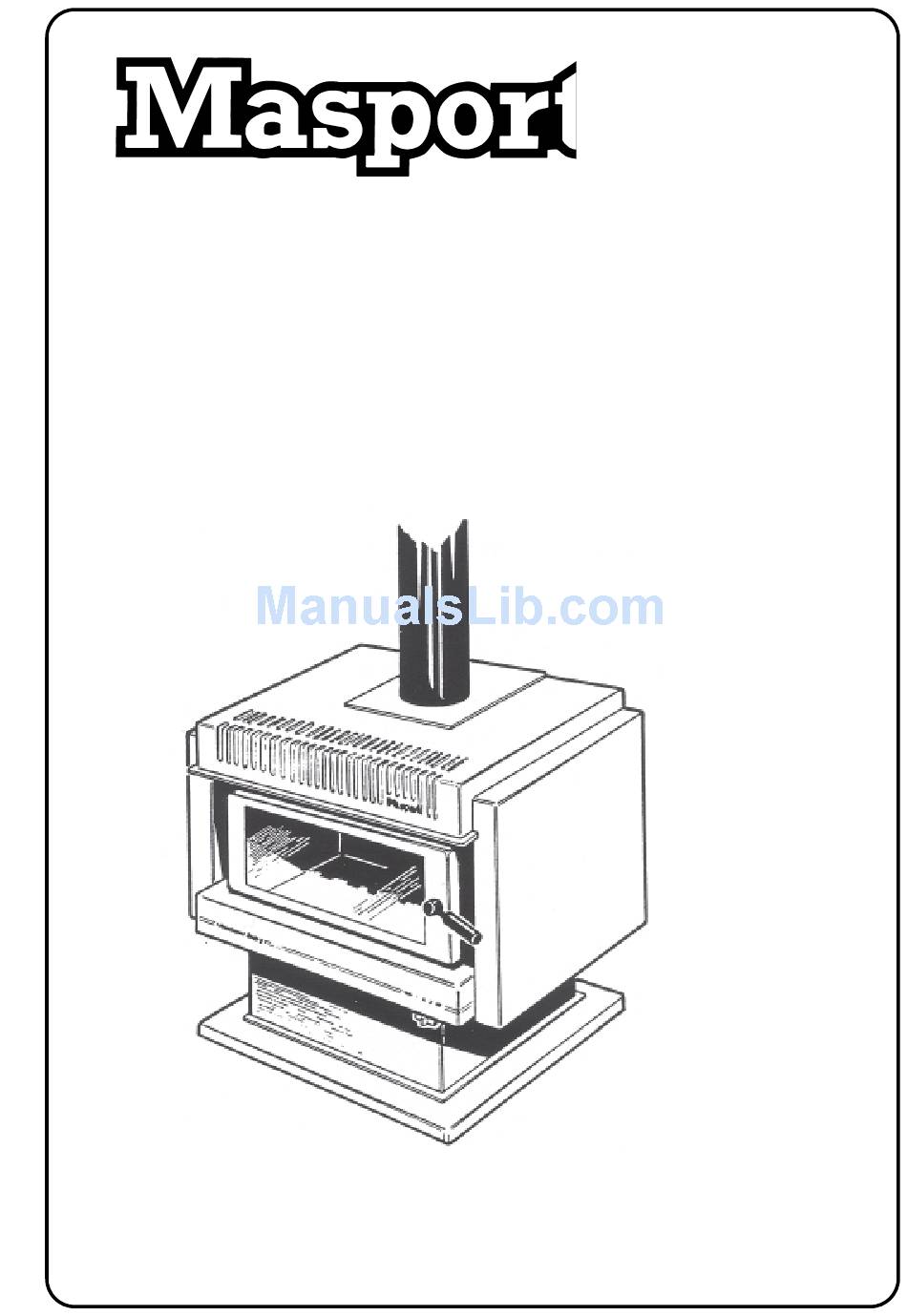

- Page 1 WOODFIRE INSTALLATING AND OPERATION MANUAL Part No. 584347...
-
Page 2: Table Of Contents
THE INSTALLATION AND OPERATING INSTRUCTIONS IN THIS MANUAL APPLY TO THE FOLLOWING MASPORT WOODFIRES:- BELVEDERE CASHMERE PANORAMA PANORAMA DE LUXE PANORAMA 2000 COLORADO PROVINCIAL 2, 3, 4. CONTENTS INTRODUCTION ................. 3 FREE STANDING MODELS - INSTALLATION UNPACKING ..................4 ASSEMBLY ..................4 POSITIONING .................. -
Page 3: Introduction
Zealand sources for guidance. Some areas in New Zealand have been designated as Clean Air Zones, and the MASPORT Cashmere and Provincial 2 have been approved for use in those areas, provided that: - No modifications are made to the appliances. -
Page 4: Free Standing Models - Installation Unpacking
FREE STANDING MQDELS (See page 12 for in-built models). ‘JNPAQKING After removal of the shipping carton, retrieve the door handle from the plastic bag just inside the flue socket, and fit it to the door. Also press the heat output control knob firmly onto its mounting which will be found adjacent to the wedge shaped heat control decal. - Page 5 MINIMUM WOODFIRE TO WALL DISTANCES (millimetres) WHEN FITTED WITH A 200mm DIAMETER SEMI-PERFORATED FLUE HEAT SHIELD With 900mm Internal Deflector Without Internal Deflector MODEL Belvedere Cashmere Panorama Deluxe 125* 275 225* 275 Panorama 2000 Colorado All clearances are baswed on the use of a recommended flue kit and semi-perforated flue heat shield RECOMMENDED FLUE OPTIONS 1.
-
Page 6: Positioning ..................................................................................... 5
POSITIONING YOUR FREE-STANDING WOODFIRE (Contd.) Detailed dimensional requirements for the flue installation are included with every MASPORT approved flue system. If a water heating accessory is to be fitted, a further positioning restraint is the need to be close to your hot water storage cylinder (See page 11). -
Page 7: Hearth Requirenents
In fact it is prudent to increase all dimensions by moving up to the next available size so that precise positioning of the woodfire on the hearth will not be needed. AUSTRALIA Belvedere Cashmere Panorama Deluxe 125* 465* 700 Panorama 2000 § Colorado §... -
Page 8: Corner Hearths
The minimum allowable values for dimension ‘E’ are given in the tables on pages 5 and 6. If ‘E’ is greater than the minimum value, naturally the overall hearth size requirements increase accordingly. Australia Zealand Belvedere Cashmere Panorama 1025 700 Panorama Deluxe § Panorama 2000 Colorado §... -
Page 9: Hearth Construction
INSTALLING THE FLUE You MUST use a flue system which is approved by MASPORT and which complies with AS 2918 - 1990 or NZS - 7421 1990 as appropriate. The flues and flue heat shields recommended in Australia are detailed in the table on page 5. -
Page 10: Final Assembly
‘Me short leg of the ‘L’ ties horizontal and faces the front of the firebox. It is not necessary to remove the secondary air tube in the Cashmere to fit or remove this casting. If necessary, lift it into position by angling one end up and over its ledge and moving it as far as possible toward the side of the firebox. -
Page 11: Installing A Water Heating Booster
INSTALLING A WATER HEATING BOOSTER Any MASPORT woodfire, except those installed in New Zealand Clean Air Zones, can be fitted with a water booster tube as all models have the mounting holes provided but covered with blanking plugs. -
Page 12: In-Built Models - Installation Identificanon
IN-BUILT MODELS - PROVINCIAL 2, 3 & 4 IDENTIFICATION The Provincial 2 is equipped with a secondary air tube and has firebricks. This model is approved for installation in New Zealand Clean Air Zones. Provincial 3 has a secondary air tube, but has a lower rear wall casting instead of firebricks. -
Page 13: Mantel-Slielf
An adjustable shielded flue pipe offset is available from MASPORT (Part 985406). If an offset is needed, fix it to the lower end of the assembled flue sections in the chimney and lift the flue assembly up while the firebox case is pushed back into the recess. -
Page 14: Basic Information
OPERATING INSTRUCTIONS BASIC INFORMATION DOOR HANDLES Swing the door open and shut with the handle in the 1 o’clock position. Latch the door shut by pushing in on the handle and turning it to the 4 o’clock position. HEAT OUTPUT CONTROL This control has a sliding action. -
Page 15: Operating Hints
• Do not modify your woodfire in any way without obtaining written permission from the Manufacturers. • Do not use the woodfire if the glass is broken. Replace it only with the correct ceramic glass, available from your MASPORT dealer. -
Page 16: Maintenance
MAINTENANCE ASH REMOVAL This should be necessary only very occasionally. Simply shovel out any excess, always leaving a bed of sand or ash to the tops of the ribs. CLEANING THE GLASS Usually a good hot fire will bum away any deposits left from a long slow bum. If desired, a proprietary oven cleaner can be used.
