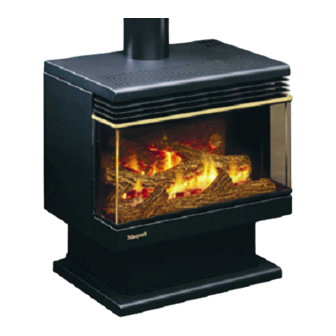

Masport MG 3000 STD NG Owners & Installation

Masport MG 3000 STD NG Owners & Installation

Gas fireplaces
Hide thumbs Also See for MG 3000 STD NG:

Advertisement

Owners &
Installation
Boston, Odessa &
Sante Fé Gas Fires
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
For assistance or additional information
consult an authorized technichian, or your
Masport Gas Fire Dealer.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this appliance
Installation and service must be performed by
authorized personnel.
Metal Fab Industies Limited - New Zealand
PO Box 58 473
Greenmount
Auckland
FOR YOUR SAFETY
What to do if you smell gas
Do not try to light any
appliance
Do not touch any
electrical switch
Do not use any phone
in your building
Immediately close the
shutoff valve behind the
heater
Call the technician
Metal Fab PTY - Australia
Unit 2, 205 Abbotts Road
Dendenong South
Victoria 3175
591353

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG 3000 STD NG and is the answer not in the manual?

Questions and answers

Summary of Contents for Masport MG 3000 STD NG

  • Page 1 For assistance or additional information • Do not touch any consult an authorized technichian, or your electrical switch Masport Gas Fire Dealer. • Do not use any phone FOR YOUR SAFETY in your building • Do not store or use gasoline or other...
  • Page 2 MASPORT BOSTON (Flued), ODESSA (Flued) AND SANTA FE (Flueless) GAS FIRES. THE MODELS COVERED ARE:- MG 3000 STD NG, and MG 3000 FLS NG for use with Natural Gas MG 3000 STD LP, and MG 3000 FLS LP for use with Liquid Propane Gas (LPG)
  • Page 3: Table Of Contents

    Statutory Regulations (e.g. AS 5601 (AG- 601), NZS 5261). Any shortcomings in the appliance and flue installation will be the responsibility of the installer, and Masport Ltd will not be accountable for any such failings or their consequences.
  • Page 4: Positioning The Heater

    Note: Clearances are for fire hazard only. For durability of finishes or surfaces you should contact the relevant manufacturer for their specification. MASPORT accepts no responsibility for the deterioration of surfaces or finishes. • Avoid positions where curtains or furniture might accidentally come too close to the heater.
  • Page 5: Minimum Installation Clearances

    Alcove installation not permitted. NOTE: The clearances shown are for fire hazard only. For durability of finishes or surfaces you should contact the relevant manufacturer for their specification. MASPORT accepts no responsibility for the deterioration of surfaces or finishes. INSTALLATION...
  • Page 6: Electricity

    The Santa Fe (flueless) models use a flexible hose and bayonet. The bayonet can be connected to an AGA approved G 1/2” floor bayonet socket. In all cases a shut-off valve should be installed directly behind the heater to facilitate isolation of the heater for servicing.
  • Page 7: Seismic Restraint

    SEISMIC RESTRAINT New Zealand regulations require that flued gas heaters be secured to prevent shifting in the event of an earthquake. This is best done by fastening the heater to the floor right through any floor protector that may be fitted. Fasten with two screws not less than 12 gauge or the equivalent in coach screws or toggle fasteners.
  • Page 8 • Turn the control fully anticlockwise to the ‘HIGH’ position and the fire will light at full heat. There may be a strong smell the first time the logs are fired but this will soon disappear. • After ten minutes, set the control to give the desired heat output. •...
  • Page 9: Servicing

    SERVICING INSTRUCTIONS Servicing must be carried out only by authorised personnel. Minor adjustments can be made with the heater in its normal operating position, but it will be found more convenient to move the heater away from the wall for major work. If it is necessary to move the heater:- •...
  • Page 10 4. On the Odessa models, lift the glass retainers at each side up and out and lift the glass clear. 5. On the other models, lift the front glass clear, being careful not to dislodge the side glasses. Then lift each side glass clear. This will reveal a glass sealing rope, a backing strip and a spring at the rear edge of each side glass.
  • Page 11: Routine Maintenance

    This is not unique to Masport gas fires. If the surface discolours or blisters, simply scuff any loose paint from the firebox and lightly re-spray with Masport high temperature paint.
  • Page 12: Trouble Shooting

    The following table lists possible problems and their likely causes. Most of these will require a professional serviceman and we recommend that this work be performed by an Authorised Technician. If a problem cannot be solved after referring to this table, please call your Masport gas fire Dealer for help. PROBLEM...
  • Page 13: Cleaning Instructions

    PROBLEM POSSIBLE CAUSE(S) SOLUTION A thin coating of black soot Combustion air supply restricted. Clean all primary and secondary forms inside the glass. air passageways. Over-supply of gas. Adjust gas delivery pressure at test point. Logs out of position. Arrange logs correctly. A white coating forms inside Residues of new logs being Follow glass cleaning directions...
  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE. DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE. DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION. TO LIGHT THE PILOT:- •...
  • Page 15: Annual Service Record

    • If a different room temperature is desired, turn the control knob to a higher number for increased heat, or to a lower number for a lower room temperature. • Once the comfortable room temperature has been established, it is usually not necessary to run the heater at any other control knob setting.
  • Page 16 MASPORT LTD. 1/37 MT WELLINGTON HIGHWAY. P.O. Box 14-349 Panmure, Auckland New Zealand. A.G.A. Approvals: MG 3000 STD NG, MG 3000 STD LP — Both Certificate No 5325. MG 3000 FLS NG, MG 3000 FLS LP — Both Certificate No 5545. Installed by:-...
